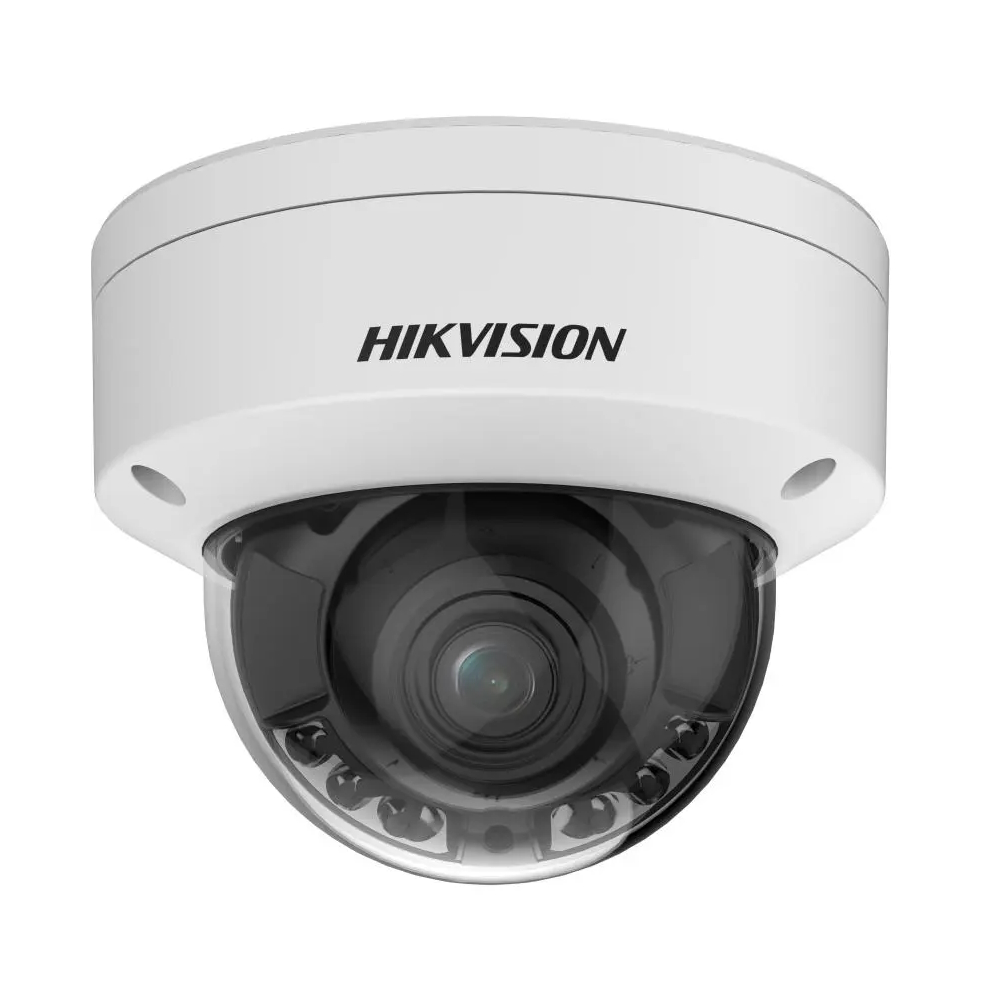

Hikvision DS-2CD2787G2HT-LIZS

Hikvision DS-2CD2787G2HT-LIZS Pro-series ColorVu AcuSense Ai (Artificial Intelligence) 4K 8MP PoE IP Hybrid-Light (40m IR + 40m Warm-White-Light) Ultra-Low-Light (0.0028 Lux Colour) 130dB True-WDR Weatherproof Vandalproof Dome Camera with 2.8-12mm Motorized Zoom Lens – Audio In/Out + Alarm In/Out

  • Hikvision DS-1280ZJ-DM45

    Hikvision DS-1280ZJ-DM45 weatherproof junction box for dome cameras

This product is currently unavailable.

Hikvision DS-2CD2787G2HT-LIZS Pro-series ColorVu AcuSense Ai (Artificial Intelligence) 4K 8MP PoE IP Hybrid-Light (40m IR + 40m Warm-White-Light) Ultra-Low-Light (0.0028 Lux Colour) 130dB True-WDR Weatherproof Vandalproof Dome Camera with 2.8-12mm Motorized Zoom Lens – Audio In/Out + Alarm In/Out

Features :-

  • ColorVu technology provides vivid and colorful images 24/7
  • Day and night switching
  • H.265+, H.265, H.264+, H.264, and MJPEG video compressions
  • Triple streaming
  • Scalable Video Coding (SVC) for H.264 and H.265 encoding
  • Slow shutter support
  • 4x Optical zoom
  • Three-axis angle adjustments
  • Smart Hybrid Light: advanced technology with long range
  • ≥52 dB SNR
  • 130 dB wide dynamic range
  • 3D-DNR, backlight compensation, and highlight compensation
  • Image settings include; rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
  • Region of interest supports one fixed region for main stream and sub-stream separately
  • Analytics include; motion detection (supports human and vehicle targets classification), video tampering alarm, exception, scene change detection, face capture, and perimeter protection (line crossing detection, intrusion detection, region entrance detection, region exiting detection)
  • General functions include; anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, and pixel counter
  • Hardware and software reset
  • Alarm input and output
  • Audio input and output
  • Environment noise filtering

Camera

  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

  • Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
  • Lens Mount: Integrated
  • Iris Type: Fixed
  • Aperture: Max. F1.2
  • Depth Of Field: 1 m to ∞

Illuminator

  • Supplement Light Type: IR,White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264,

    *Third stream is supported under certain settings.

  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • SNR: ≥ 52 dB
  • Wide Dynamic Range (WDR): 130 dB
  • Privacy Mask: 4 programmable polygon privacy masks

Interface

  • Ethernet Interface: 1 * RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm1 input: 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key: Yes

Event

  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
  • Smart Event: Scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output

Deep Learning Function

  • Face Capture: Yes
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

General

  • Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.9 W
  • Material: Metal
  • Dimension: Ø141 mm × 112 mm (Ø5.55″ × 4.41″)
  • Package Dimension: 244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
  • Weight: Approx. 820 g (1.8 lb.)
  • With Package Weight: Approx. 1200 g (2.6 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7

  • Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU
  • Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
