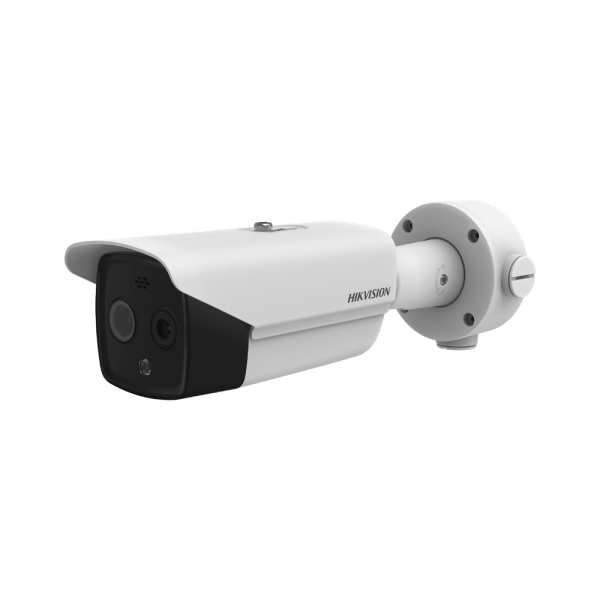

Hikvision DS-2TD2628-7/QA

Hikvision DS-2TD2628-7/QA HeatPro Series H265 Thermal & Optical Bi-spectrum Network Bullet Camera – AI Features – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 6.9mm Thermal Fixed Lens + 6.4mm Optical Fixed Lens – 30m IR + 30m White Light Range – Strobe + Siren – Audio & Alarm Input / Output

  • Hikvision DS-1275ZJ-S-SUS

    Hikvision DS-1275ZJ-S-SUS Stainless Steel Weatherproof Vertical Pole-Mount Bracket / Adapter - White

  • Hikvision DS-1276ZJ-SUS

    Hikvision DS-1276ZJ-SUS Stainless Steel Weatherproof Corner-Mount Bracket

This product is currently unavailable.

Hikvision DS-2TD2628-7/QA HeatPro Series H265 Thermal & Optical Bi-spectrum Network Bullet Camera – AI Features – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 6.9mm Thermal Fixed Lens + 6.4mm Optical Fixed Lens – 30m IR + 30m White Light Range – Strobe + Siren – Audio & Alarm Input / Output

Features :-

  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Thermal Module

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 256 x 192
  • Pixel Pitch: 12 μm
  • Spectral Range: 8 μm to 14 μm
  • NETD: < 40 mK (@ 25 °C, F# = 1.0)
  • Focal Length: 6.9 mm
  • IFOV: 1.74 mrad
  • Field Of View: 24.9° × 18.7° (H × V)
  • Min. Focusing Distance: 1.3 m
  • Aperture: F1.0
  • Digital Zoom: × 2, × 4

Optical Module

  • Image Sensor: 1/2.7″ Progressive Scan CMOS
  • Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
  • Shutter Speed: 1s to 1/100,000s
  • Focal Length: 6.4mm
  • Field Of View: 53° × 28° (H × V)
  • Aperture (Range): F1.6
  • WDR: 120 dB

Image Effect

  • Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

  • IR Distance: Up to 30 m
  • IR Intensity And Angle: Automatically adjusted

Audible And Visual Alarm

  • White Light Range: Up to 30 m
  • Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
  • Audio Alarm: Yes, for two types of audible alarm (VCA and Temperature Exception); 2 preset voice alerts (one for each); 6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: – 20 °C to 150 °C (- 4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (± 14.4 °F)

Video And Audio

  • Main Stream: Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240); Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240); Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
  • Video Compression: Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG;
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
  • Simultaneous Live View: Up to 20 channels
  • User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0 +, Firefox 52.0 +

Interface

  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interface; Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output: Linear level, impedance: 600 Ω
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.; 1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

  • Web Client Language: 32 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • Power Consumption: 12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
  • Protection Level: IP66 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection
  • Dimensions: 321.3 mm × 106.1 mm × 107 mm (12.65″ × 4.18″ × 4.21″)
  • Approx. 1.76 kg (3.88 lb)
