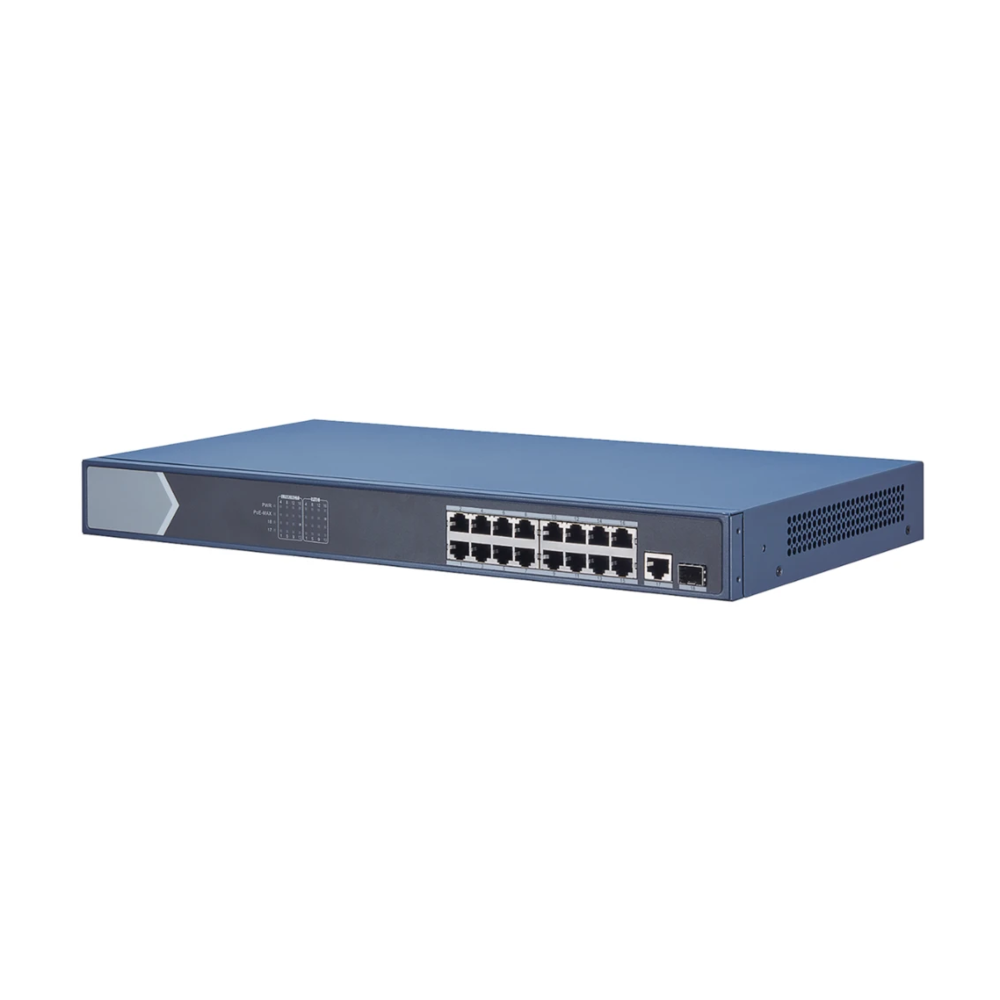

Hikvision DS-3E0518P-E

Hikvision DS-3E0518P-E Pro-series L2 1U Rackmount Gigabit Unmanaged Network PoE Switch with 16x GbE (10 / 100 / 1000Mbps) PoE Ports + 1x GbE (10 / 100 / 1000Mbps) Uplink Port + 1x Gb SFP Uplink Port – 230W PoE Power Output

Hikvision DS-3E0518P-E Pro-series L2 1U Rackmount Gigabit Unmanaged Network PoE Switch with 16x GbE (10 / 100 / 1000Mbps) PoE Ports + 1x GbE (10 / 100 / 1000Mbps) Uplink Port + 1x Gb SFP Uplink Port – 230W PoE Power Output

Features:-

  • Layer 2 network switch designed for video data transmission
  • 16 x 10/100/1000 Mbps Ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
  • IEEE 802.3 af & at high POE power supply
  • Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience.

Network Parameters

  • Ports: 16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • MAC Address Table: 8K
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.784 Mpps
  • Internal Cache: 4.1 Mbits

PoE Power Supply

  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: Ports 1 to 16
  • Max. Port Power: 30 W
  • PoE Power Budget: 230 W

General

  • Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
  • Shell: Metal material
  • Gross Weight: 3.53 kg (7.78 lb)
  • Net Weight: 2.67 kg (5.89 lb)
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Consumption In Idle: 20 W
  • Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption: 250 W

Approval

  • EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 11)
  • Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2021)
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2010)
