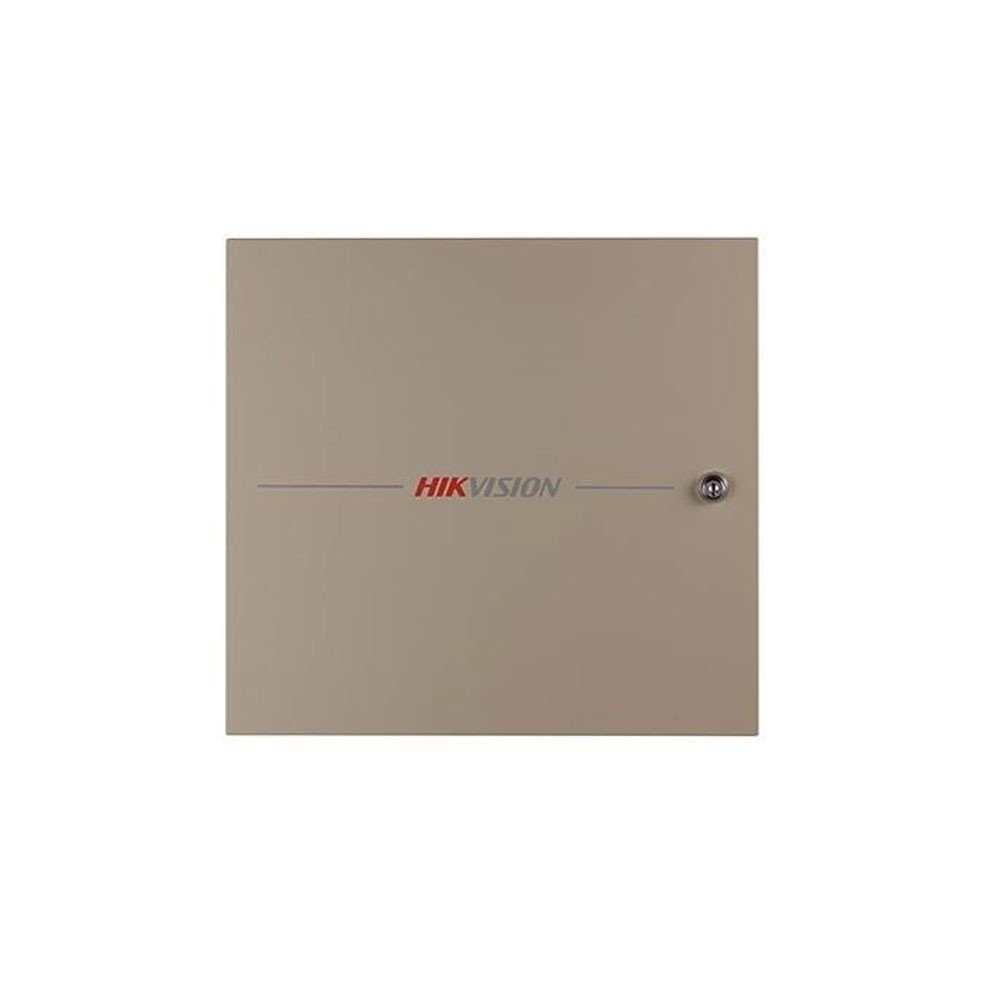

Hikvision DS-K2604-G 4-Door IP Access Control Panel


Hikvision DS-K2604-G 4-Door IP Access Control Panel

Features :-

  • 32-bit high-speed processor
  • TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
  • The recognition and storage of card number with maximum 20 digits
  • Massive storage with 100,000 (can be expended to 200,000) cards information and 300,000 (can be expended to 600,000) access control events
  • Supports multi-door interlocking function, anti-passback function, multi-card function, first card function, super card and super password function
  • Online upgrade function and online remote control of the doors
  • Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
  • Short circuit attempts alarm and open circuit attempts alarm
  • Supports zone alarm input
  • Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
  • Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
  • Various indicators to show different device status
  • Supports time synchronization via NTP, manual or automatic method
  • Supports standby battery
  • Watchdog for device running status detection
  • Data can be permanently saved when the access controller is powered off

Device Interfaces :-

  • Output Interface: Lock Relay × 4, Alarm Relay × 4
  • Uplink Communication Interface: TCP/IP Network Interface and RS-485 Interface
  • Input Interface: Alarm Input × 4, Door Sensor × 4, Exit Button × 4, Case Input × 8, Tamper Alarm × 1
  • Downlink Communication Interface: RS-485 and Wiegand (W26 / W34)

Device Interface

  • Uplink Communication Interface: TCP/IP, RS-485
  • Downlink Communication Interface: RS-485, Wiegand(W26/W34)
  • Accessible Card Reader: DS-K2601: 2 Card Readers (RS485 Interface), 2 Card Readers (Wiegand Interface) DS-K2602: 4 Card Readers (RS485 Interface); 4 Card Readers (Wiegand Interface) DS-K2604: 8 Card Readers (RS485 Interface); 4 Card Readers (Wiegand Interface)
  • Built-In ClockYes


  • Working Temperature: -20°C to +65°C (-4°F to +149°F)
  • Power Dissipation: (With Load) DS-K2601: ≤50W DS-K2602: ≤100W DS-K2604: ≤100W
  • Power Dissipation:  (Without Load) ≤4W
  • LED Indicator: Power Supply Status, Communication Status, Working Status
  • Dimensions (L×W×H): 370mm x 345mm x 90 mm (14.6” x 13.6” x 3.5″)
  • Processor: 32-bit
  • Storage: Cards: 100,000 Access Control Events: 300,000
  • Input Interface: DS-K2601: Alarm Input × 4, Door Sensor × 1, Exit Button × 1, Case Input×2, Tamper Alarm × 1 DS-K2602: Alarm Input × 4, Door Sensor × 2, Exit Button × 2, Case Input×4, Tamper Alarm × 1 DS-K2604: Alarm Input × 4, Door Sensor × 4, Exit Button × 4, Case Input×8, Tamper Alarm × 1
  • Output Interface: DS-K2601: Lock Relay × 1, Alarm Relay × 2 DS-K2602: Lock Relay × 2, Alarm Relay × 4 DS-K2604: Lock Relay × 4, Alarm Relay × 4
