Raysharp RS-CH4122M4FEE-A20PW

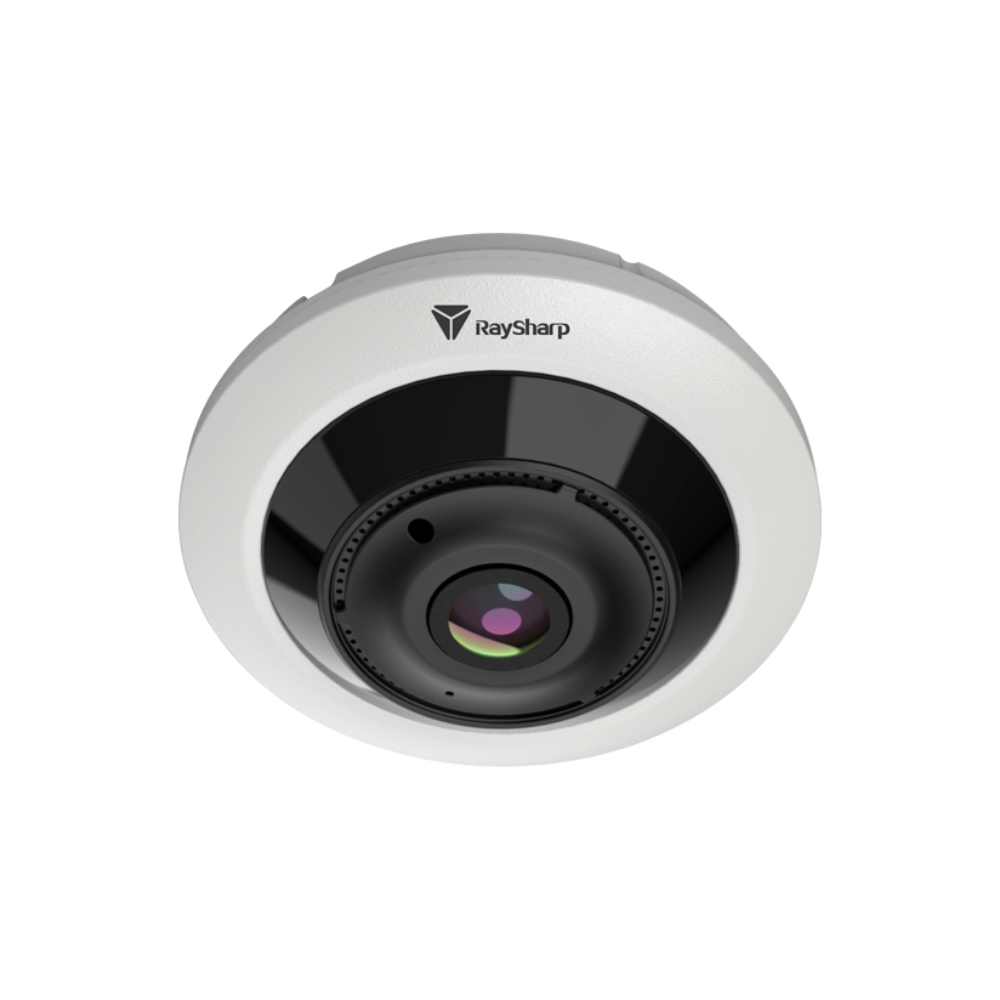

Raysharp RS-CH4122M4FEE-A20PW Pro-series 4K 12MP PoE IP IR (10m) DWDR Weatherproof Vandalproof 360° Fisheye Dome Camera – Built-in Mic + Speaker – 2-Way Audio
SKU: RS-CH4122M4FEE-A20PW
Categories: CCTV / Surveillance, IP 360-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 12MP, 2-Way Audio, 360 Degree, 4K, Built-in Mic, Camera, Dome Camera, Fisheye, H265, IP, IP66 Rated, IR, Network, PoE, Pro Series, Raysharp, Speaker, Weatherproof
Raysharp RS-CH4122M4FEE-A20PW Pro-series 4K 12MP PoE IP IR (10m) DWDR Weatherproof Vandalproof 360° Fisheye Dome Camera – Built-in Mic + Speaker – 2-Way Audio
Key Features :-
- Imaging Device: 1/2.3″ Progressive Scan CMOS
- Effective Pixels: 12MP – 4000 (H) * 3000 (V)
- Min. Illumination: Color 0.03lux @ F2.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: 2.0 mm
- Angular Field of View: Horizontal: 360°
- IR Viewable Length: Up to 10m
- Wide Dynamic Range: DWDR
- Audio: 2-Way -> Built-in Mic + Speaker
- Ingress Protection: IP66
- Operating Conditions: -35～+60°C/less than ≤ 95% RH
- Supports ONVIF (Profile S, G, T)
| Model | RS-CH4122M4FEE-A20PW | |
| Resolution | 4000(H) × 3000(V) | |
| Image Sensor | 1/2.3″ Progressive CMOS | |
| Min. Illumination | Color 0.03lux @ F2.0 (AGC ON) ; B/W 0 lux @ IR ON | |
| Shutter | 1/5 ~ 1/20000s | |
| Lens | 2.0mm, horizontal FOV 180°（wall mount），360°（ceiling mount） | |
| F No. | F 2.0 ±5% | |
| Day & Night | IR cut filter with auto switch（Day/Night/Auto/Image/Schedule） | |
| WDR | DWDR | |
| Video Compression | H.265/H.264/H.265+/H2.64+/MJPEG | |
| Video bit rate | 256Kbps ~ 16Mbps | |
| Triple Stream | yes | |
| Frame Rate | Mainstream: 4000×3000@15fps ， substream: 1280x960P@15fps，640*480@15fps Mobilestream:640*480@15fps Mainstream: 3000×3000@25fps substream:1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps Mainstream: 2560×2560@25fps ， substream: 1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps Mainstream: 2160×2160@25fps ， substream: 1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps Mainstream: 1520×1520@25fps ， substream: 1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps Mainstream: 1080×1080@25fps ， substream: 1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps Mainstream: 720×720@25fps ， substream: 1080×1080@25fps,720×720@25fps,480×480@25fps Mobilestream:480×480@25fps |
|
| Smart Feature | NA | |
| BLC | Support | |
| ROI | Support | |
| Video Analytics | NA | |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP, NTP,UPnP,SNMP,HTTPS,FTP |
|
| System Compatibility | ONVIF( Profile S, G，T) | |
| Interface | RJ45 10M / 100M | |
| Led | 3pcs(SMD) | |
| IR Range | Up to 10m | |
| SD storage | Micro SD slot, up to 256GB | |
| Alarm Trigger | Yes | |
| Microphone | Yes | |
| Speaker | Yes | |
| Video Output: | NA | |
| Reset Button | Yes | |
| PoE | yes | |
| Water Proof | IP66 | |
| Power Supply | DC 12V/POE | |
| Consumption | 3.8-9.6W | |
| Dimension | Ø120*55mm | |
| Weight | appr 400g | |
| Operating Temperature | -35～+60°C | |
