Networking Products, Wireless Access Points, Wireless Bridge
TP-Link Omada EAP215-BRIDGEKIT(V3.2)
TP-Link Omada EAP215-BRIDGEKIT(V3.2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3af PoE Input – 2* Passive PoE Injectors Included
SKU: EAP215-BRIDGEKIT(V3.2)
Categories: Networking Products, Wireless Access Points, Wireless Bridge
Tags: 5GHz Wireless, EAP Mesh, IP, IP65 Rated, Kit, Network, Omada, Omada Mesh, Outdoor, PoE, TP-Link, WAP, Weatherproof, Wireless, Wireless Access Point, Wireless Bridge
TP-Link Omada EAP215-BRIDGEKIT(V3.2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3af PoE Input – 2* Passive PoE Injectors Included
Key Features :-
- Up to 3.1 mi (5 km) Transmission Distance*
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
- Unique Design for Instant Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.

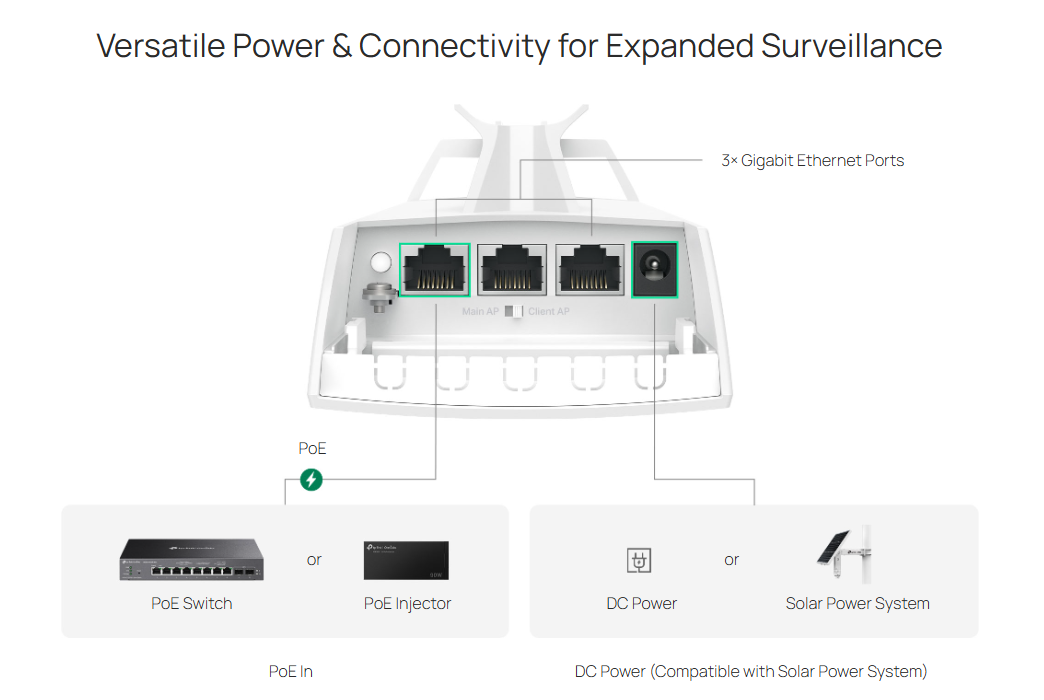

- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
- Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| DIP Switch | Role Switch |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE |
| Max. Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 14.0 dBi Horizontal:43°, Vertical: 18° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | Supports up to 1:4 multi-bridge connections. |
| Coverage | 5000m(16400ft) |
| Transmission Distance | 5,000 m (3.1 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2×2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz band3, EIRP)• FCC: <23.5dBm (5 GHz band1) <25dBm (5 GHz band4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP215-Bridge KIT • Installation Guide • Mounting Kit |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
