Uniview IPC3618SB-ADF28KMC-I0-BK

Uniview IPC3618SB-ADF28KMC-I0-BK Prime-Series Tri-Guard Active-Deterrence AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4K 8MP PoE IP EXIR (30m) Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.003 Lux Colour) Weatherproof Eyeball BLACK Turret Camera with 2.8mm Fixed Lens – with Built-in Audio Mic + Speaker + Strobe + Siren

  • Uniview TR-JB03-G-IN-Black

    Uniview TR-JB03-G-IN-Black Weatherproof Aluminium Alloy BLACK Junction-Box For IPC32X, IPC31X and IPCD1XX Series Fixed BLACK Dome / Turret Cameras

This product is currently unavailable.

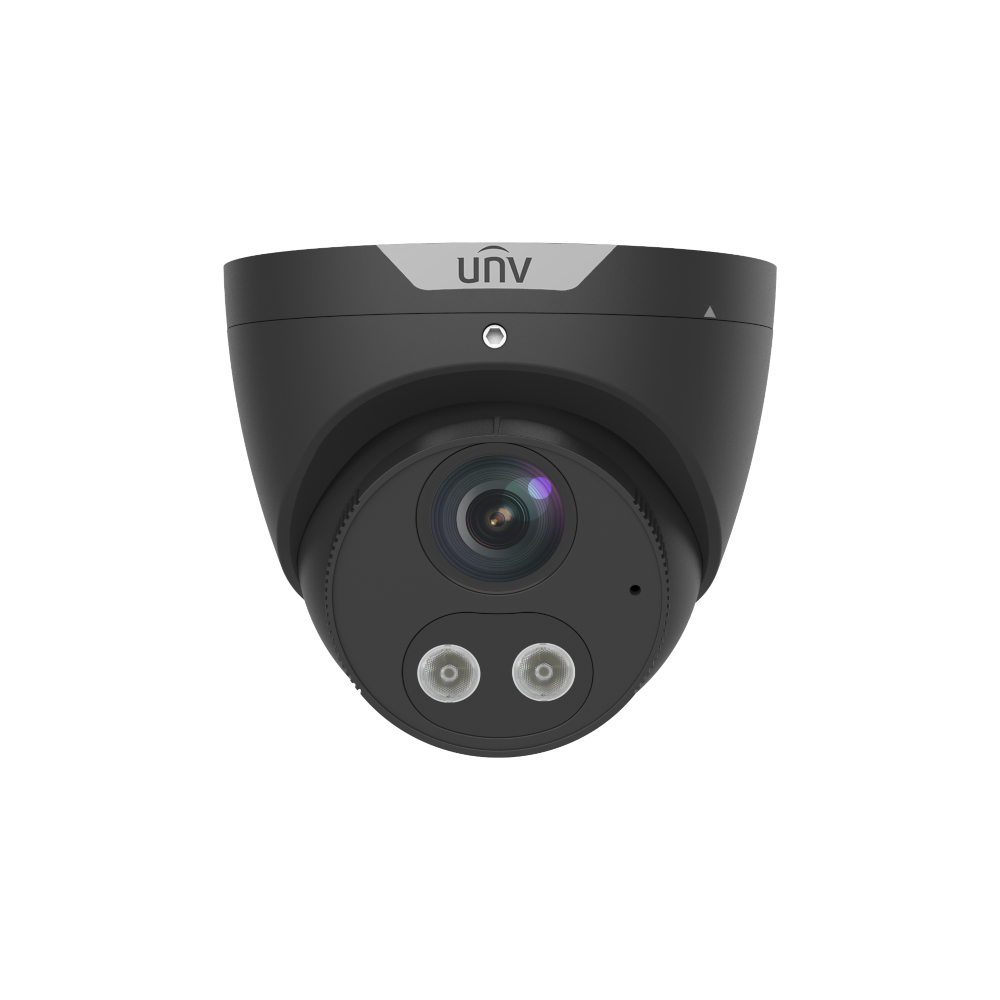

Uniview IPC3618SB-ADF28KMC-I0-BK Prime-Series Tri-Guard Active-Deterrence AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4K 8MP PoE IP EXIR (30m) Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.003 Lux Colour) Weatherproof Eyeball BLACK Turret Camera with 2.8mm Fixed Lens – with Built-in Audio Mic + Speaker + Strobe + Siren

Features :-

  • High quality image with 8MP, 1/2.8″CMOS sensor
  • 8MP (3840*2160) @ 20fps; 5MP (3072*1728) @ 30/25fps; 4MP (2560*1440) @ 30/25fps; 2MP (1920*1080) @ 30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
  • Face capture, automatic selection of best snapshots, support face detection masked area
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • Uniview Smart Intrusion Prevention features

Camera

  • Sensor: 1/2.8″, 8.0 megapixel, progressive scan, CMOS
  • Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON); 0Lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
  • WDR: 120dB
  • S/N: >56dB

Lens

  • Lens type: 2.8mm @ F1.6
  • Angle of view (H) 106.7°
  • Angle of View (V) 57.1°
  • Angle of View (O) 115.7°

DORI

  • DORI Distance: Detect: 86.9m; Observe: 34.8m; Recognize: 17.4m; Identify: 8.7m

 Illuminator

  • IR Range: Up to 30m (98ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline profile, Main profile, High profile
  • Frame Rate: Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; 640*360,Max 30fps; D1 (720*576), Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~16 Mbps
  • U-code: Support
  • ROI: Up to 8 areas
  • Video Stream: Triple streams
  • OSD: Up to 8 OSDs
  • Privacy Mask: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
  • Digital Noise Reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
  • Dewarping: N/A
  • HLC: Supported
  • BLC: Supported
  • Defog: Digital Defog

Audio

  • Audio Compression: G.711
  • Audio Bitrate: 64 Kbps
  • Two-way audio: Supported
  • Suppression: Supported
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256 GB
  • Network Storage: ANR, NAS(NFS)

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T) , API,SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
  • Client: EZStation; EZView; EZLive
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

  • Audio I/O: N/A
  • Alarm I/O: N/A
  • RS485: N/A
  • Built-in Mic: Support
  • Built-in Speaker: Support
  • WIFI: N/A
  • Network: 1 RJ45 10M/100M Base-TX Ethernet
  • Video Output: N/A

Certifications

  • EMC: FCC CFR 47 Part 15; EN 55032:2015; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3-2013
  • Safety: IEC 62368-1; EN 62368-1; UL 62368-1
  • Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

  • Power: DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 7.5W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (Ø x H): Φ111 x 95mm (Φ4.4” x 3.7”)
  • Weight: 0.43kg (0.948lb)
  • Material: Metal + Plastic
  • Working Environment: -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 4KV
  • Reset Button: N/A
  • Protection Ingression protection: IP67
