Utepo UTP1201XP-HD

Please login for price

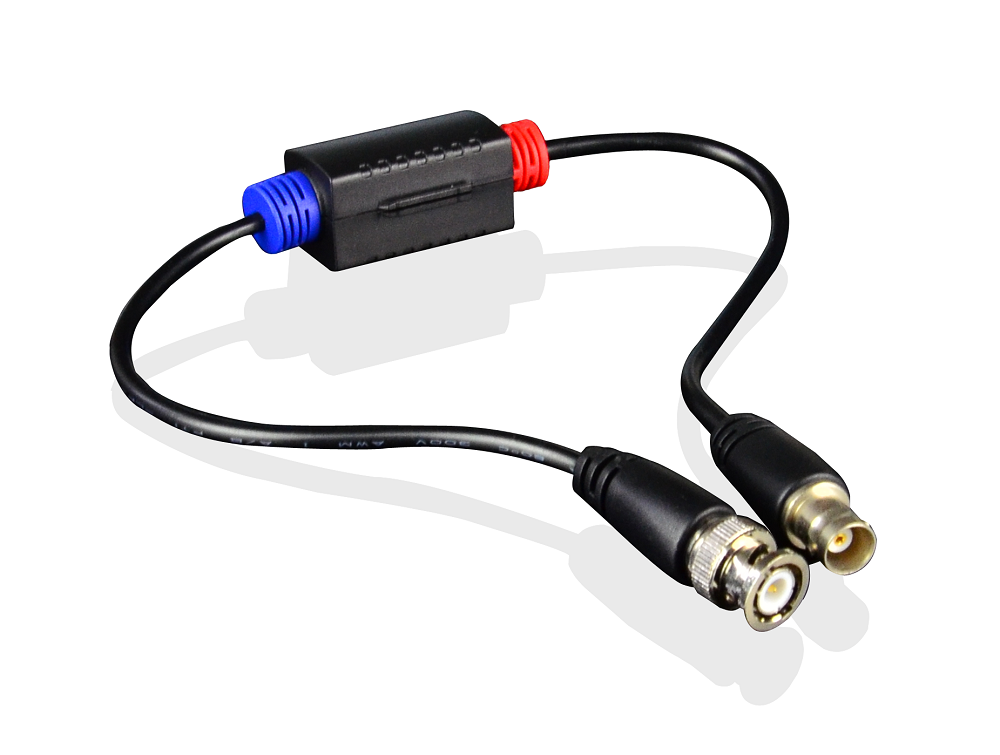

Utepo UTP1201XP-HD Slimline HD-Video Anti-Interference Device – Ground Loop Isolator – BNC In / BNC Out

SKU: UTP1201XP-HD Categories: , , Tags: , , , ,


Features: –

  • Power requirement: No power required, easy installation
  • Functions: Minimize the common-mode interference and high frequency interference of the signal distortion caused by ground loop video, effectively eliminate the split, interference and scrolling of the picture
  • Passive, no power required
  • Eliminates Video distortion caused by ground loops circuit
  • Eliminates issues as image tearing, cross-talk, rolling and so on
  • Fully compatible with HDCVI, HDTVI, AHD and Analog Video signals
  • Built-in 800v insulated voltage
  • Excellent anti-interference capability, superior lighting-protection, ESD and EFT capability
  • Safety: interference minimizing、efficient lightning-proof、free from static electricity、transient surge protection for line
  • Design; ABS plastic injection-wide,waterproof, compact
  • Installation: Double-end cable, no extra connection cables, easy to installation

ground loop isolator


ground loop isolator

Item Description
Properties Insertion loss 0.5dB
Frequence response 5Hz~10MHz
Input resistance 75Ω
Output resistance 75Ω
Isolation voltage 800V (Minimum)
Insulation resistance
Protection ESD Contact Discharge:6000V

Air Discharge:8000V
Per IEC61000-4-2

Surge protection 4KV 10/700us, Per: IEC6100-4-5
Dimension (L×W×H) Body: 55mm*30mm*22mm; total length: 550mm
ABS Plastic
Environmental Working temperature -20℃-55℃
Storage temperature -40℃-70℃
Humidity 0%-95%

Additional information

Weight 0.077 kg
Dimensions 5.5 × 3 × 2.2 cm
