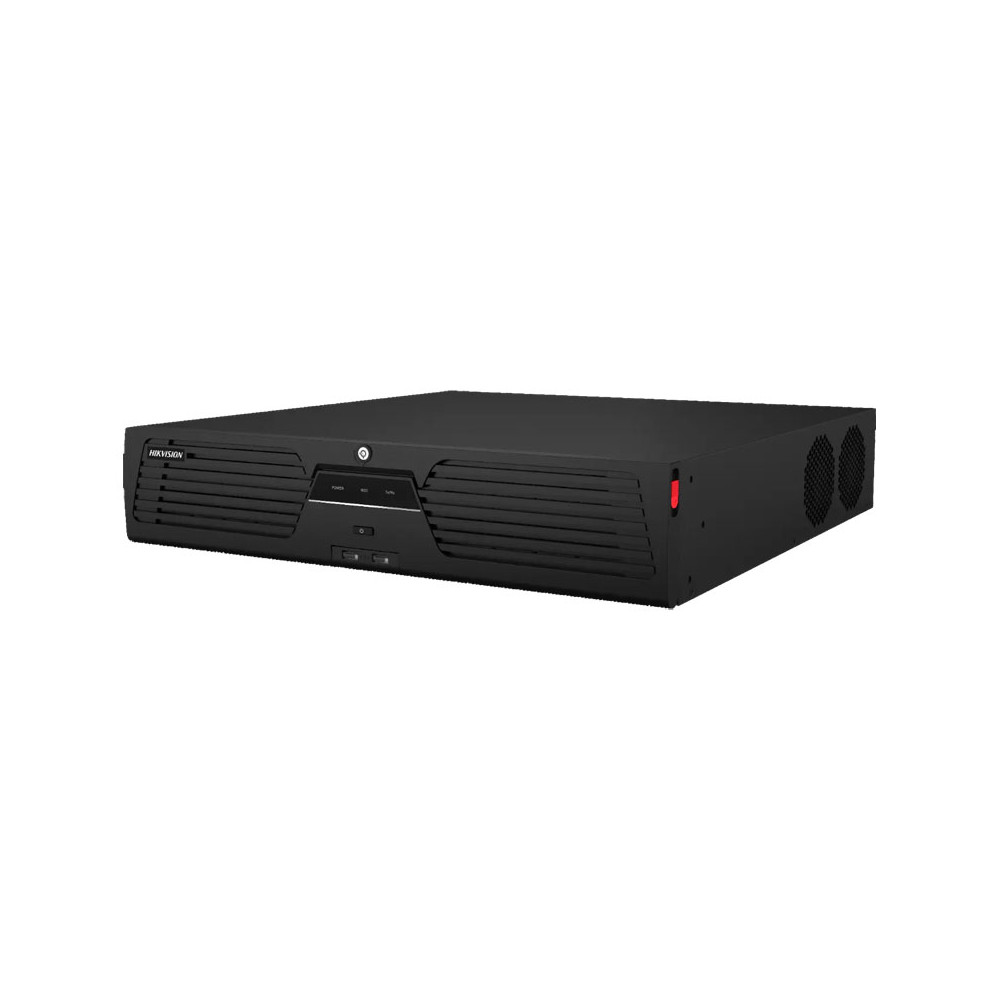

Hikvision DS-9664NI-M8-8TB Ultra-series 64-channel 8K 2U NVR – with 8TB Storage HDD – Supports RAID – 400Mbps Bandwidth

Features :-

  • Up to 64-ch IP camera inputs
  • Up to 2-ch @ 32MP / 2-ch @ 24MP / 4-ch @ 12MP / 8-ch @ 8MP / 16-ch @ 4MP / 32-ch @ 1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Hikvision Online Storage Calculator Tool

Hikvision Product-Link -> DS-9664NI-M8

Video And Audio

  • IP Video Input: 64-ch
  • Incoming Bandwidth: 400 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 × 4320) / 30 Hz, 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • HDMI 2 Output: 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

    *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

  • VGA 1 Output: 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • VGA 2 Output: 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output: 2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

  • Decoding Format: H.265+ / H.265 / H.264+ / H.264
  • Recording Resolution: 32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
  • Synchronous Playback: 16-ch
  • Decoding Capability: 2-ch @ 32MP (30 fps) + 2-ch @ 8MP (30 fps) / 10-ch @ 8MP (30 fps) / 20-ch @ 4MP (30 fps) / 40-ch @ 1080p (30 fps)
  • Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM

Network

  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
  • SATA: 8 SATA interfaces supporting hot-plug
  • ESATA: 1 eSATA interface
  • Capacity: Up to 16 TB capacity for each disk
  • Alarm In/Out: 16/9
  • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output

General

  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: ≤ 50 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 2U chassis
  • Dimension (W × D × H): 445 × 465 × 93 mm ( 17.5″× 18.3″ × 3.7″)
  • Weight: ≤ 10 kg (without HDD, 22 lb.)

Certification

  • Obtained Certification: CE, FCC
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
