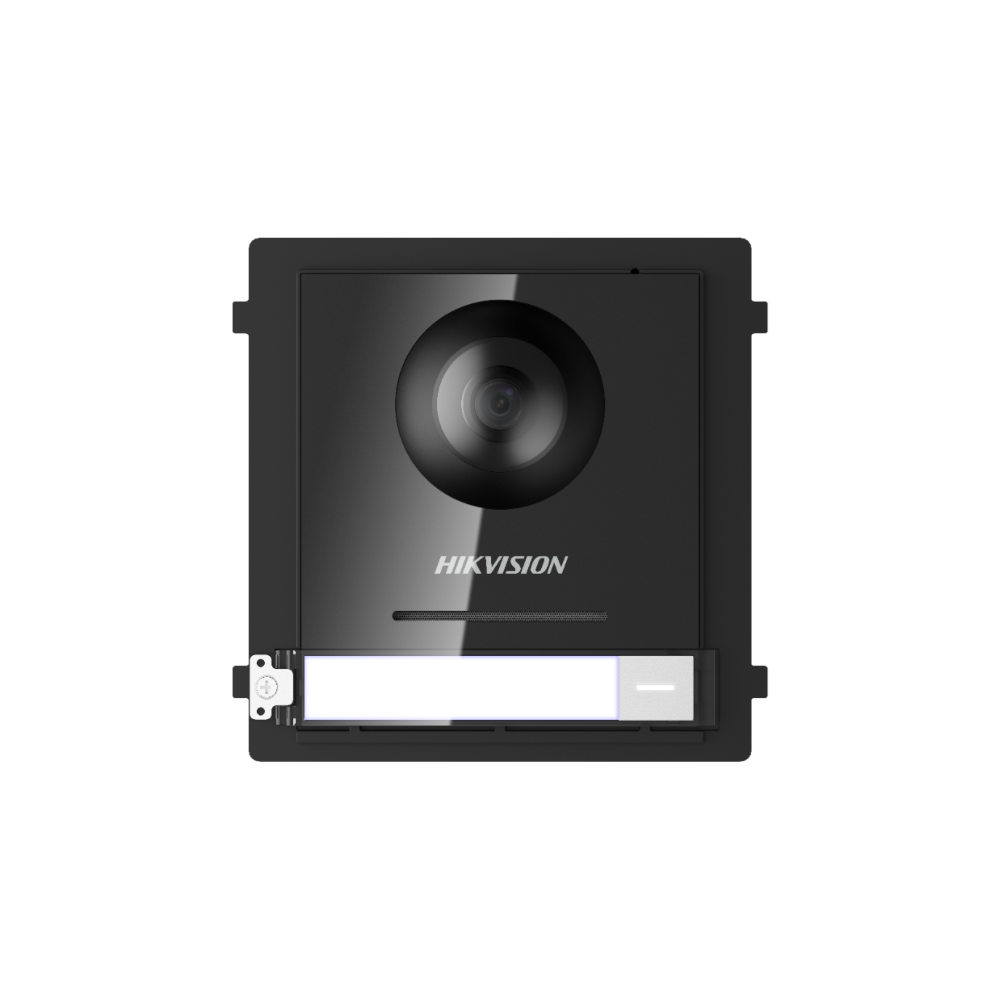

Hikvision DS-KD8003-IME2 2-Wire IP Weatherproof Outdoor Intercom 2MP 1080P Camera Module Station – Audio & Video

Features :-

  • 2-Wire main unit of modular door station
  • 2MP fisheye camera with IR supplement
  • One call Physical Button For easier calls
  • Two-lock control
  • IP65 protection level
  • Convenient configuration via Web remotely
  • Directly provide 12VDC, 500 mA power output for one electronic lock without additional power supply
  • Hikvision Intercom Online Designer Tool

Hikvision Product-Link -> DS-KD8003Y-IME2



System Parameters

  • Operating System: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • CPU: Embedded Processor

Display Parameters

  • Screen Size: NA
  • Operation Method: NA
  • Type: NA
  • Resolution: NA

Video Parameters

  • Supplement Light: Low illumination, IR supplement lights
  • Video Standard: H.264
  • Lens: 1
  • FOV: Horizontal: 146°, Vertical: 82°
  • WDR: Support
  • Resolution: 2MP

Audio Parameters

  • Audio Compression Standard: G.711 U, G.711 A
  • Audio Input: Built-in omnidirectional microphone
  • Audio Output: Built-in loudspeaker
  • Audio Compression Bitrate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation
  • Volume Adjustment: Adjustable

Capacity

  • Fingerprint Capacity: /
  • User Capacity: 2000
  • Face Capacity: NA
  • Linked Indoor Station Capacity: 500
  • Event Capacity: /
  • Sub Door Station Capacity: 16

Network Parameters

  • Communication Protocol: NA
  • Wired Network: NA
  • Wi-Fi: NA
  • Bluetooth: NA
  • 3G/4G: NA

Device Interfaces

  • Alarm Input: 4 (2 exit butttons and 2 door contacts by default)
  • Network Interface: NA
  • TAMPER: 1
  • Exit Button: 2 (2 for lock control)
  • Door Contact Input: 2
  • RS-485: 1 (1 for Hikvision’s sub module communication)
  • Wiegand: NA
  • TF Card: NA
  • Alarm Output: NA
  • Lock Control: 2 (2 relay, max to 30 VDC, 2 A)
  • USB: NA
  • Power Interface: 12VDC power output(12 V, 500 mA Max.)
  • Two-Wire IP Interface: 1

General

  • Button: 1
  • Installation: Surface mounting & flush mounting
  • Indicator: 0
  • Weight: 373.5 g
  • Protective Level: IP65
  • Working Temperature: -40° C to 60° C (-22° F to 140° F)
  • Working Humidity: 10% to 90%
  • Dimensions: 100 mm × 98 mm × 42 mm
  • Battery: /
  • Power Supply: Powered by KAD704Y or KAD706Y series distributor
  • Application Environment: Outdoor
  • Power Consumption: ≤ 4 W
  • Language: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
