D-Tech DH-IPC-HDW3841EMP-S-S2-0280B

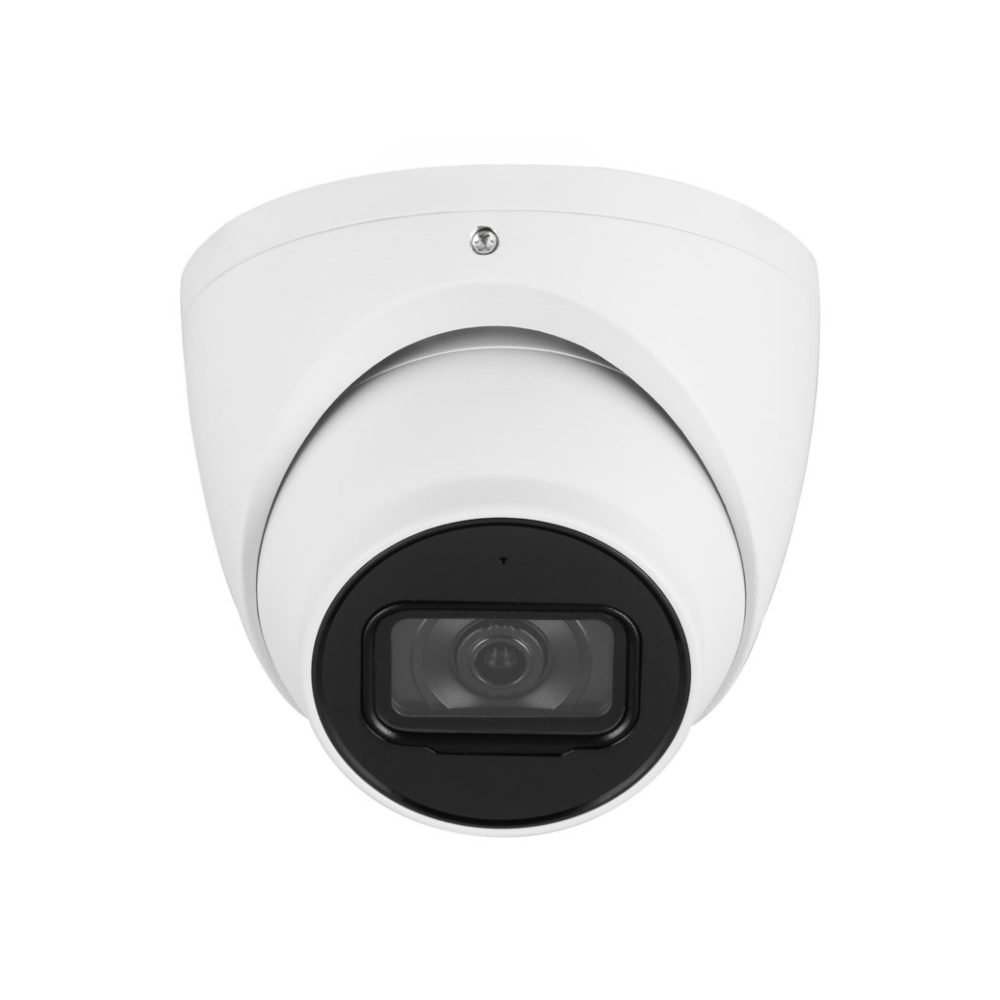

D-Tech DH-IPC-HDW3841EMP-S-S2-0280B WizSense AI (Artificial Intelligence) SSA SMD 4.0 H265 4K 8MP PoE IP Smart-IR (30m) 120dB True-WDR Starlight Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens; with Built-in Audio Mic
D-Tech DH-IPC-HDW3841EMP-S-S2-0280B WizSense AI (Artificial Intelligence) SSA SMD 4.0 H265 4K 8MP PoE IP Smart-IR (30m) 120dB True-WDR Starlight Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens; with Built-in Audio Mic
Key Features :-
- 8MP 1/2.8″ CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 8MP (3840 × 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 30m
- ROI, SMART H.264 + / H.265+, AI H.264 / H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Max. 256 G Micro SD card. built-in Mic
- 12VDC / PoE power supply, easy for installation
- IP67 protection
- SMD 4.0, AI SSA
Camera
- Image Sensor: 1/2.8” 8MP progressive CMOS
- Max. Resolution: 3840 (H) × 2160 (V)
- ROM: 128 MB
- RAM: 1GB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination: 0.007 lux @ F1.4 (Color, 30 IRE); 0.0007 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: > 56 dB
- Illumination Distance: 30 m (164.0 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 2 (IR LED)
- Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8 mm
- Max. Aperture: F1.4
- Field of View: 2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127°
- Iris Type: Fixed
- Close Focus Distance: 2.8 mm: 1.5 m (4.9 ft)
- Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Professional, intelligent
- Perimeter Protection: Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
- Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec: Smart H.265+/ Smart H.264+
- AI Coding: AI H265; AI H264
- Stream Capability: 3 streams
- Video Frame Rate: Main stream: 3840 × 2160 @ (1–25/30) fps; Sub stream (704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps); Third stream (1920 × 1080 @ 1–25/30 fps)
- Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control: CBR/VBR
- Video Bit Rate: H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps
- Day/Night: Auto (ICR)/Color/B/W
- BLC: Yes
- HLC: Yes
- WDR: 120 dB
- Scene Self-adaptation (SSA): Yes
- White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
- Gain Control: Auto/Manual
- Noise Reduction: 3D DNR
- Motion Detection: OFF/ON (4 areas, rectangular)
- Region of Interest (RoI): Yes (4 areas)
- Defog: Yes
- AFSA: Yes
- Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
- Mirror: Yes
- Privacy Masking: 4 areas
Audio
- Built-in MIC: Yes
- Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm
- Alarm Event: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
- Network: RJ-45 (10/100 Base-T)
- SDK and API: Yes
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
- Interoperability: ONVIF (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec
- User/Host: 20 (Total bandwidth: 72 M)
- Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
- Browser: IE: IE11; Chrome; Firefox
- Management Software: Smart PSS; DSS; DMSS
- Mobile Phone App: IOS; Android
Certifications
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
- Power Supply: 12VDC / PoE (802.3af)
- Power Consumption: Basic: 4.3 W (12 VDC); 4.9 W (PoE); Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
Environment
- Operating Conditions: –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
- Storage Conditions: –40°C to +60°C (–40°F to +140°F)
- Protection Grade: IP67
Structure
- Casing: Metal
- Dimensions: Φ106 mm × 93.6 mm (Φ4.17” × 3.69”)
- Net Weight: 0.50 kg (1.10 lb)
- Gross Weight: 0.77 kg (1.70 lb)
