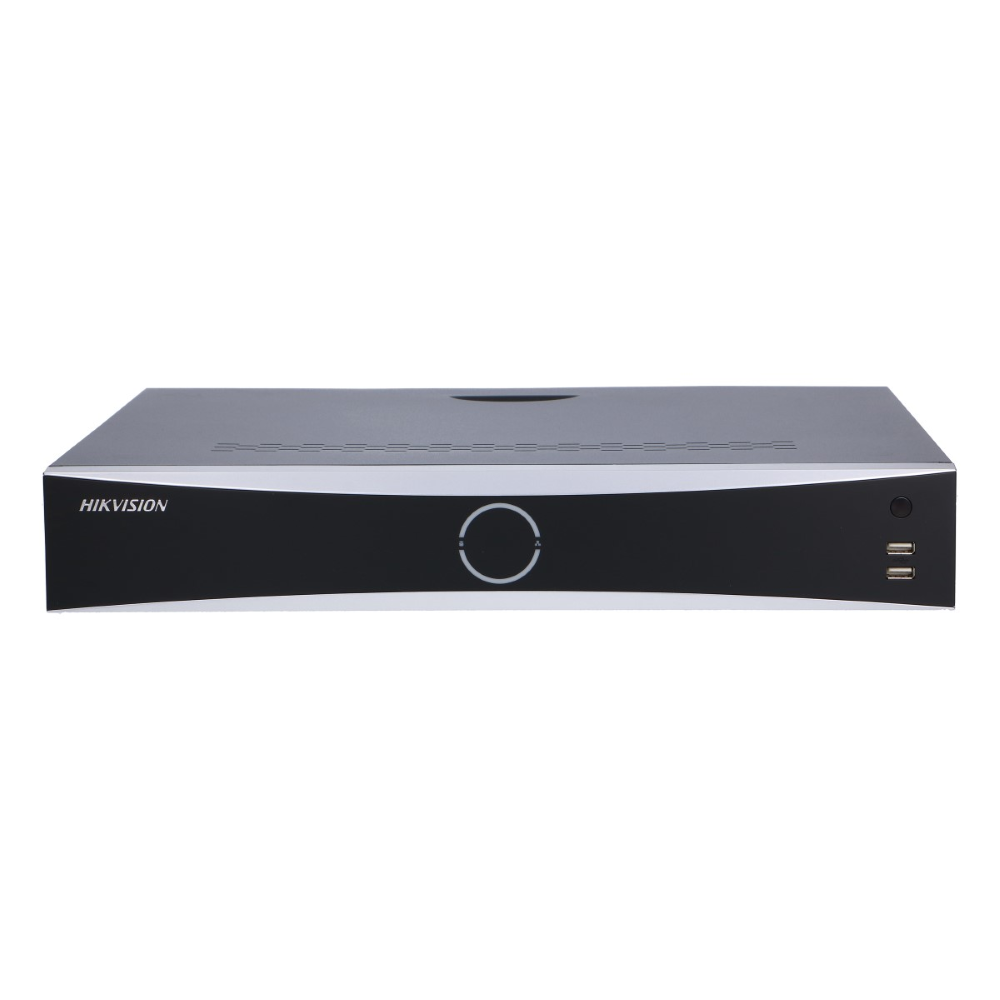

Hikvision DS-7732NXI-I4/16P/VPro-8TB

Intelligent Analytics

• AI by NVR: Facial recognition
• AI by NVR and Camera: Facial recognition, perimeter protection, video structurization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
• Engine: 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek

Facial Recognition

• Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
• Face Picture Comparison: 8-ch
• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8MP, H.264/H.265)

AcuSearch

• Performance: If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day.

AcuSeek

• Performance: If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day.
• Search Language: English

ANPR

• By Camera: All channels
• Vehicle Attributes: Plate number, license plate color, license plate type
• Plate Attributes: Vehicle brand, vehicle color, vehicle type

Video and Audio

• IP Video Input: 32
• Incoming Bandwidth: 384 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI Output: HDMI1: 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz; HDMI2: 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz
• VGA Output: 1920 × 1080/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: NA
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format: H.265, H.265+, H.264, H.264+, MPEG4
• Recording Resolution: 32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 8-ch
• Dual-Stream Recording: Support
• Live View Window Division: 1/4/6/8/9/16/25/36
• Aux Port Window Division: 1/4/6/8/9/16/25/36
• Stream Type: Video, Video & Audio
• Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps)
• Audio Compression: G.711ulaw,G.711alaw,G.722,G.726,MP2L2

Network

• Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16 * RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 200W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 4 SATA interfaces
• Capacity: Up to 20 TB capacity for each disk
• Serial Interface: 2x RS-485 (half-duplex), 1x RS-232
• Alarm In/Out: 16/9
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply: ≤ 360 W
• Consumption: ≤ 50W
• Working Temperature: -10℃～＋55℃
• Working Humidity: 10％～90％
• Chassis: 1.5U rackmount
• Dimension (W × D × H): 440 x 391 x 72 mm（17.32″ x 15.39″ x 2.81″）
• Weight: ≤ 5 kg

Certification

• Obtained Certification: CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC
• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
