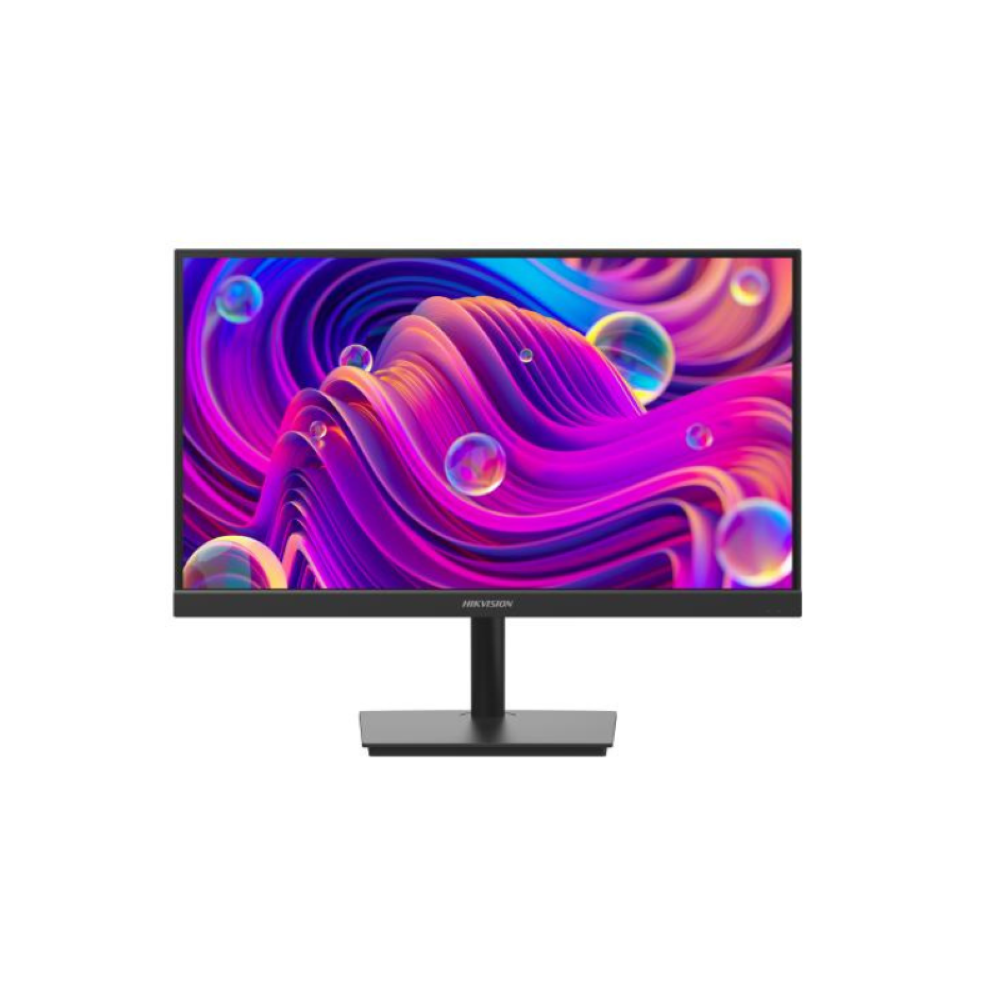

Hikvision DS-D5024F2-AP2

Display

• Screen Size: 23.8 inch
• Active Display Area: 527.04 (H) mm × 296.46 (V) mm
• Resolution: 1920 × 1080
• Back-light: E-LED
• Pixel Pitch: 0.2745 (H) mm × 0.2745 (V) mm
• Brightness: 250 cd/m²
• Viewing Angle: 178° (H) / 178° (V)
• Color Depth: 16.78 M
• Contrast Ratio: 1000 : 1
• Response Time: 14ms
• Refresh Rate: Typ. 60 Hz , Max. 100Hz
• Haze: Haze 25%，3H
• Reliability: 7 × 16 H
• Color Gamut: 72% NTSC

Interface

• Video & Audio Input: HDMI 1.4 × 1, VGA × 1
• Video & Audio Output: Audio Out × 1
• Data Transmission Interface: None
• Control Interface: None

Power

• Power Supply: DC 12V, 2.0A
• Power Consumption: ≤ 24 W
• Standby Consumption: ≤ 0.5 W

Working Environment

• Working Temperature: 0℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 20% to 90% RH (Non-Condensing)
• Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
• Storage Humidity: 10% to 90% RH (Non-Condensing)

General

• Casing Material: Plastic
• VESA: 75 mm × 75 mm (4 – M4 × 6 mm)
• Bezel Width: 2.0 mm (top/left/right), 23.55 mm (bottom)
• Product Dimensions (W × H × D):
  • With base: 539.7 (W) mm × 427.33 (H) mm × 185.69(D) mm
  • Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm

• Package Dimensions (W × H × D): 652 (W) mm × 445 (H) mm × 116 (D) mm
• Net Weight: 2.85 ± 0.5 kg
• Gross Weight: 3.85± 0.5 kg
• Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
