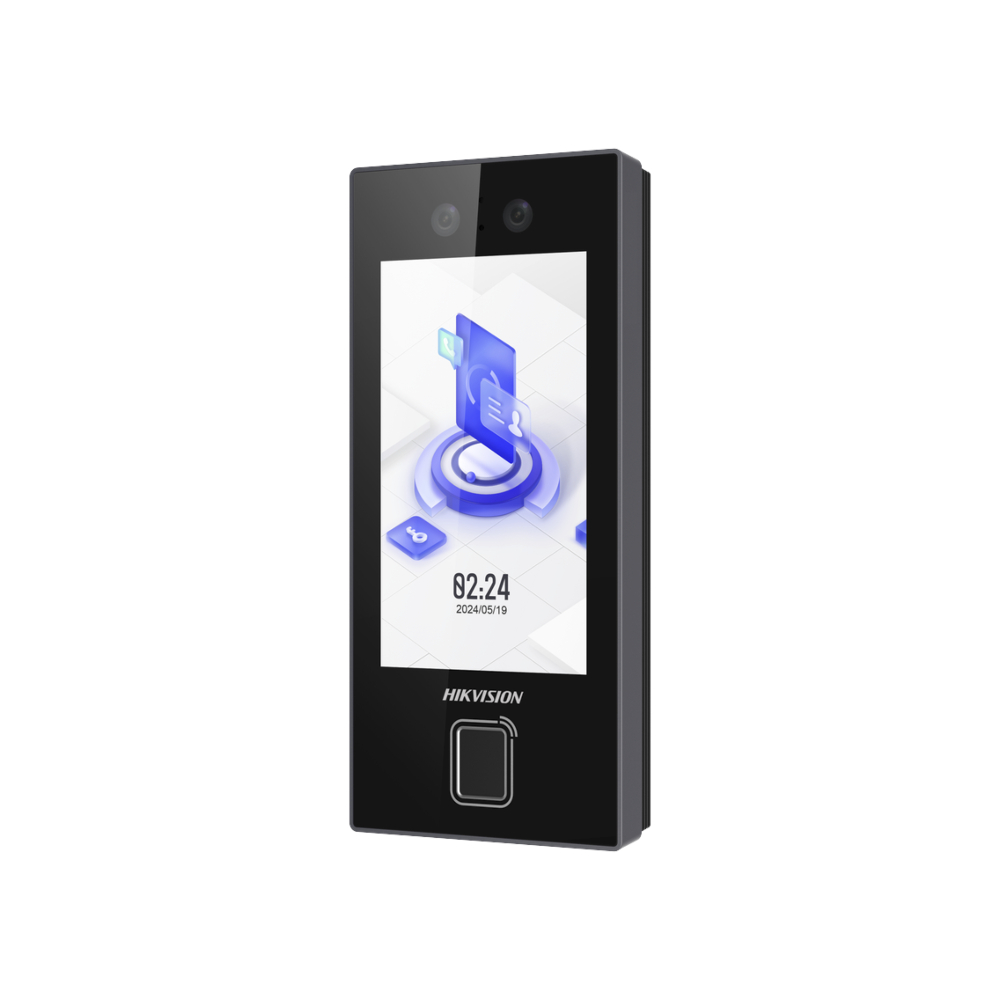

Hikvision DS-K1T344EBFWX-E1

Name: Hikvision DS-K1T344EBFWX-E1
SKU: DS-K1T344EBFWX-E1

Hikvision DS-K1T344EBFWX-E1 Value-series WiFi / Wireless PoE IP Face-Recognition Access Control Terminal – 4.5″ Touchscreen – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in 125KHz EM Card-Reader + Fingerprint Reader

SKU: DS-K1T344EBFWX-E1 Categories: Access Control, Standalone Tags: 1080P, 125KHz, 2.4GHz Wireless, 2MP, Access Control, Biometric Reader, Built-in Mic, Deep Learning, Face Capture, Face Detection, Face Recognition, Fingerprint, Gate Automation, Gate Control, Hikvision, Intercom, IP, IP65 Rated, MinMoe, Network, PoE, RFID, RFID Reader, Speaker, Time Attendance, Touchscreen, Video Intercom, Weatherproof, WiFi, Wireless

Key Features:-

Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in EM card reading module
Max.3000 faces capacity, Max. 3000 fingerprints capacity, and Max. 3000 cards
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
Supports face, card, PIN, and fingerprint authentication
Two-way audio with client software, indoor station, and main station.
Supports mobile web and PC web for configuration
Supports powered by 12 VDC or PoE and supports powering for device and door lock
Can be used for Time & Attendance Solution
Hikvision Intercom Online Designer Tool

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below

Hikvision Product-Link

System

Operating system: Linux

Display

Screen size: 4.5-inch
Resolution: 480 × 854
Type: LCD
Operation method: Touchable

Video

Lens: × 2
Video standard: PAL (Default) and NTSC

Network

Bluetooth: Support
Wired network: 10/100 Mbps self adaptive
Wi-Fi: Support

Interface

Alarm input: 2
Alarm output: 1
PoE: IEEE802.3at, standard PoE
Network interface: 1
RS-485: 1
Wiegand: 1, supports Wiegand input, single direction
Lock control: 1
Exit button: 1
Door contact input: 1
TAMPER: 1
USB: 1

Capacity

User capacity: 3000
Card capacity: 3000
Face capacity: 3000
Fingerprint capacity: 3000
Event capacity: 150000

Authentication

Card type: EM card
Card reading frequency: 125 KHz
Face recognition duration: ＜ 0.2 s
Face recognition accuracy rate: ＞99%
Face recognition distance: 0.3 to 1.5 m

General

Button: No physical call button
Power supply: 12 VDC, 1 A, standard PoE
Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Working humidity: 10 to 90% (No condensing)
Dimensions1: 65.2 mm × 75.7 mm × 25 mm （6.5″ × 2.98″ × 0.98″)
Installation: Wall mounting
Protective level: IP65
Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French
Weight: Gross weight: 0.60 kg (1.33 lbs); Net weight: 0.30 kg (0.66 lbs)
