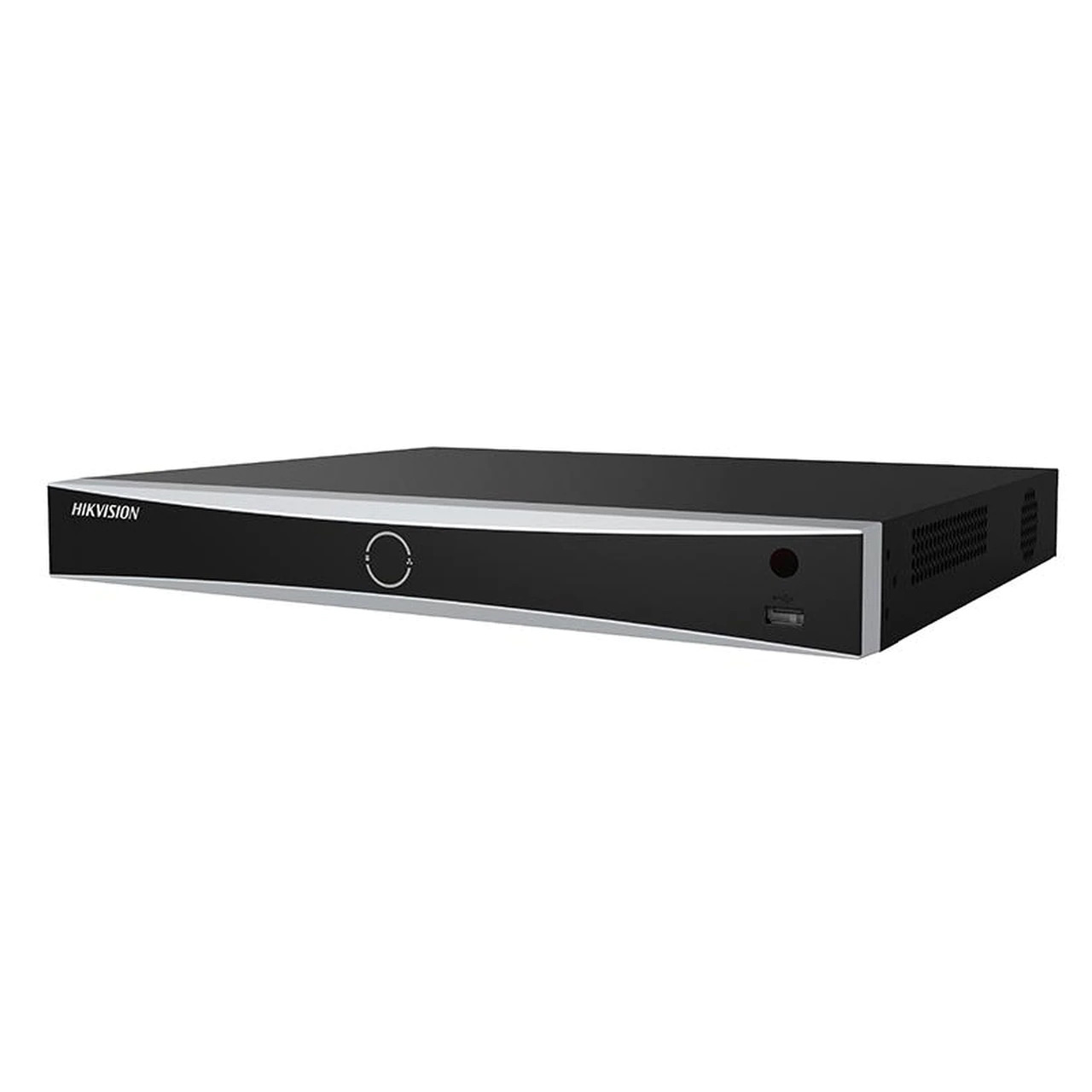

Hikvision iDS-7608NXI-M2/8P/X-6TB
Hikvision iDS-7608NXI-M2/8P/X-6TB DeepinMind Edge 4K 8K 8-Channel NVR with 8x PoE Ports – Includes 6TB HDD – Intelligent Analytics – Supports Face Recognition
SKU: iDS-7608NXI-M2/8P/X-6TB
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 32MP, 4K Resolution, 8-Channel, 8K, 8x PoE, Artificial Intelligence, DeepinMind, Face Recognition, H265, Hikvision, Network, Network Video Recorder, NVR, PoE
Hikvision iDS-7608NXI-M2/8P/X-6TB DeepinMind Edge 4K 8K 8-Channel NVR with 8x PoE Ports – Includes 6TB HDD – Intelligent Analytics – Supports Face Recognition
Key Features:-
- Up to 2-ch @ 32MP / 2-ch @ 24MP / 4-ch @ 12MP / 8-ch @ 8MP decoding capacity
- H.265+ / H.265 / H.264+ / H.264 video formats
- Up to 8-ch IP cameras can be connected, plug & play with 8 Power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 8-ch perimeter protection
- Up to 8-ch facial recognition for video stream, or up to 8-ch facial recognition for face picture
- Up to 6-ch video structurization
- Up to 8-ch IP speakers can be connected
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 8K resolution) – Can be configured to display different sets of cameras on HDMI
- 1 x CVBS (BNC) port
- 2 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 8 x PoE ports (10/100Mbps)
- 1 x LAN port (10/100/1000Mbps)
- 4 x Alarm input ports
- 1 x Alarm output port
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Intelligent Analytics
- AI by NVR: Facial recognition, perimeter protection, video structurization, AcuSearch
- AI by Camera: Facial recognition, perimeter protection, video structurization, AcuSearch , motion detection2.0, ANPR, people counting, VCA
- Engine: 1 engine can run an intelligent algorithm, engine mode is adjustable
Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera): 8-ch; Comparison speed: 24 pictures per second
- Facial Detection and Analytics Performance: 8-ch 2 MP, up to 8 MP
AcuSearch
- By Camera: All channels, up to 345,600 targets/day – The camera should enable AcuSearch function
- By NVR: up to 4-ch, up to 345,600 targets/day
Perimeter Protection
- By NVR: perimeter protection powered by Large Model: 12-ch @ 2MP or 8-ch @ 4MP or 4-ch @ 8MP; perimeter protection without Large Model: 16ch @ 4MP or 8-ch @ 8MP
- By Camera: perimeter protection powered by Large Model with AcuSense cameras: All channels
Video Structurization
- Structured Analysis: 6-ch @ 2MP, up to 8MP
- Face Picture Library: Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison: 8-ch; Comparison speed: 16 pictures per second
ANPR
- By Camera: All channels
- Plate Attributes: Vehicle brand, vehicle color, vehicle type
- Vehicle Attributes: Plate number, license plate color, license plate type
Video and Audio
- IP Video Input: 8-ch – Up to 32MP resolution
- Incoming Bandwidth: 128 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- VGA Output: 1920 × 1080/60Hz
Decoding
- Decoding Format: H.265 / H.265+ / H.264 / H.264+
- Decoding Capability: 2-ch @ 32MP (30 fps) / 2-ch @ 24MP (30fps) / 4-ch @ 16MP (30fps) / 8-ch @ 8MP (30fps)
- Synchronous Playback: 8-ch
- Recording Resolution: 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol: ONVIF (Version 2.5), RTSP
PoE
- Interface: 8* RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power: ≤ 120 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2* SATA interfaces; 3.5-inch HDD
- eSATA: 1 eSATA interface
- Capacity: Up to 16 TB capacity for each HDD
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 4/1
General
- GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 50 W (without HDD and PoE off)
- Working Temperature: -10 to 55°C (14 to 131° F)
- Working Humidity: 10 to 90%
- Dimension (W × D × H): 385 × 315 × 52 mm ( 15.2″× 12.4″ × 2.0″)
- Weight: ≤ 3 kg (without HDD, 2.2 lb.)
Certification
- Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
