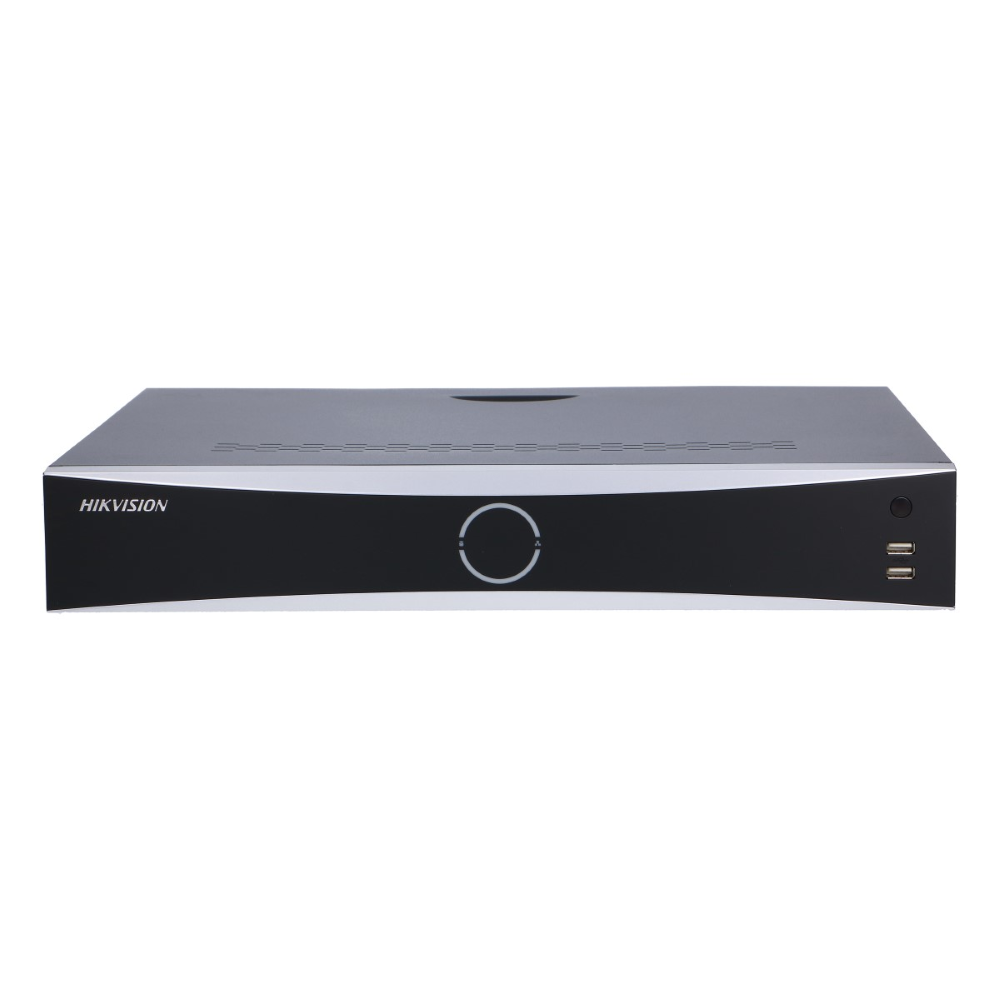

Hikvision iDS-7716NXI-M4/16P/X

Intelligent Analytics

• AI by NVR: Facial recognition, perimeter protection, video structurization, AcuSearch
• AI by Camera: Facial recognition, perimeter protection, video structurization, AcuSearch , motion detection2.0, ANPR, people counting, VCA
• Engine: 2 – each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Face Picture Comparison (Captured from Camera): 16-ch (8-ch for each engine); Comparison speed: 48 pictures per second
• Facial Detection and Analytics Performance: 16-ch 2MP (8-ch for each engine), up to 8MP

AcuSearch

• By Camera: All channels ,up to 691,200 targets/day – The camera should enable AcuSearch function
• By NVR: up to 8-ch, up to 691,200 targets/day

Perimeter Protection

• By NVR: perimeter protection powered by Large Model: 12-ch 2MP or 8-ch 4MP or 4-ch 8MP; perimeter protection without Large Model: 24-ch 2MP or 16-ch 4MP or 8-ch 8MP
• By Camera: perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structurization

• Structured Analysis: 12-ch 2MP (6-ch for each engine), up to 8MP
• Face Picture Library: Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Face Picture Comparison: 16-ch; Comparison speed: 32 pictures per second

ANPR

• By Camera: All channels
• Plate Attributes: Plate number, license plate color, license plate type
• Vehicle Attributes: Vehicle brand, vehicle color, vehicle type

Video and Audio

• IP Video Input: 16-ch – Up to 32 MP resolution
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI 1 Output: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz
• HDMI 2 Output: 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
• VGA Output: 1920 × 1080/60Hz

Decoding

• Decoding Format: H.265 / H.265+ / H.264 / H.264+
• Decoding Capability: 2-ch @ 32MP (30 fps) / 2-ch @ 24MP (30fps) / 4-ch @ 16MP (30fps) / 8-ch @ 8MP (30fps) / 16-ch @ 4MP (30fps)
• Synchronous Playback: 16-ch
• Recording Resolution: 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
• API: ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access Protocol: ONVIF (Version 2.5), RTSP

PoE

• Interface: 16* RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power: ≤ 200 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 4 SATA interfaces; 3.5-inch HDD
• eSATA: 1 eSATA interface
• Capacity: Up to 16TB capacity for each HDD
• Serial Interface: 1 RS-232, 2 RS-485 (half-duplex)
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out: 16/4

General

• GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 50 W (without HDD and PoE off)
• Working Temperature: -10 to 55°C (14 to 131° F)
• Working Humidity: 10 to 90%
• Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
• Weight: ≤ 5 kg (without HDD, 11 lb.)

Certification

• Obtained Certification: CE, FCC, IC, CB, KC, UL, RoHS, Reach, WEEE, RCM, UKCA, LOA, BIS
• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
