HiLook NVR-232MH-K/16P-4TB

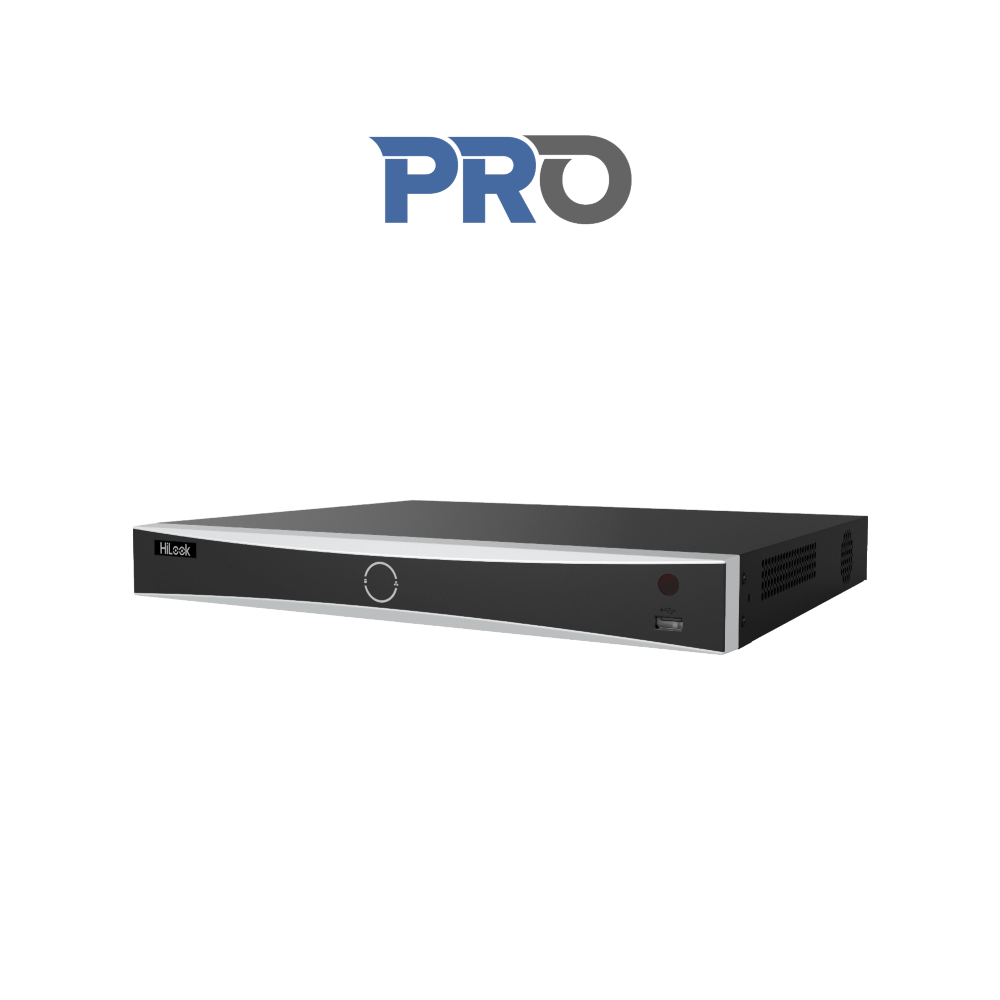

HiLook NVR-232MH-K/16P-4TB Pro-series AI 4K H265 1U 32-Channel NVR with 16x PoE Ports – with 4TB Surveillance HDD Pre-fitted – Compatible with HiLook & Hikvision Cameras
SKU: NVR-232MH-K/16P-4TB
Categories: CCTV / Surveillance, HiLook NVRs, IP Surveillance, NVRs
Tags: 16x PoE, 32-Channel, 4K Resolution, 8MP, H265, Hikvision, HiLook, Network, Network Video Recorder, NVR, PoE, Pro Series
HiLook NVR-232MH-K/16P-4TB Pro-series AI 4K H265 1U 32-Channel NVR with 16x PoE Ports – with 4TB Surveillance HDD Pre-fitted – Compatible with HiLook & Hikvision Cameras
Key Features :-
- Up to 32-channel IP camera inputs
- H.265+ / H.265 / H.264+ / H.264 video formats
- Up to 256Mbps incoming bandwidth
- H.265+ compression effectively reduces the storage space by up to 75%
- Provides heterogenous / independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2* SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- Smart search / smart playback to improve the playback efficiency
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution)
- 2 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 16 x PoE ports (10/100Mbps) (Max. 150w PoE power across all PoE ports)
- 1 x LAN port (10/100/1000Mbps)
- No Alarm input ports
- No Alarm output port
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Intelligent Analytics
- AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
- AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance1-ch, 8 MP
- Face Picture Comparison4-ch
Motion Detection 2.0
- By Camera: All channels
Perimeter Protection
- By Device: 2-ch, 4MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera: All channels
Video and Audio
- IP Video Input: 32-ch
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 160 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: N/A
- Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)
Decoding
- Decoding Format: H.265/H.265+/H.264+/H.264
- Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
- Synchronous playback: 16-ch
- Decoding Capability:
-
- AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
- Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
- Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
-
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection: 128
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16* RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 200 W
- Standard: IEEE 802.3af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out: 4/1
General
- GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
- ≤ 3 kg (without HDD, 6.6 lb.)
Certification
- CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
