iSecure ICL-100W60AH12.8VSOLARSET

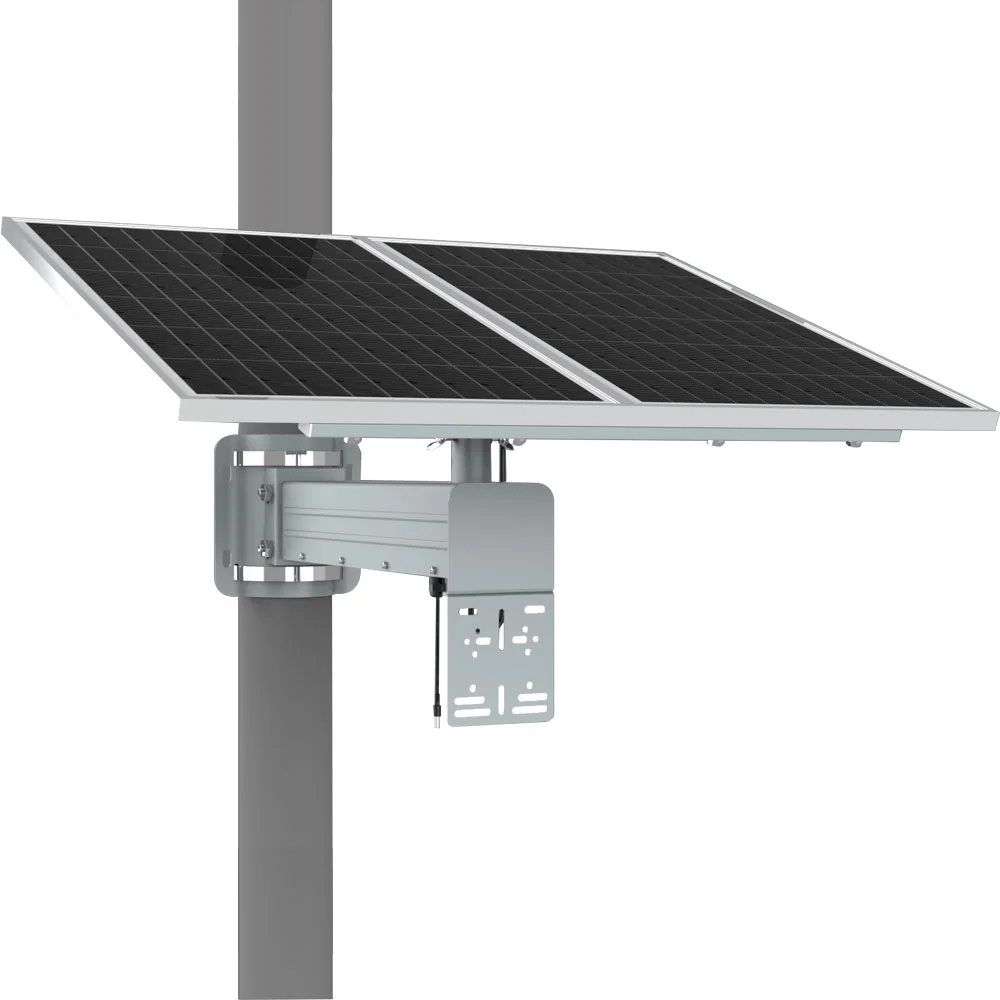

iSecure ICL-100W60AH12.8VSOLARSET – Includes 1 * 100w Monocrystalline Solar Panel with Pole-Mounting Frame + 1 * 60Ah LiFePO4 Rechargeable Solar Battery with Built-in MPPT Controller in a Weatherproof Universal Bracket with Camera Mount

iSecure ICL-100W60AH12.8VSOLARSET – Includes 1 * 100w Monocrystalline Solar Panel with Pole-Mounting Frame + 1 * 60Ah LiFePO4 Rechargeable Solar Battery with Built-in MPPT Controller in a Weatherproof Universal Bracket with Camera Mount

Key Features :-

  • Reliable 24/7 Power Supply – Operates continuously for 365 days in locations with available sunlight, requiring no external wiring.
  • IP65 Fully Enclosed Waterproof Design – Ensures durability and protection against harsh weather conditions.
  • High-Capacity LiFePO4 Battery – Offers longer lifespan, superior safety, and stable performance, setting new industry standards.
  • Advanced Photovoltaic Panel Technology – High conversion efficiency, excellent low-light performance, and fast charging capability.
  • All-Weather Operation – Can charge and function efficiently even on rainy days, ensuring uninterrupted power.
  • The iSecure Solar Power Supply System is a cutting-edge solution for off-grid power needs, delivering efficiency, reliability, and cost savings for outdoor applications.

About Product:-

  • CCTV Solar Power Supply 100W60AH Solution
  • Solar panel: 1 * 100W monocrystalline silicon solar panel
  • Battery: 60AH 12.8V LiFePO4 Battery, total: 768WH
  • Solar MPPT Controller
  • Installation Bracket for Solar Panel and Battery
  • 1 * DC12V OUT
  • Other accessories: Screws, DC Cable, etc
  • Used for CCTV and general applications
  • Suitable for pole-mount & wall-mount installations
  • Note (1) : Image for illustration purpose only; excludes pole, camera/s and any wireless equipment
  • Note (2) : Oversize & overweight item, best for collection; will incur extra freight charges for special freight deliveries, please check freight cost estimate with us prior to ordering.

Solar Panel

  • Material: High-efficiency mono-crystalline silicon cell, high-strength aluminum alloy frame
  • Panel materials: Super white toughened glass
  • Solar energy size: 670 * 890 * 30MM
  • Life: 25years
  • Maximum power (Pm): 100W
  • Short circuit current (Isc): 6.22A
  • Open circuit voltage (Voc): 21.6V
  • Maximum power current (Imp): 5.55A
  • Maximum power voltage (Vmp): 18V
  • Maximum power tolerance: ±5%
  • Conversion efficiency: >19%
  • Attenuation rate: The attenuation rate is less than 5% within 2 years and less than 10% within 10 years.

Power Supply System

  • Power output: 12V
  • DC connector: 3.1MM × 10MM
  • Battery capacity: 60AH LiFePo4
  • Battery life: ﹥5 years
  • Charging time: 9(H)
  • Controller: Fully intelligent digital controller, with the functions of preventing overcharge, over-discharge, lightning protection, short circuit and reverse connection
  • Controller life: ﹥10 Years
  • Waterproof coefficient: IP65
  • Outer packing size: 1100 * 685 * 60MM
  • Battery operating temperature range: -40℃-80℃
  • Net Weight: 20KG
