CCTV / Surveillance, IP Cameras, IP Face Recognition Cameras, IP Surveillance, IP Turret Cameras

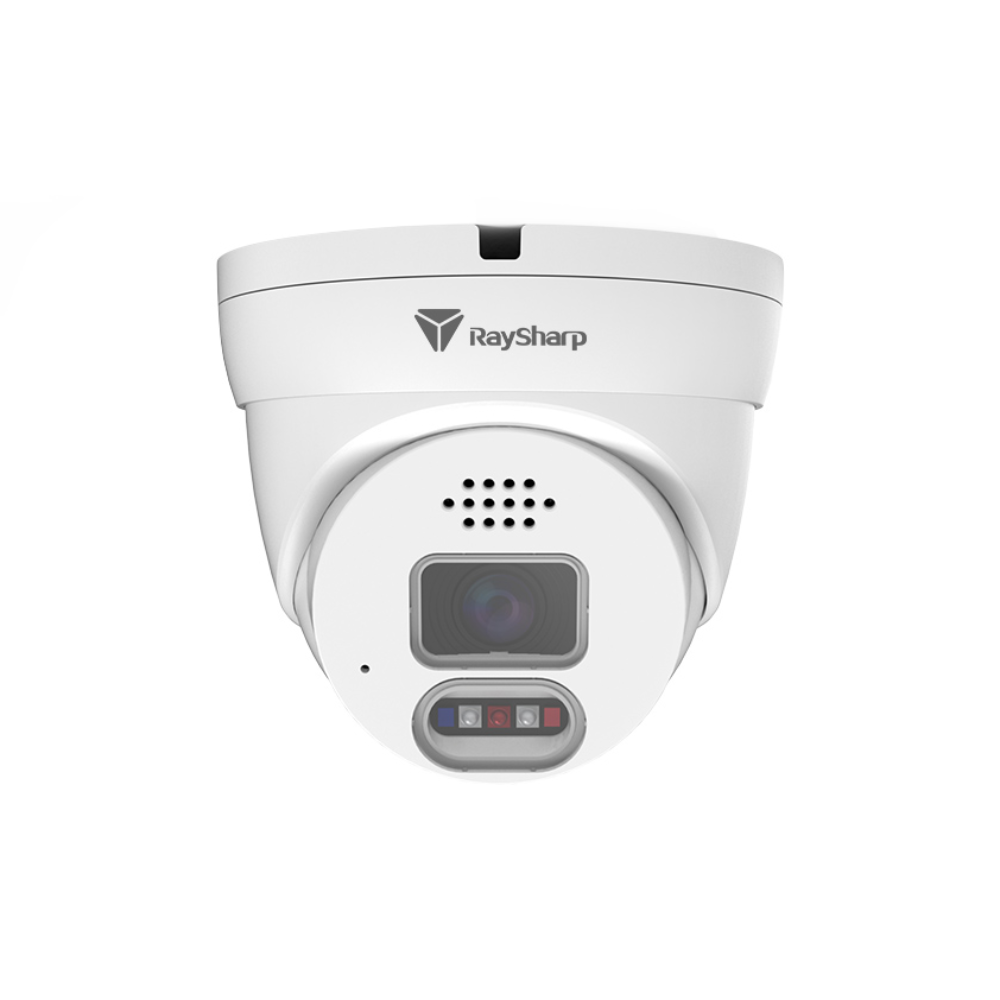

Raysharp RS-CH340N4KPB-HALTF-LFW28PW
Raysharp RS-CH340N4KPB-HALTF-LFW28PW AI Fixed Series H265 4K 8MP PoE IP Dual-Light (25m IR + 20m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
SKU: RS-CH340N4KPB-HALTF-LFW28PW
Categories: CCTV / Surveillance, IP Cameras, IP Face Recognition Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 2-Way Audio, 4K, 8MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Face Recognition, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Raysharp, Smart Dual Light, Speaker, Turret, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH340N4KPB-HALTF-LFW28PW AI Fixed Series H265 4K 8MP PoE IP Dual-Light (25m IR + 20m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/2.8″
- Effective Pixels: 8MP -> 3840 (H) x 2160 (V）
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: Fixed (M12/F1.0)
- Focal Length: 2.8 mm
- Angular Field of View: Horizontal: 110° , Vertical:58°, Diagonal: 131°
- IR Viewable Length: Up to 25m
- WarmLight Viewable Length: Up to 20m
- Audio: 2-way – Built-in microphone & Speaker
- Alarm: Red & Blue flashing lights
- Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
- Smart Feature: Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting
- Video Quality Ajustment: 256Kbps ~ 16Mbps
- Operating Conditions: -30～+60°C ≤ 90% RH
- Ingress Protection: IP67
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH340N4KPB-HALTF-LFW36PW |
| Imaging Device | 1/2.8″ |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Min. Illumination | Color 0.007 Lux @（F1.0，AGC ON） ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio)/Max. Aperture Ratio | 3.6 mm/F No. 1.0 |
| Angular Field of View | Horizontal: 85°, Vertical: 46°, Diagonal: 100° |
| Min. Object Distance | 2m |
| Lens Type | Fixed(M12/F1.0) |
| IR LED | 1 |
| WarmLight | 2 |
| Red Blue Light | 2（1 Red&1 Blue） |
| IR Viewable Length/WarmLight Viewable Length | Up to 25m/Up to 20m |
| Wide Dynamic Range | WDR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Audio | Built-in microphone&Speaker |
| Hardware Reset | Yes |
| Smart Feature | Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.265+/H.264/H.264+/MJPEG |
| Max.Resolution | 8MP(3840*2160)@30fps |
| Video Quality Ajustment | 256Kbps ~ 16Mbps |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Operating Conditions | -35～+60°C ≤ 90% RH |
| Ingress Protection | IP67 |
| Input Voltage / Current | DC12V: max.5.6W, PoE: max.7.2W |
| Mechanical | Metal |
