SPRO DHDVR12-B6-V2

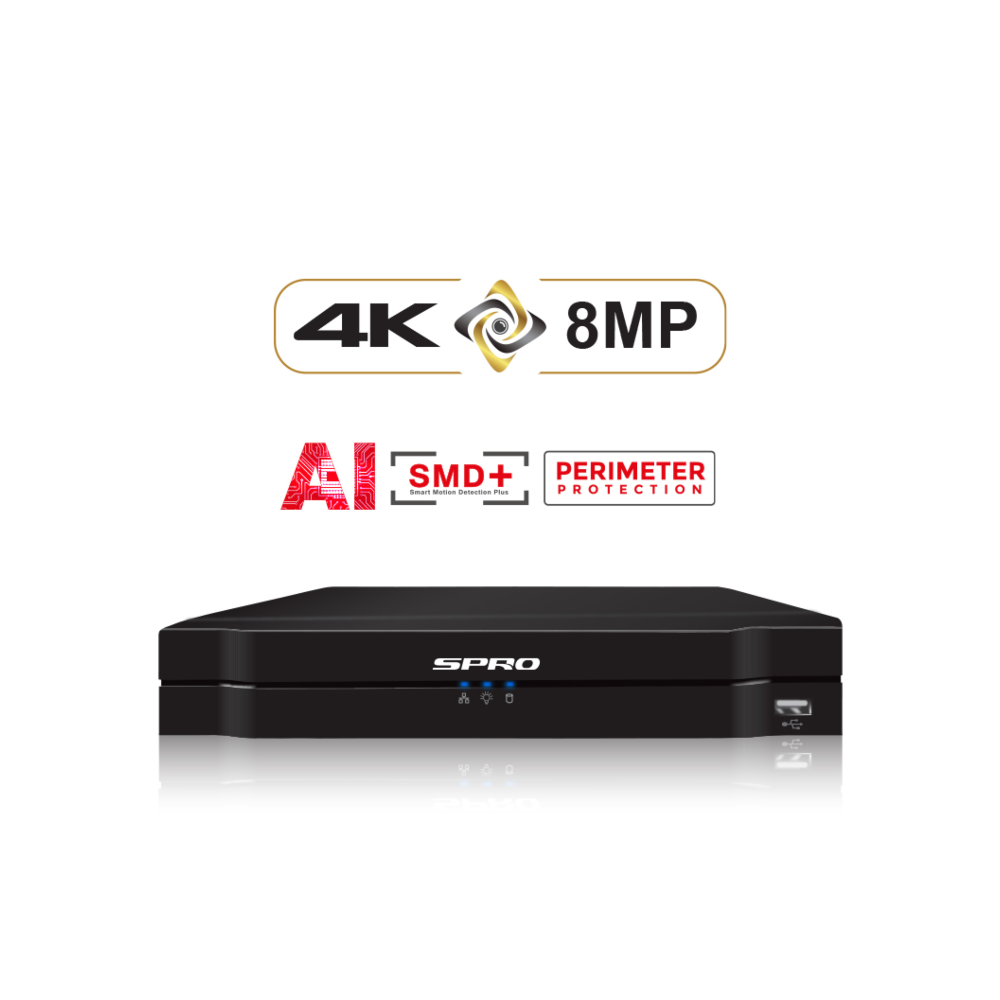

SPRO DHDVR12-B6-V2 Mini 1U 4K 8MP 8-Channel Pentabrid (HDCVI / AHD / HDTVI / CVBS / IP) DVR
SKU: DHDVR12-B6-V2
Categories: CCTV / Surveillance, HDCVI DVRs, HDCVI Surveillance, SPRO HDCVI Pentabrid DVRs
Tags: 4K, 8-Channel, AHD, AI, Analogue CCTV, Artificial Intelligence, CVBS, Digital Video Recorder, DMSS, DVR, HDCVI, HDTVI, Pentabrid, SmartPSS Lite, SMD Plus, SPRO, WizSense, XVR
SPRO DHDVR12-B6-V2 Mini 1U 4K 8MP 8-Channel Pentabrid (HDCVI / AHD / HDTVI / CVBS / IP) DVR
Key Features :-
- H.265+ video compression
- 8* BNC inputs to support HDCVI / HDTVI / AHD / Analogue cameras
- 4K resolution support for HDCVI cameras
- Supports up to 8MP on extra IP channels
- Supports “IP Audio over CAT5/CAT6” on extra IP channels (compatible cameras required)
- P2P (no port forwarding required)
- SMD PLUS (smart motion detection plus)
- Perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- Push notification
- Spot monitoring via local network
- Tag #DH-XVR5108HS-4KL-I3
- Mobile App = DMSS; Software = SmartPSS Lite

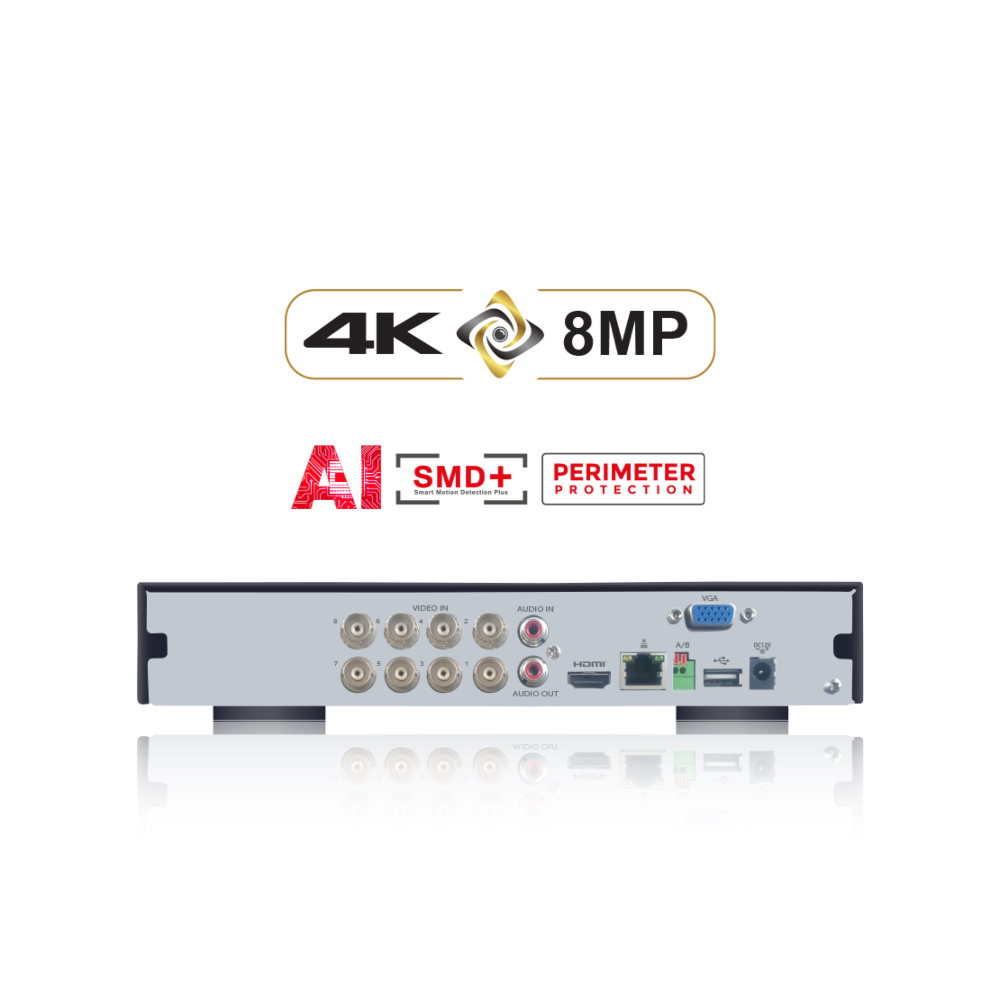

- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras than VGA
- 1 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 1 x RS-485 port
- 8 x BNC inputs (to support Analogue / HDTVI / HDCVI / AHD cameras)* – Check specifications for resolution support
- 1 x LAN port (10/100/1000Mbps)
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Specifications: | |
|---|---|
| Model Number | DHDVR12-B6-V2 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance |
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
|
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance AI by Recorder |
2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases and 20, 000 images |
| Face Recognition Performance AI by Recorder |
2 channel |
| SMD Plus | |
| SMD Plus by Recorder |
8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
|
| Audio and Video | |
| Analogue Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input |
(1) CVI: 4K @ 25/30 fps; 6MP @ 20 fps; 5MP @ 20 fps; 5MP @25 fps; 4MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps; 720p @ 50/60 fps.
(2) TVI: 4K @ 15 fps; 5MP @ 20 fps; 4MP @ 25/30 fps; 3MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps.
(3) AHD: 4K @ 15 fps; 5MP @ 20 fps; 4MP @ 25/30 fps; 3MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps
|
| IP Camera Input |
Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analogue channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
|
| Encoding Capacity |
Main stream: 4K @ (1fps-7fps); 6MP @ (1fps-10fps); 5MP @ (1fps-12fps); 4K-N, 4MP, 3MP @ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF @ (1fps–25/30fps);
Sub stream: 960H @ (1fps–15fps); D1/CIF @ (1 fps–25/30fps)
|
| Dual-stream | Yes |
| Video Bit Rate | 32kbps-6144kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64kbps |
| Video Output | 1 HDMI + 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
|
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
|
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.06 |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Record Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage |
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
|
| Ports | |
| TV Output |
1-channel RCA
8-channel BNC (Coaxial Audio)
|
| Audio Input | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface |
1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
|
| RS-485 | 1 port, for PTZ control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W (without HDD) |
| Net Weight | 1.00 kg (2.21 lb) |
| Gross Weight | 1.40 kg (3.09 lb) |
| Product Dimensions | 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Certification | |
| Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2,
EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
|
