SPRO DHIPD50/28RV-W

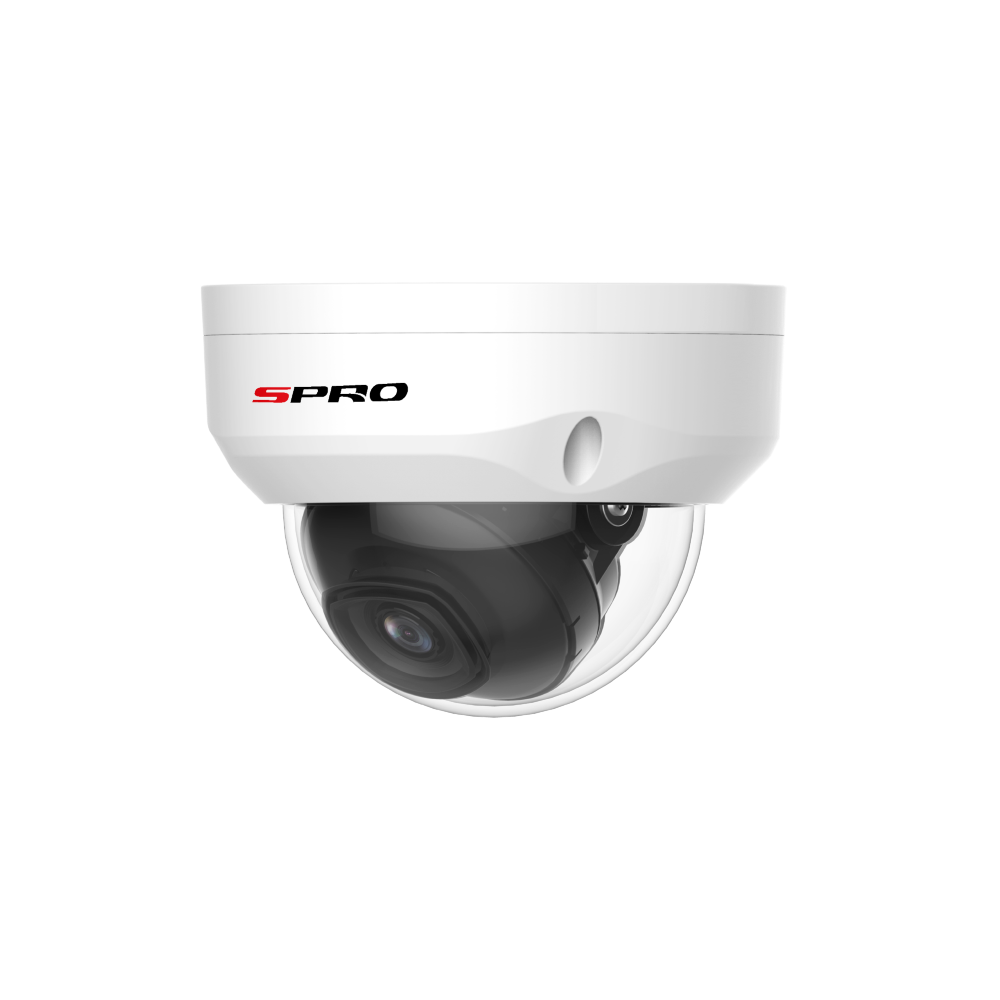

SPRO DHIPD50/28RV-W Lite-series 5MP PoE IP IR (30m) 120dB True-WDR Weatherproof Vandalproof Mini Dome Camera with 2.8mm Fixed Lens
SKU: DHIPD50/28RV-W
Categories: CCTV / Surveillance, Clearance, IP Cameras, IP Dome Cameras, IP Surveillance, Special Offers
Tags: 5MP, Camera, DMSS, Dome, H265, Infrared, IP, IP67 Rated, IR, Lite-series, Network, PoE, SmartPSS Lite, SPRO, Vandalproof, Weatherproof
SPRO DHIPD50/28RV-W Lite-series 5MP PoE IP IR (30m) 120dB True-WDR Weatherproof Vandalproof Mini Dome Camera with 2.8mm Fixed Lens
Key Features :-
- 5MP, 1/2.7″ CMOS image sensor
- 2880 × 1620 @20 fps, 2688 × 1520 @25/30 fps
- H.265
- 30m IR distance
- RoI, SMART H.264+/H.265+
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12VDC / PoE power supply
- IP67 and IK10 protection
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPD50/28RV-W |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| ROM | 16 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.03 Lux @ F2.0 (Colour, 30 IRE); 0.003 Lux @ F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illumination On/Off Control | Auto; Manual |
| Illumination Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° – Tilt: 0°–65° – Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max Aperture | 2.0 |
| Field of View | 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) |
| DORI Distance | Detect: 56 m (183.73 ft) | Observe: 22.4 m (73.49 ft)
Recognize: 11.2 m (36.75 ft) | Identify: 5.6 m(18.37 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2880 × 1620 (1 fps–20 fps); 2688 × 1520 (1 fps–25/30 fps)
Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR) / Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (ROI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone |
| User/Host | 6 (total bandwidth: 48M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certifications | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | Basic: 1.9W (12V DC); 2.2W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.5W (12V DC); 5W (PoE) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 81 mm × Φ109.9 mm (3.19″ × Φ4.33″) |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.49 kg (1.08 lb) |
