SPRO DHIPD80/28LRG-M

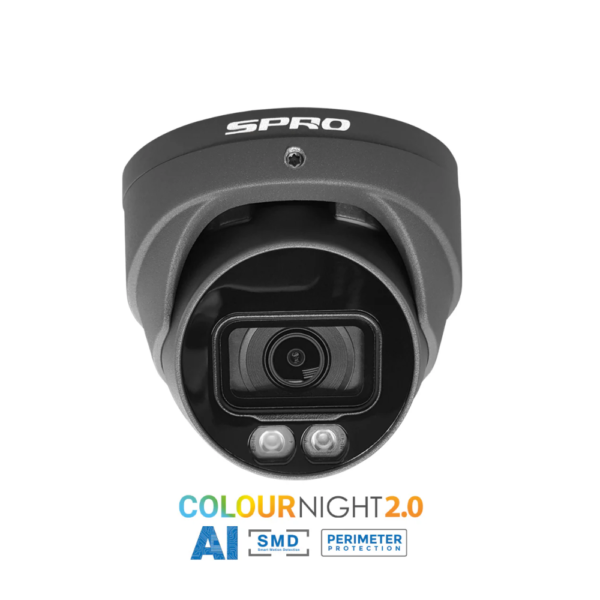

SPRO DHIPD80/28LRG-M SMD AI H265 4K 8MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Eyeball Network Turret Camera with 2.8mm Fixed Lens – Dark Grey Colour – Built-in Audio Mic
SKU: DHIPD80/28LRG-M
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 4K, 8MP, AI Pro, Built-in Mic, Camera, ColourNight 2.0, DMSS, Eyeball, Fixed Lens, Full Colour, H265, Human Detection, Infrared, IP, IP67 Rated, IR, Network, PoE, Smart Dual Light, SmartPSS Lite, SMD Plus, SPRO, Turret, Vehicle Detection, Weatherproof, White Light LED
SPRO DHIPD80/28LRG-M SMD AI H265 4K 8MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Eyeball Network Turret Camera with 2.8mm Fixed Lens – Dark Grey Colour – Built-in Audio Mic
Key Features :-
- 8MP 1/2.7” CMOS image sensor, low luminance and high definition image
- Outputs max. 8MP (3840 x 2160 ) @ 20fps, and supports 2688 x 1520 @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED, the max. illumination distance is 30m and the max. warm light distance is 30m
- ROI, SMART H.264+ / H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max.256 G Micro SD card; built in MIC
- 12VDC / PoE power supply, easy for installation
- IP67 protection
- SMD Plus
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPD80/28LRG-M |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| ROM | 128 MB |
| RAM | 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s-1/100.000 s |
| Min. Illumination | 0.008 lux @ F1.6 (Colour, 30 IRE) 0.0008 lux @ F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56dB |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) |
| DORI Distance | Detect: 84.8m
Observe: 33.9m Recognize: 17.0m Identify: 8.5m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @ (1–20 fps) / 2688 × 1520 @ (1–25/30 fps) sub stream: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Auto (ICR) / Colour /B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: Chrome Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power consumption | Basic: 2.6 W (12 VDC); 3.3 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5W (12 VDC); 5.9 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 0.365 kg |
| Gross Weight | 0.527 kg |
