SPRO DHIPPTZ40/10XLR-D

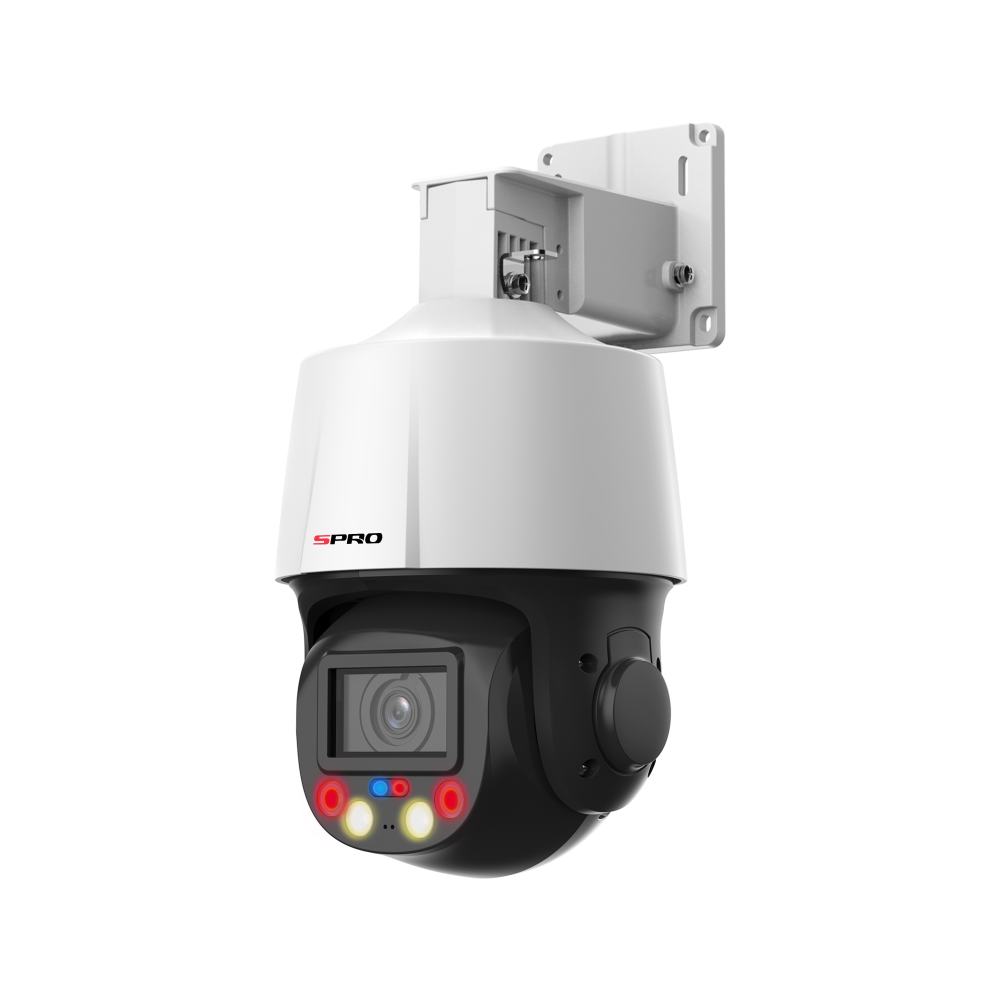

SPRO DHIPPTZ40/10XLR-D AI Pro SMD 3.0 TiOC H265 4MP PoE IP Smart-Dual-Light (70m IR + 30m White-Light) 120dB True-WDR Weatherproof PTZ Camera with 10x Optical Zoom Lens – Active-Deterrence Features – Built-in Mic + Speaker + Strobe + Siren
SPRO DHIPPTZ40/10XLR-D AI Pro SMD 3.0 TiOC H265 4MP PoE IP Smart-Dual-Light (70m IR + 30m White-Light) 120dB True-WDR Weatherproof PTZ Camera with 10x Optical Zoom Lens – Active-Deterrence Features – Built-in Mic + Speaker + Strobe + Siren
Key Features :-
- 4MP @ 30fps
- 4 mm – 40 mm (10x zoom)
- 355° pan rotation
- 0.1°/s–36° pan speed & 0.1°/s–25.8°/s tilt speed
- 300 presets
- Starlight technology
- AI PRO technology
- Tripwire & Intrusion
- Face detection
- Classification of human & vehicle
- SMD 3.0
- Red & Blue ash light / Alarm
- Full colour at night
- IR distance – Up to 70m
- Warm light – Up to 30m
- Speaker built-in
- Alarm in: 1 – Alarm out: 1
- Audio: 1 in / 1 out
- IP66 waterproof
- DC 12V 2A / POE+
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPPTZ40/10XLR-D |
| Image Sensor | 1/2.8″ CMOS |
| Pixels | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s |
| ROM | 128 MB |
| RAM | 512 MB |
| Min. Illumination | Colour: 0.005 lux @ F1.6 B/W: 0.0005 lux @ F1.6 0 lux (IR light on) |
| Illumination Distance | 70m (IR); 30m (Warm light) |
| Illumination On/Off Control | Zoom Priority; Manual; Auto; Off |
| Illuminator Number | 2 (IR) 2 (Warm light) 1 (Red light) 1 (Blue light) |
| Lens | |
| Lens Type | 4 mm–40 mm |
| Max Aperture | F1.6–F3.0 |
| Field of View |
H: 50.7°–11.0°; V: 27.6°–6.3°; D: 57.6°–12.5° |
| Optical Zoom | 10x |
| Focus Control | Auto / Semi-Auto / Manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed |
| DORI Distance | Detect: 800 m
Observe: 316 m Recognize: 160 m Identify: 80 m |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0° to 355° Tilt: –15° to +90° |
| Manual Control Speed | Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s |
| Preset Speed | Pan: 35.7°/s; Tilt: 27.1°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection;
abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection,
snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first |
| SMD | Yes |
| Auto Tracking | Yes |
| Active Deterrence | |
| Light Warning | Red and blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 3 Streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080);
1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p @ (1–25/30 fps); Sub stream 1: D1/CIF/VGA @ (1–25/30 fps); Sub stream 2: 720p @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Gain Control | Auto/ Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Network | |
| Network Port | RJ-45 (10/100Base-T) |
| Network Protocol | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RT P;802.1x;HTTPS;
SNMP;TCP/IP; DDNS; UPnP; NFS; ICMP;UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interoperability | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP / SFTP; Micro SD card (512 GB); NAS |
| Browser | IE 9 and later versions
Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMSS |
| Mobile Client | IOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart-B, ANSI C63.4-2014 |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire, built-in mic (mutually exclusive)) |
| Audio Output | 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive)) |
| Alarm Input | 1/1 |
| Alarm Output | 1/1 |
| Alarm Linkage | Capture; recording; send email; preset; alarm digital input; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC, 2 A ± 10% PoE+ (802.3at) |
| Power Consumption |
Basic: 3 W Max.: 12 W (Warning light + illuminator + PTZ + speaker + heating glass) (12 VDC) Basic: 4 W Max.: 14 W (Warning light + illuminator + PTZ + speaker + heating glass) (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 142.6 mm × 140 mm × 236.1 mm (5.61″ × 5.51″ × 9.29″) |
| Net Weight | 1.5 kg (3.31 lb) |
| Gross Weight | 2.1 kg (4.63 lb) |
