AHD Cameras, AHD Surveillance, CCTV / Surveillance
Uniview UAC-T128-ADF28MS

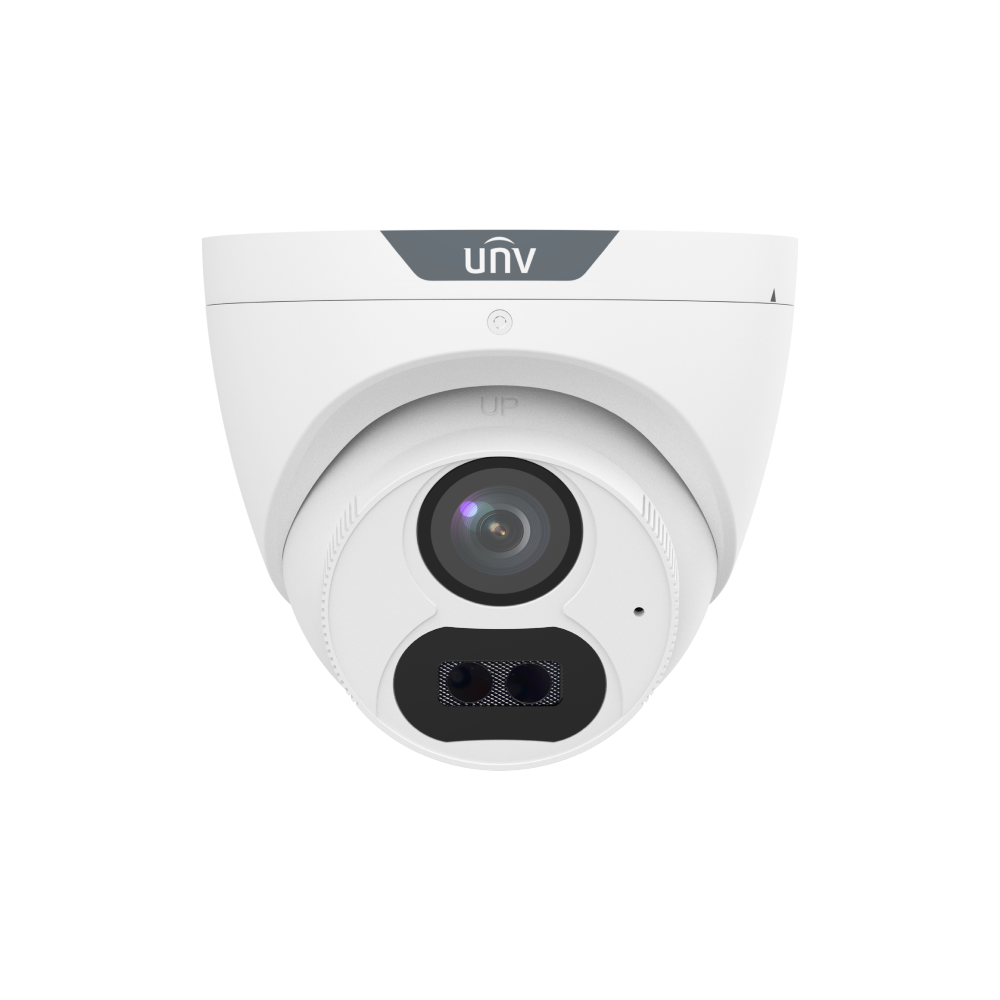

Uniview UAC-T128-ADF28MS 4K 8MP AHD (Analogue HD) LightHunter Smart-IR (40m) 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Mic – Default Video Output 8MP AHD – Video Output Switchable to HDTVI / HDCVI / CVBS
Uniview UAC-T128-ADF28MS 4K 8MP AHD (Analogue HD) LightHunter Smart-IR (40m) 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Mic – Default Video Output 8MP AHD – Video Output Switchable to HDTVI / HDCVI / CVBS
Key Features :-
- High quality imaging with 8MP resolution
- Default Video Output 8MP AHD – Video Output Switchable to HDTVI / HDCVI / CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear image in strong light scene
| Model | UAC-T128-ADF28MS | UAC-T128-ADF40MS |
| Sensor | ||
| Pixel | 8MP | |
| Size | 1/2.7″ | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
|
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 109.1° V: 61.0° D: 126.7° | H: 86.8° V: 49.4° D: 99.9° |
| Illuminator | ||
| Illuminator | Two IR illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); [email protected]: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) |
|
| Frame rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
|
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
|
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, WDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D/3D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | 120dB WDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Defog | N/A | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| General | ||
| Power | DC 12V (±25%), with reverse polarity protection, Max 4.8W | |
| Mount | Surface mount (default), optional backbox, wall mount bracket | |
| Dimensions | Φ111mm*98mm (diameter*height) | |
| Material | Metal | |
| Weight | 417g(0.92lb) | |
| OSD menu language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
|
| Certification | ||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|
| Safety | CE-LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) | |
