Utepo SFP-155M-20KM-TX/RX

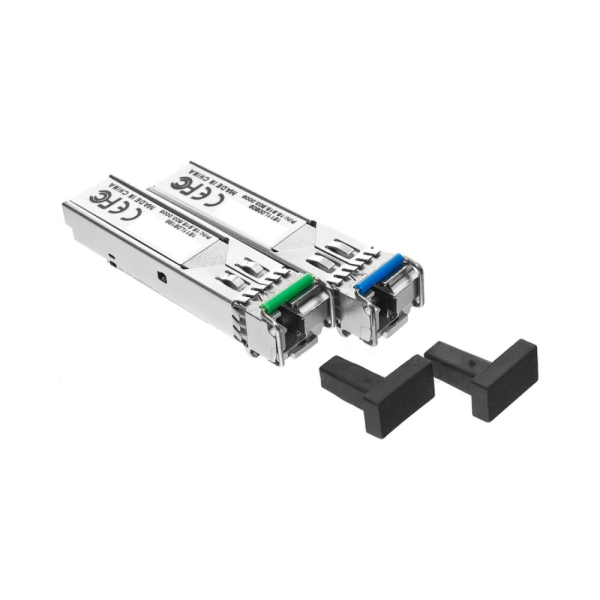

Utepo SFP-155M-20KM-TX/RX SFP Optical Module Set – Single Mode – SC Connector – 155Mbps – Single Optical Fiber – Up to 20km – Supplied as a Set – TX + Rx
SKU: SFP-155M-20KM-TR
Categories: Networking Products, SFP Transceiver Modules, Special Offers, Weekly Specials
Tags: Fibre, Network, SFP Module, Single-Mode, Utepo
Utepo SFP-155M-20KM-TX/RX SFP Optical Module Set – Single Mode – SC Connector – 155Mbps – Single Optical Fiber – Up to 20km – Supplied as a Set – TX + Rx
Features :-
- SFP package with SC connector
- 1310nm FP Laser and 1550nm PIN photodetector
- 1550nm DFB Laser and 1310nm PIN photodetector
- Up to 20Km transmission on SMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compatible with RoHS
| Item | Description | |
| Power | Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V | |
| Consumption | 1W | |
| Optical Characteristics | Optical Wave Length | 1310nm/1550nm and 1550nm/1310nm; |
| Emission Light Power | -15～-3dBm | |
| Receiver Sensitivity | -34dBm | |
| Transmission Characteristics | Optical Fiber Type | Single mode 9/125um, multi-mode 50/125um |
| Optical Fiber Port | LC | |
| Transmission Distance | Single mode 20km, multi-mode300m | |
| Protection | ESD | 1a contact discharge 3 level |
| 1b air discharge 3 level | ||
| Per: IEC61000-4-2 | ||
| Environmental | Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~70℃ | |
| Humidity (Non-condensing) | 0~95% | |
| Mechanical | Dimension（L×W×H） | 55.4mm×13.7mm×6.25mm |
| Material | Stainless Steel | |
| Color | White | |
| Weight | 17g | |
