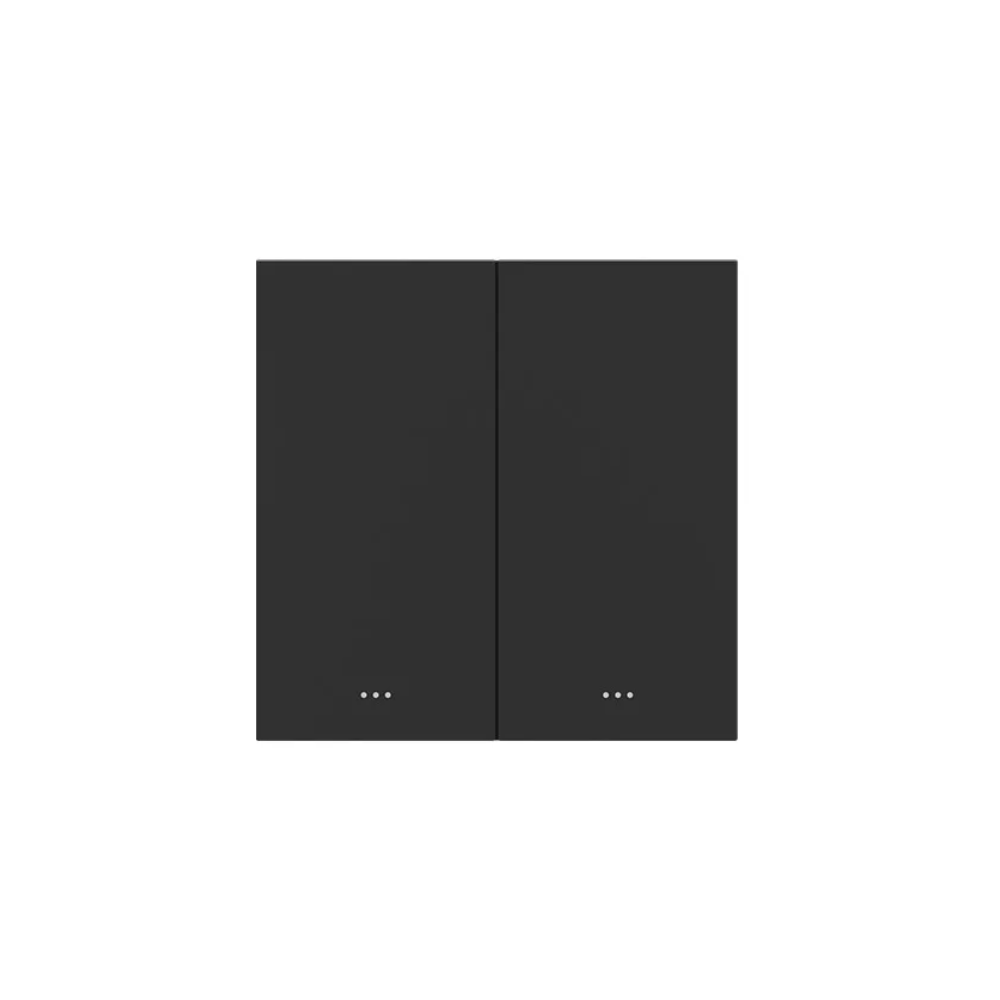

Akubela SM-2G (Black)
Akubela SM-2G (Black) 2 Gang Smart Key Switch – Black Colour – ZigBee 3.0 Protocol – Fingerprint-Resistant Soft-Touch AG Glass Switch – Wide Voltage Design – Supports control via the BelaHome app and HyPanels
Akubela SM-2G (Black) 2 Gang Smart Key Switch – Black Colour – ZigBee 3.0 Protocol – Fingerprint-Resistant Soft-Touch AG Glass Switch – Wide Voltage Design – Supports control via the BelaHome app and HyPanels
Key Features :-
- Standard ZigBee protocol, good compatibility
- Wide voltage range supply
- Super low power consumption design
- Set up and use easily
- Support BelaHome mobile APP and smart panel remote control
- Model Number: SM-2G
- Power Supply: 100 ~ 250VAC, 50/60Hz
- Working Temperture: -20~ 70°C
- Working Humidity: 0 ~ 95%RH
- Connections: ZigBee 3.0
- LED Load: 300W/Gang(Max) Resistance Load: 600W/Gang(Max)
- Wireless Consumption: <=0.2W
- Wireless Frequency: 2.4GHz
- Standard:IEE802.11b/g/n
- Shell Material: 2.5D Glass
- Surface Color: White/Black/Gold
- Product Size: 86×86×35mm
Connection Method
1. Connect the device according to the wiring diagram and power it on. The blue indicator will flash slowly (once per second)
2. Press and hold the reset button for about 5 seconds until the blue indicator flashes rapidly indicating that the device is in pairing mode
3. Add the device to the network through the gateway. Once connected, the blue indicator will stay on.
