Akuvox EC33

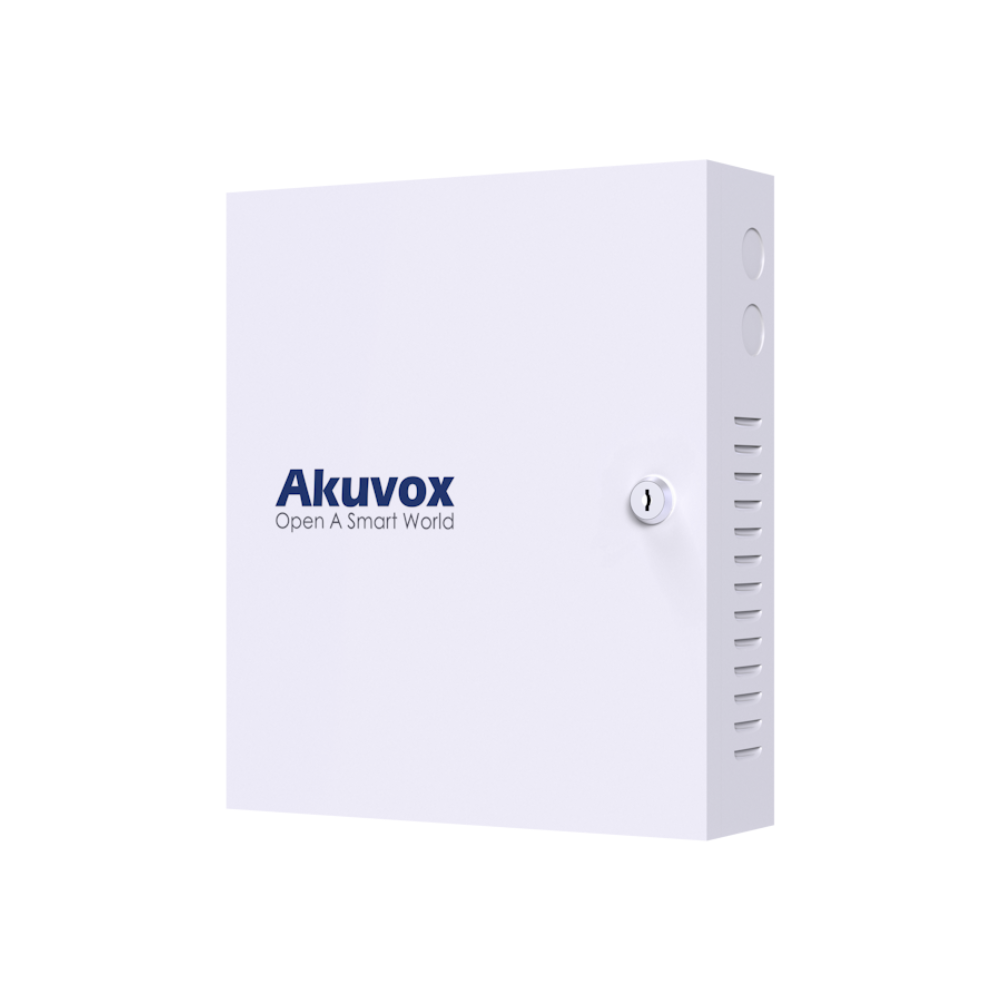

Akuvox EC33 Network IP Intelligent Elevator / Lift Access Control Unit in a Lockable Cabinet – Supports Rs485 & Wiegand – Works with Akuvox Intercoms and Access Control Terminals
SKU: EC33
Categories: Access Control, Access Control Units & Panels
Tags: Access Control, Akuvox, Controller, IP, Lift Control, Network, Wiegand
Akuvox EC33 Network IP Intelligent Elevator / Lift Access Control Unit in a Lockable Cabinet – Supports Rs485 & Wiegand – Works with Akuvox Intercoms and Access Control Terminals
Key Features :-
- TCP/IP interface
- Large storage: 20000 cards and 100000 event logs
- Have 32 outputs and supports expansion to 64 outputs
- Wiegand 26/34 supported
- Works with Akuvox intercoms and access control terminals via HTTP commands
- Fire alarm input for emergency door release or daily elevator command
- Akuvox cloud supported
Physical & Power
- Front panel: SGCC
- Power input: 100~240VAC/1.5A 50/60Hz
- Wiegand port: 4
- Relays out: 8
- Input: 13
- RS485 port: 4
- Power output: 4
- Ethernet port: RJ45, 10/100 Mbps, adaptive
- Tamper proof alarm: Support
- Status lights: Support
- Backup battery: Support
- Installation: Wall-mounted
- Dimension: 365 x 340 x 85 (mm)
- Working Humidity: 10%~90%
- Working Temperature: -10℃ ~ +55℃
- Storage Temperature: -20℃ ~ +70℃
Door Entry Feature
- 50,000 user storage
- Anti-pass back function
- Multi-door interlock function
- Access table export & import
- Access level management
- Door access logs query and export
Card Readers
- Support Wiegand 26/34/58 readers
- Support RS485 readers
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs
