Akuvox S565W

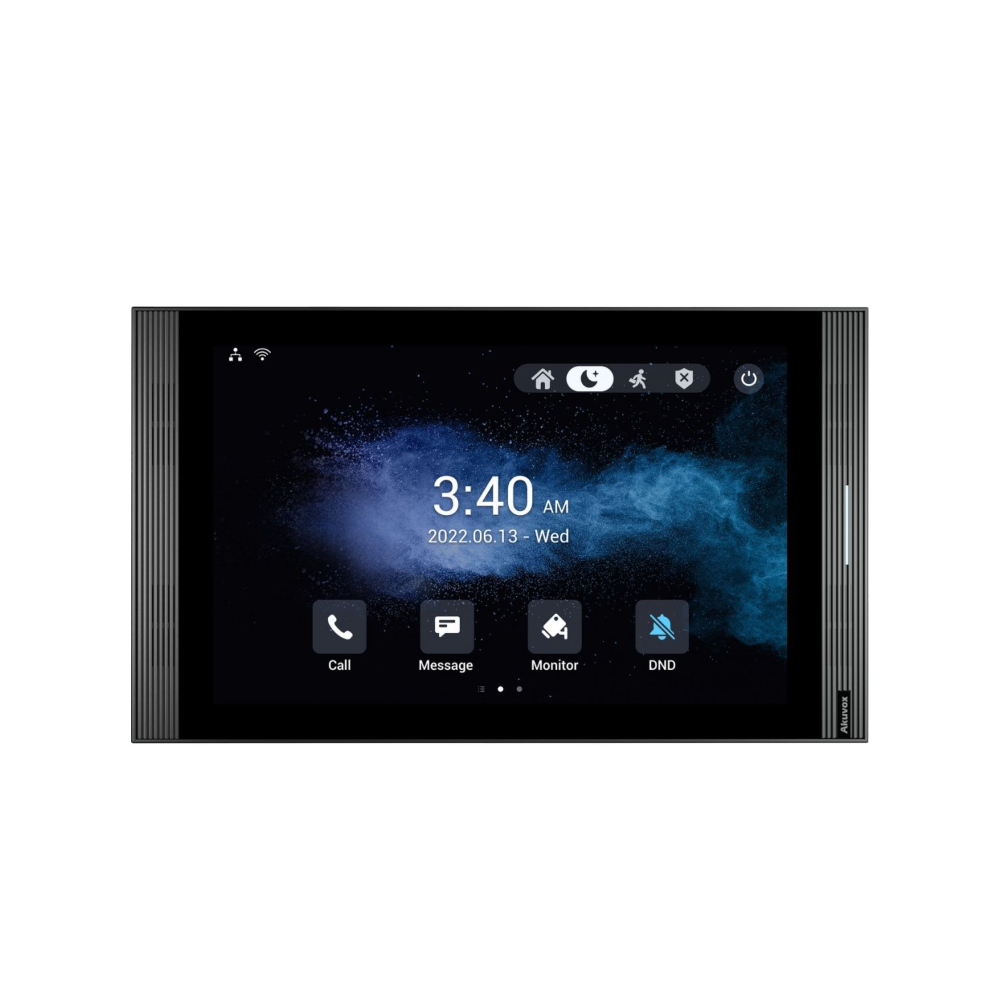

Akuvox S565W SIP PoE IP WiFi 10″ (10-Inch) Video Intercom Touchscreen Monitor – Built-in WiFi – Black Frame
SKU: S565W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 10 Inch, 2.4GHz Wireless, Akuvox, Audio, Audio Intercom, Built-in Mic, Gate Automation, Gate Control, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, WiFi, Wireless
Akuvox S565W SIP PoE IP WiFi 10″ (10-Inch) Video Intercom Touchscreen Monitor – Built-in WiFi – Black Frame
Key Features :-
- 10″ capacitive touchscreen monitor
- Linux OS
- PoE Powered
- Supports WiFi (12VDC powered if not PoE)
- 8 alarm inputs
- 1 relay output
- Supports RS485
- SIP protocol support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Microphone: Dual microphones
- Speaker: One speaker
- Ethernet Ports: 2xRJ45,10/100Mbps adaptive
- POE: 802.3af Power-over-Ethernet
- Power: 12V DC Connector
- Installation: Wall-mounted & Desktop
- Dimension: 278x164x22.8 mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
- Front panel: Plastic
- RAM / ROM: 128MB / 256MB
- Display: 10 Inch IPS LCD 1280×800 resolurion
- Screen: 10 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- RS485 port: Support
- Relay out: 1
- Bell in: 1
- I/O: 8
Touch Screen & Display
- Display Mode: Normally white, Transmissive
- LCD Size: 10inch (Diagonal)
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 350 cd/m²
- Viewing Angle: 80° Left, 80° Right,
- 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
Video
- Streaming formats: H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (including door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
