Akuvox X912S

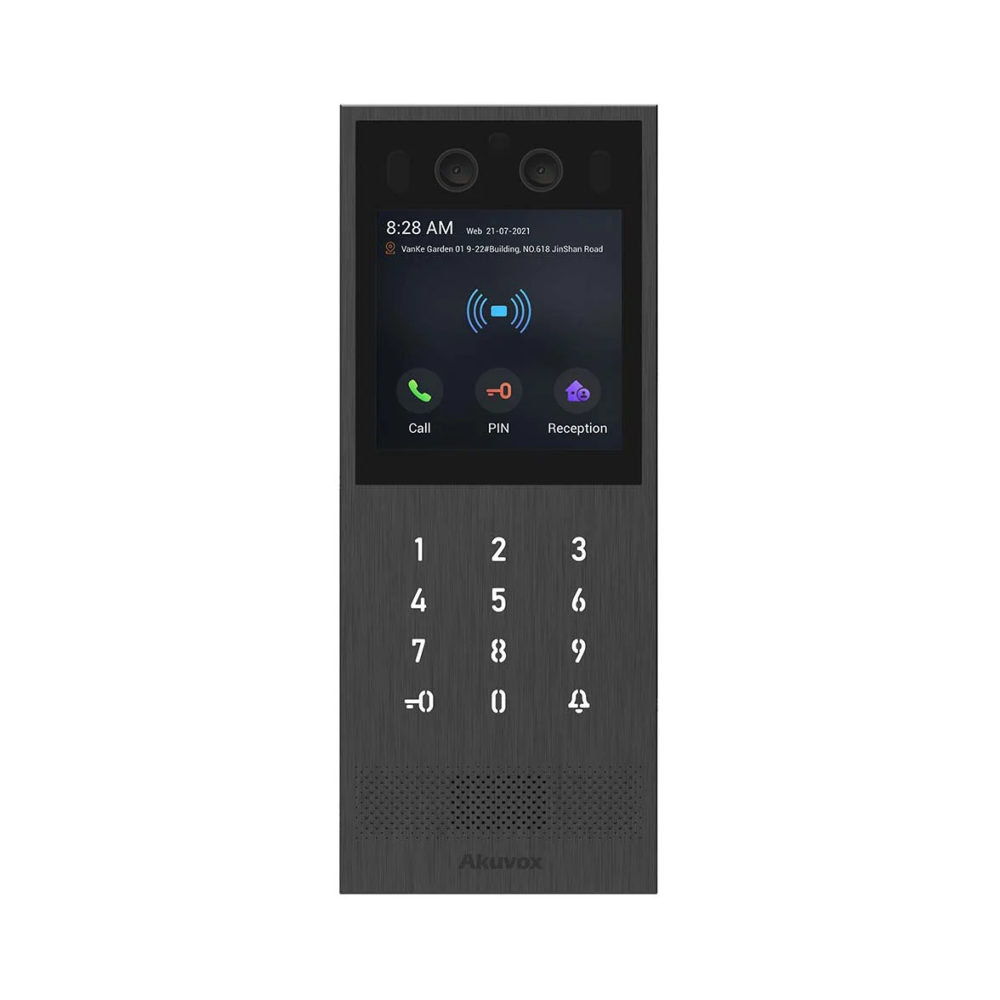

Akuvox X912S 2MP PoE IP IR H264 Weatherproof Vandal-Resistant Video Intercom Unit with 4″ Display Panel with Tough Keypad – Face Recognition – Complies with SIP & ONVIF – IP65 & IK10 Rated – Built-in Mifare & EM Card-Reader – Relay Output – Supports RS485 & Wiegand
SKU: X912S
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 125KHz, 13.56MHz, 2MP, Akuvox, Audio, Built-in Mic, Display, Doorbell, Face Capture, Face Detection, Face Recognition, Gate Automation, Gate Control, IK10 Rated, IP, IP65 Rated, Keypad, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Touchscreen, Vandalproof, Video Intercom, Weatherproof, Wiegand
Akuvox X912S 2MP PoE IP IR H264 Weatherproof Vandal-Resistant Video Intercom Unit with 4″ Display Panel with Tough Keypad – Face Recognition – Complies with SIP & ONVIF – IP65 & IK10 Rated – Built-in Mifare & EM Card-Reader – Relay Output – Supports RS485 & Wiegand
Key Features :-
- 2MP Video Camera with 125° horizontal wide angle view
- Face recognition support
- Integrated 4″ LED display + metal keypad
- IP65 rated weatherproof
- IK10 rated vandalproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Linux operating system
- Body material: Stainless Steel
- Built-in gesture detection sensor
- Supports RS485
- Supports wiegand
- Two relay output
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Stainless steel
- Display: 4 Inch, color TFT LCD, touchable
- Camera: 2M pixels
- Numeric keypad
- Gesture detection sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz, NFC
- Relays out: 2
- Inputs: 3
- BLE：Support
- Line out: 1
- Microphone: -42dB
- Speaker: 8Ω / 2W
- Power out: 12V/1A（Max.）
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3at Power-over-Ethernet
- 12V DC connector (if not using PoE+)
- IP & IK rate: IP65 & IK10
- Installation: Wall-mounted
- Dimension: 234×94.5x34mm
- Working Humidity: 10~90%
- Working Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8”, CMOS for main camera
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video technology: HDR
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 125°(H) / 65°(V)
- Compatible to 3rd-Party-Video components, e.g. NVRs
Networking and Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, IC/ID Card, PIN and BLE
- Camera permanently operational
- White balance: auto
- Minimum illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
