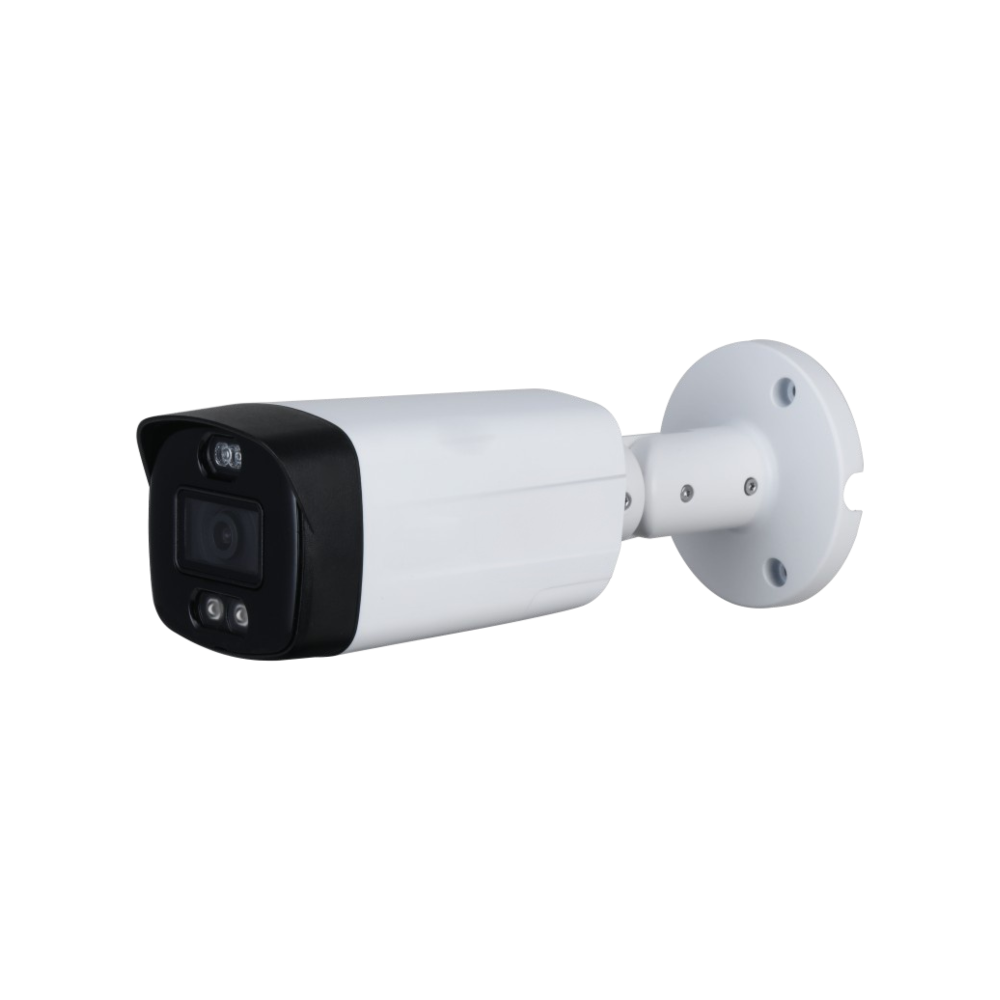

D-Tech DH-HAC-ME1809TH-A-PV-0360B

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

Pixel

4K

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s

NTSC: 1/4 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6, 0 Lux warm light on

Illumination Distance

40 m (131.2 ft)

Illumination Type

Warm light

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm

Max. Aperture

3.6 mm: F1.6

Field of View

3.6 mm: H: 89°; V: 46°; D: 105°

Iris Type

Fixed iris

Close Focus Distance

3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

110.3 mm (361.88 ft)

44.1 m (144.69 ft)

22.1 m (72.51 ft)

11 m

(36.09 ft)

Video

Frame Rate

CVI:

4K@15 fps/25 fps/30 fps, 4M@25 fps/30 fps;

AHD:

4K@15 fps;

TVI:

4K@15 fps

Resolution

4K (3840 × 2160); 4M (2560 × 1440)

BLC Mode

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
IEC 62368-1:2014 (Second Edition)

Port

Video Output

1 BNC output
Support CVI/TVI/AHD

Audio Input

Built-in mic

Alarm out

1ch alarm out

Active Deterrence

Red/Blue Light Warning

Flash: 5 s–30 s; frequency: high/medium/low

Sound Warning

Audio 1/2/3; Volume: high/medium/low;

duration: 5 s–30 s; 110 dB

Power

Power Supply

12V±30% DC

Power Consumption

Max 7.7W (12V DC, warm light on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Ingress Protection

IP67

Structure

Casing

Cover: Metal
Rear: Plastic
Pedestal: Metal

Camera Dimensions

240.7 mm × Φ90.7 mm (9.48″ × Φ3.57″)

Net Weight
