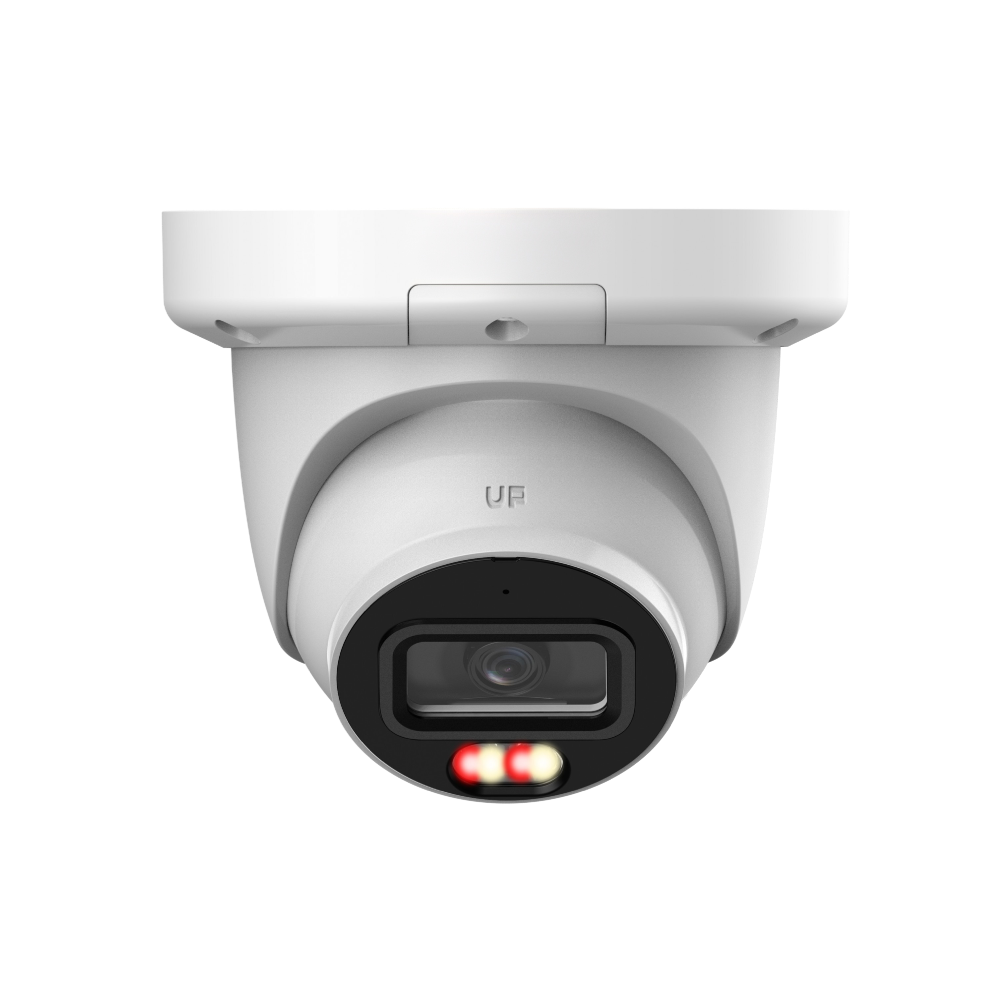

D-Tech DH-IPC-HDW3649QM-S-IL-0280B

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

3288 (H) × 1850 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–80°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.4

Field of View

2.8 mm: H: 110°; V: 58°; D: 132°
3.6 mm: H: 86°; V: 49°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.4 m (4.59 ft)
3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Face Detection (Full Image)

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI Coding

AI H.265; AI H.264
*includes SmartCodec Technology，Smart H.264+ /H.265+

Video Frame Rate

Main stream: 3288 × 1850@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

3 streams

Resolution

6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR;ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE11;
Chrome;
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC/PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.7 W (12 VDC); 5.3 W (PoE);
Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

105.5 mm × Φ122.0 mm (4.16″ × Φ4.80″)

Net Weight

0.53 kg (1.17 lb)

Gross Weight

0.71 kg (1.57 lb)
