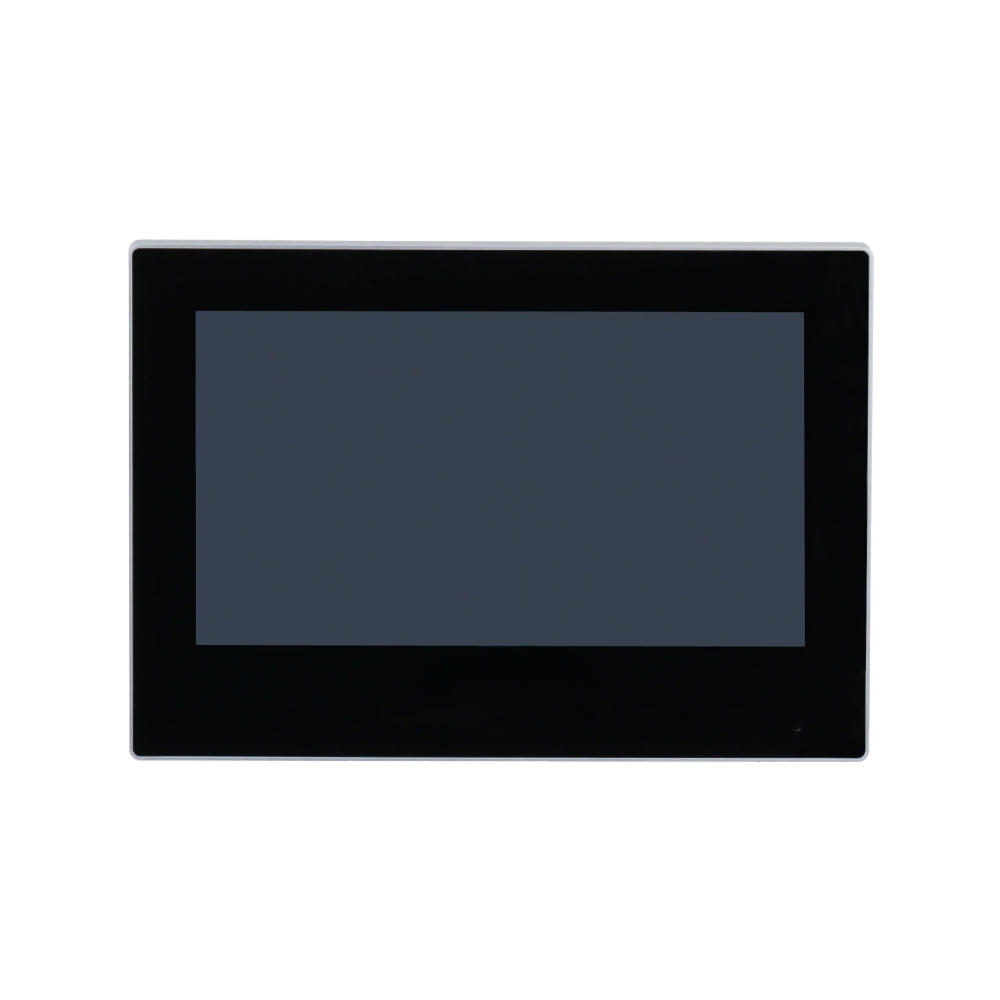

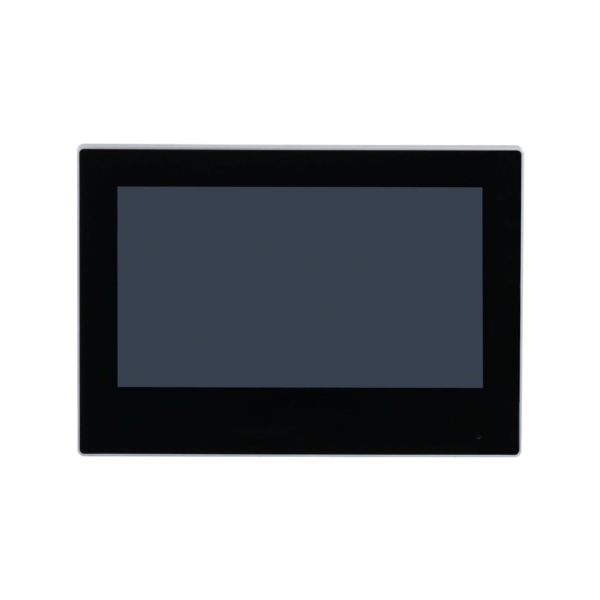

D-Tech DH-VTH2621G-WP

Technical Specification

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF; SDK

Network Protocol

RTSP; RTP; SIP; DNS; SSH

ROM

128 MB

RAM

128 MB

CPU

Dual core 1.2 GHz

Basic

Screen Type

Capacitive Touchscreen

Display

7″ TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

116 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9

Apartment: 4

Wi-Fi intercom: 1 main monitor, 2 extension monitors

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2,412–2,472 MHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Performance

Casing

PC + ABS

Port

Alarm Input

6

Alarm Output

1

Door Bell

Yes (use any alarm input port)

Network

One 10 /100 Mbps Ethernet

Storage

Micro SD Card, Max 64 GB (reserved for software)

General

Appearance Color

Black/White

Power Supply

12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE; FCC

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50″ × 5.30″ × 1.00″)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 2W; working ≤ 6W

Net Weight

0.34 kg (0.74 lb)

Gross Weight

0.58 kg (1.27 lb)
