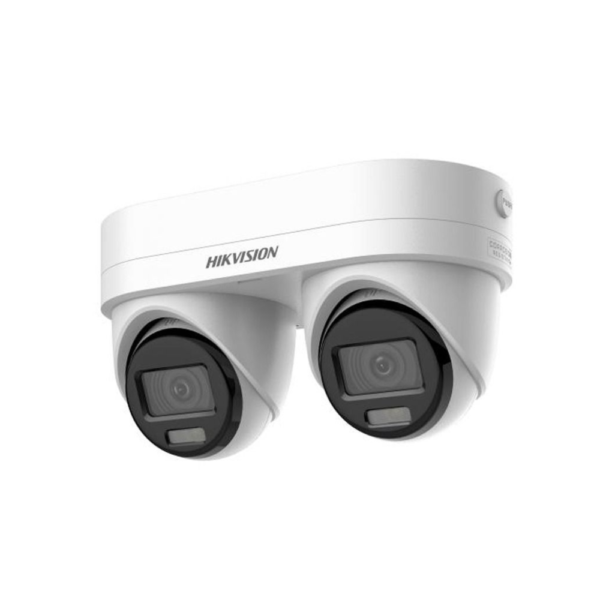

Hikvision DS-2CD2346G3D-IS2UY/SL

Camera

• Image Sensor: Channel 1: 1/3″ Progressive Scan CMOS; Channel 2: 1/3 Progressive Scan CMOS”
• Max. Resolution: Channel 1: 2688 × 1520; Channel 2: 2688 × 1520
• Min. Illumination: Channel 1: Color: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR; Channel 2: Color: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: Channel 1: IR cut filter; Channel 2: IR cut filter
• Angle Adjustment: Channel 1: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°; Channel 2: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Channel 1: Varifocal lens, motorized lens – 2.8mm and 4mm; Channel 2: Varifocal lens, motorized lens – 2.8mm and 4mm
• Focal Length & FOV:
  • • Channel 1:
      • 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°
      • 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°
    • Channel 2:
      • 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°
      • 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°

• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field: 2.8 mm: 1.2 m to ∞; 4 mm: 1.5 m to ∞

DORI

• DORI:
  • Channel 1:
    • 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m
    • 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m
  • Channel 2:
    • 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m
    • 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • Channel 1 & Channel 2: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • Channel 1 & Channel 2: 50 Hz: 25 fps (768 × 432,640 × 360); 60 Hz: 30 fps (768 × 432,640 × 360)
• Third Stream:
  • Channel 1 & Channel 2: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) – *Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 – *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream and third stream
• Target Cropping: Yes

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) – Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Image Parameters Switch: Yes
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Settings: Rotate mode
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key: Yes
• Built-in Speaker: 1* built-in speaker, Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 110 dB.
• Audio: Built-in Microphone: Arrayed dual-microphone

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

General

• Power: 12 VDC ± 25%, 1.42 A, max. 17 W, two-core terminal block, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W
• Material: Metal
• Dimension: 199.9 mm × 120.1 mm × 97.2 mm (7.9″ × 4.7″ × 3.8″)
• Package Dimension: 305 mm × 162 mm × 165 mm (12.0″ × 6.4″ × 6.5″)
• Weight: Approx. 1200 g (2.6 lb.)
• With Package Weight: Approx. 1567 g (3.5 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Flashing Light: -SL: White Light

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006; NEMA 4X (NEMA 250-2018)
• Protection: IP67: IEC 60529-2013
