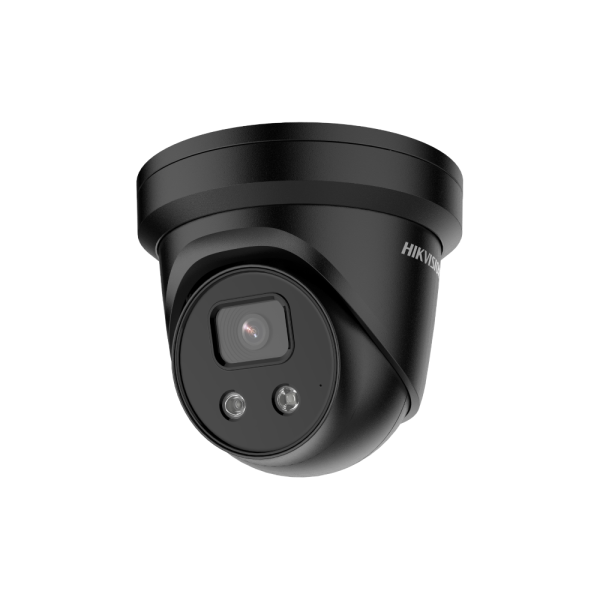

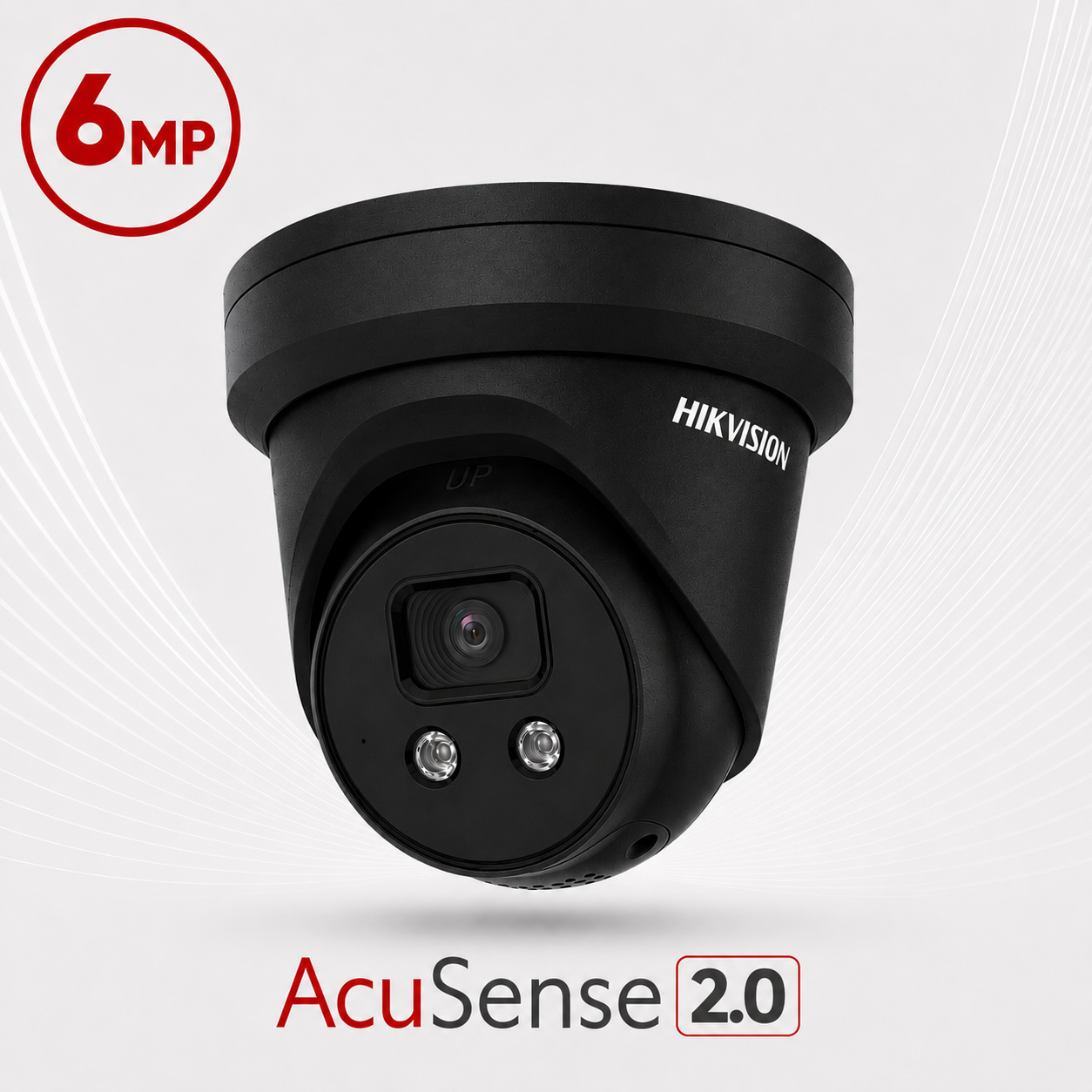

Hikvision DS-2CD2366G2-ISU/SL-BLK-2.8MM AcuSense Gen 2 H265 6MP PoE IP Darkfighter-Powered Low-Light (0.003 Lux) EXIR (30m) 120dB True-WDR Weatherproof Black Eyeball Turret Camera with 2.8mm Fixed Lens, with Built-in Audio Mic + Speaker + Strobe + Siren – With Audio In/Out & Alarm In/Out

Features :-

  • 6MP high resolution
  • 2.8mm fixed lens
  • Powered by Darkfighter for Ultra Low Light
  • Triple stream
  • Up to 30m IR distance
  • H.265+ compression
  • 4 analytics
  • Face Capture
  • Smart motion detection
  • IP67 weatherproof
  • 120dB wide dynamic range
  • Built in microphone
  • Built in speaker
  • Active strobe light and audio alarm to warn intruders off
  • Supports on board storage (up to 256GB)
  • 12VDC & PoE (802.3af)

Hikvision Product-Link = DS-2CD2366G2-ISU/SL

Camera

  • Image Sensor: 1/2.4″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/NP/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

  • Lens Type: Fixed focal lens, 2.8mm
  • Iris Type: Fixed
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°; 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°; 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5°
  • Aperture: F1.6
  • Lens Mount: M12

Illuminator

  • Supplement Light Type: IR
  • IR Range: Up to 30 m
  • IR Wavelength: 850 nm
  • Smart Supplement Light: Yes
  • Visual Alarm: Yes

Video

  • Max. Resolution: 3200 × 1800
  • Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Audio Type: Mono sound
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+


  • SNR: ≥ 52 dB
  • Target Cropping: Yes
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

  • Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Built-In Microphone: Yes
  • Built-In Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Hardware Reset: Yes
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Scene change detection

Deep Learning Function

  • Face Capture: Yes
  • Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification

General

  • Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
  • Web Client Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Software Reset: Yes
  • Firmware Version: V5.5.113
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
  • Power Consumption And Current: 12 VDC, 0.70 A, max. 8.4 W; PoE (802.3af, 36 V to 57 V), 0.27 A to 0.16 A, max. 9.7 W
  • Power Interface: Ø5.5 mm coaxial power plug
  • Camera Material: Metal except for trim ring
  • Camera Dimension: Ø138.3 mm× 112.1 mm (Ø5.4″ × 4.4″)
  • Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
  • Camera Weight: Approx. 820 g (1.8 lb.)
  • With Package Weight: Approx. 1150 g (2.5 lb.)

Approval

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
