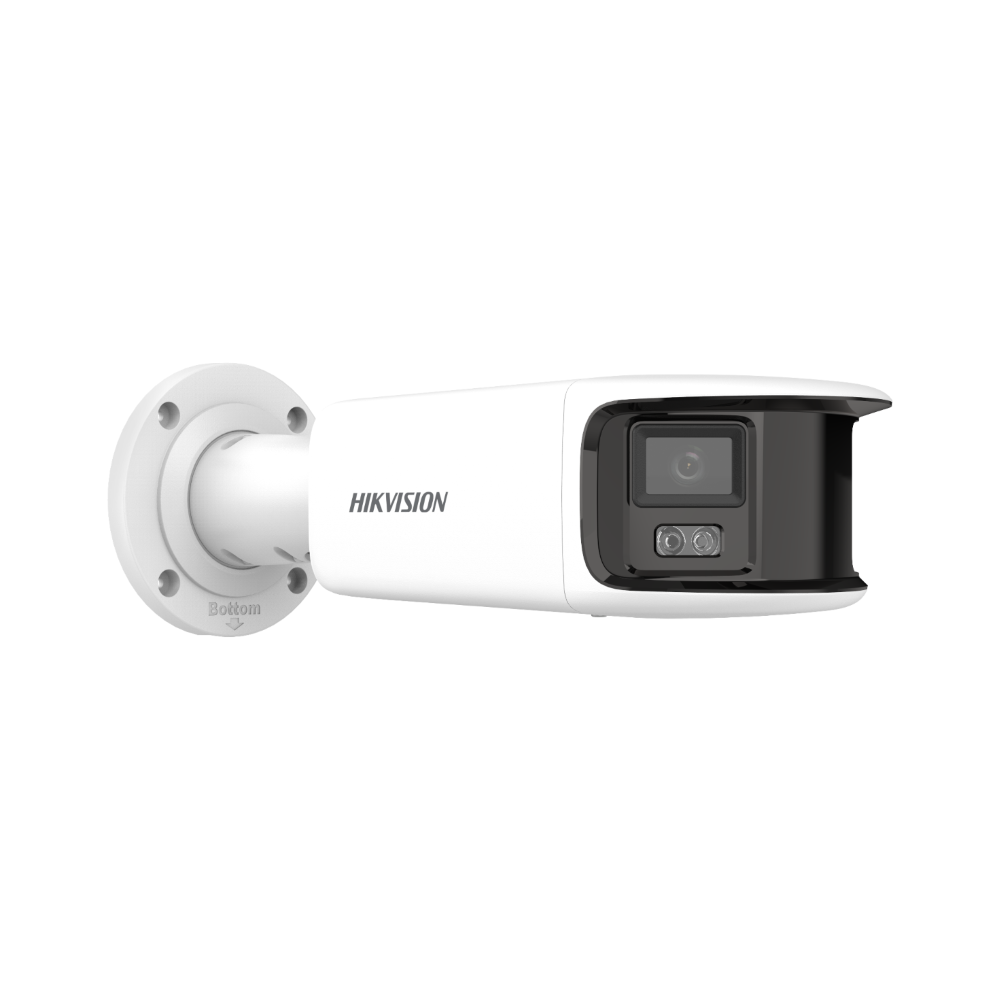

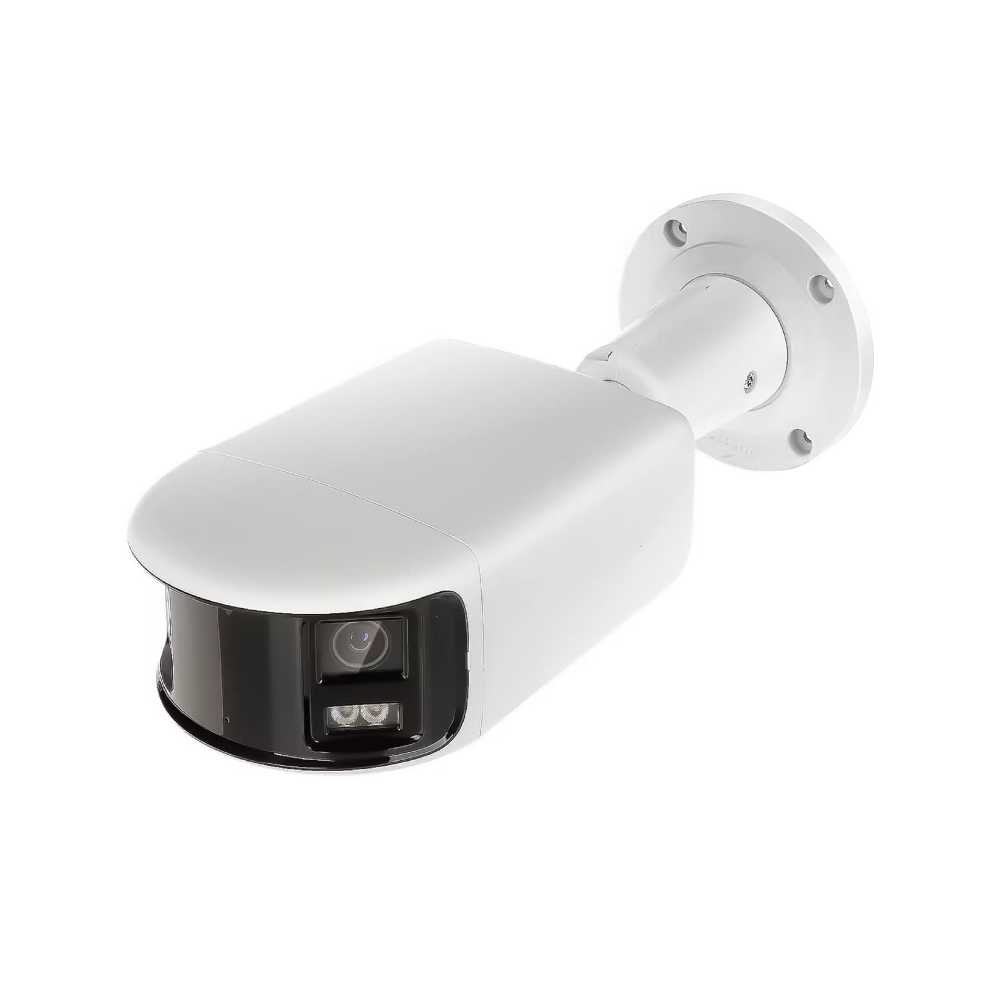

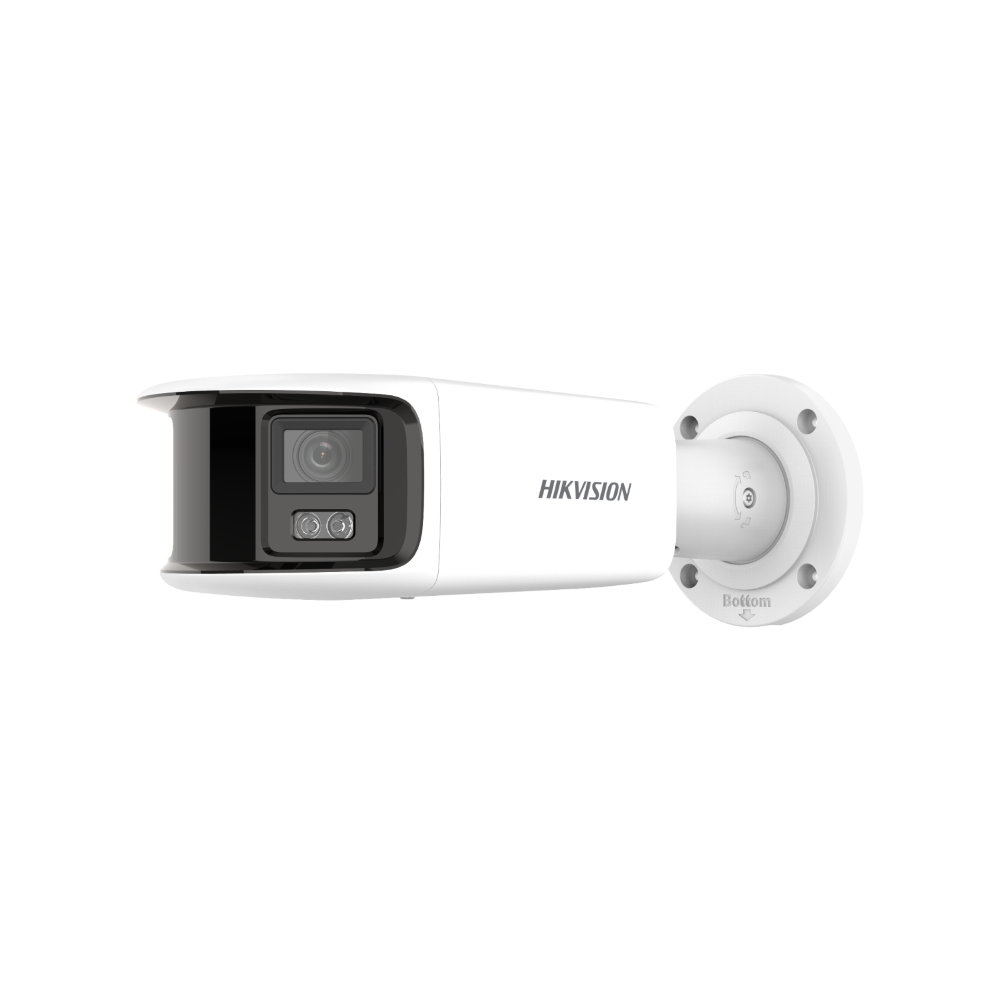

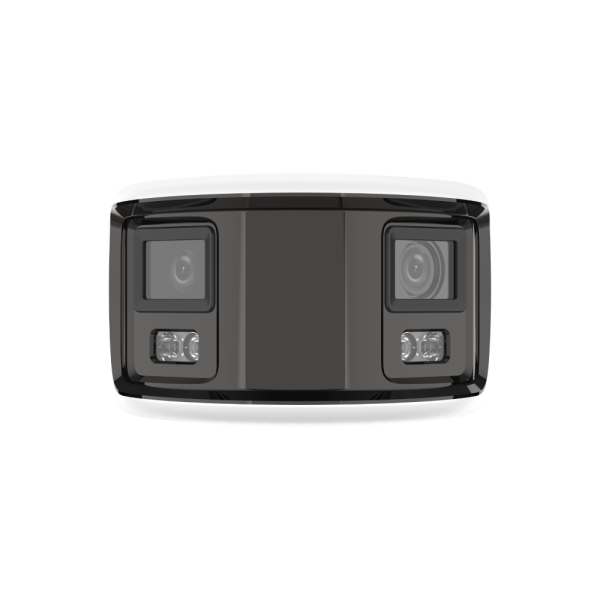

Hikvision DS-2CD2T67G2P-LSU/SL
Hikvision DS-2CD2T67G2P-LSU/SL Pro-series Panoramic Dual-Sensor ColorVu AcuSense Deep-Learning AI (Artificial Intelligence) H265 6MP PoE IP White-Light (40m) 130dB True-WDR Active-Deterrence Weatherproof Bullet Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
SKU: DS-2CD2T67G2P-LSU/SL
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 130dB True-WDR, 180 Degree, 2-Way Audio, 6MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, ColorVu, Deep Learning, Dual-Lens Camera, Dual-Sensor Camera, Full Colour, H265, Hikvision, Human Detection, IP Camera, IP67 Rated, Live-Guard, Network Camera, Panoramic, Perimeter Protection, PoE, Siren, Smart Dual Light, Speaker, Strobe, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2CD2T67G2P-LSU/SL Pro-series Panoramic Dual-Sensor ColorVu AcuSense Deep-Learning AI (Artificial Intelligence) H265 6MP PoE IP White-Light (40m) 130dB True-WDR Active-Deterrence Weatherproof Bullet Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
Key Features :-
- High quality imaging with 6MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
Important Note 1 * Water ingress and condensation issues in CCTV cameras are generally not covered under standard manufacturer warranties, especially if caused by external factors like rain, lightning, fire or improper installation.
Important Note 2 * Always use correct mounting accessories with the cameras and use weatherproof glands or joiners for connection-joints and use sealant to waterproof the camera and accessory installation.
Camera
- Image Sensor: 2 × 1/2.5″ Progressive Scan CMOS
- Max. Resolution: 3632 × 1632
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°
Lens
- Lens Type: Fixed focal lens, Dual lens: 2.8 mm
- Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field: 2m to ∞
DORI
- DORI: 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 40m
- Smart Supplement Light: Yes
Video
- Main Stream: 50 Hz: 20 fps (3632 × 1632); 60 Hz: 20 fps (3632 × 1632)
- Sub-Stream: 50 Hz: 20 fps (1200 × 536, 960 × 432); 60 Hz: 20 fps (1200 × 536, 960 × 432)
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region(s) for main stream
Audio
- Audio Type: Mono sound
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz /16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSocket
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256 GB
- Built-In Microphone: Yes
- Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
- Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
General
- Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Material: Front cover: metal, body: metal, bracket: metal
- Dimension: 118.6 mm × 105.1 mm × 306.5 mm
- Package Dimension: 405 mm × 190 mm × 180 mm
- Weight: Approx. 1400 g
- With Package Weight: Approx. 2100 g
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
- Flashing Light: Yes
Approval
- EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
