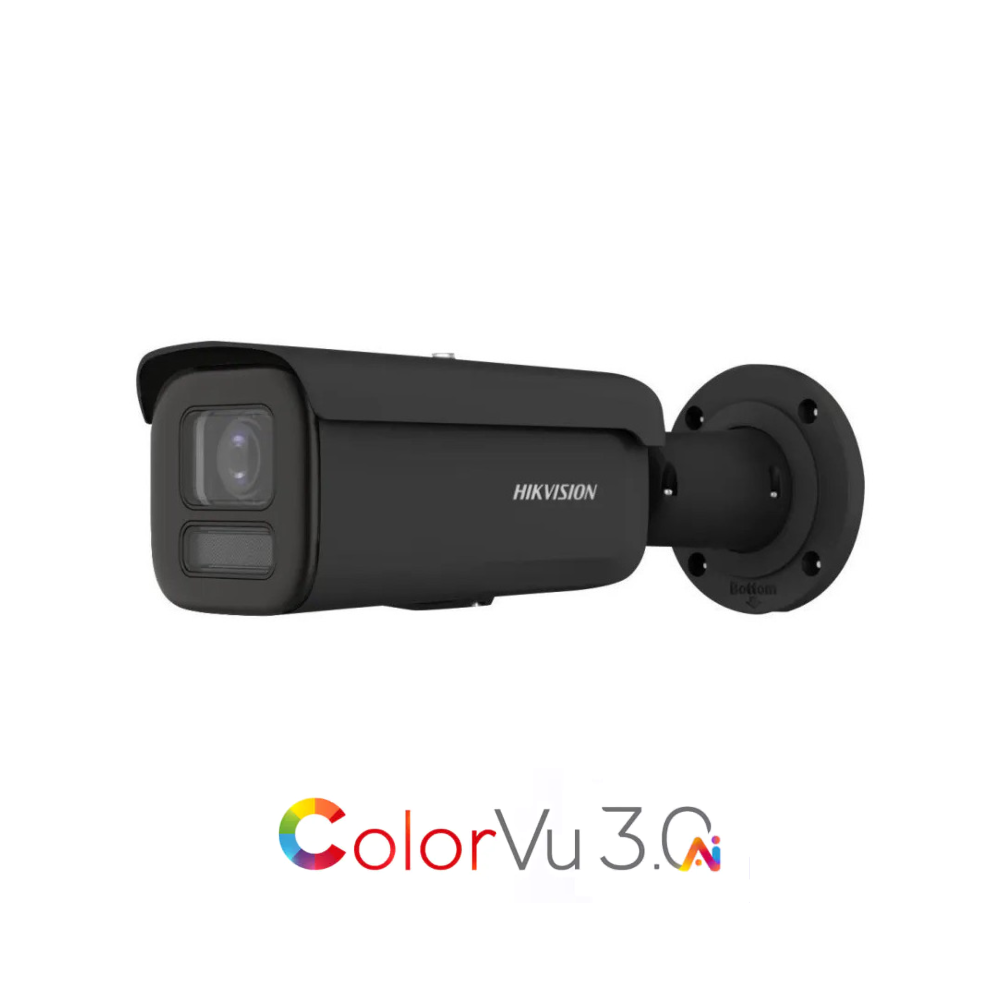

Hikvision DS-2CD2T87G3-LIS2UY/SL-BLK-2.8MM
Hikvision DS-2CD2T87G3-LIS2UY/SL-BLK-2.8MM Pro-series ColorVu AcuSense Active-Deterrence H265 4K 8MP PoE IP Smart Hybrid Light (60m IR + 60m White-Light) 130dB Ultra-WDR Weatherproof BLACK Bullet Camera with 2.8MM Fixed Lens – 2-Way Audio + Strobe + Siren
SKU: DS-2CD2T87G3-LIS2UY/SL-BLK-2.8MM
Categories: CCTV / Surveillance, IP Bullet Cameras, IP Cameras, IP Surveillance
Tags: 2-Way Audio, 4K Resolution, 8MP, Active Deterrence, AcuSense, AcuSense 3.0, Adaptive WDR, AI, Anti corrosion, Artificial Intelligence, Built-in Mic, Bullet Camera, Camera, ColorVu 3.0, Deep Learning, Fixed Lens, Full Colour, H265, Hikvision, Human Detection, IP Camera, IP67 Rated, IR, NEMA-4X, Network Camera, Perimeter Protection, PoE, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2CD2T87G3-LIS2UY/SL-BLK-2.8MM Pro-series ColorVu AcuSense Active-Deterrence H265 4K 8MP PoE IP Smart Hybrid Light (60m IR + 60m White-Light) 130dB Ultra-WDR Weatherproof BLACK Bullet Camera with 2.8MM Fixed Lens – 2-Way Audio + Strobe + Siren
Key Features :-
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- Provide real-time security via built-in two-way audio
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Audio and alarm interface available
- Water and dust resistant (IP67)
- Active strobe light and audio alarm to warn intruders off
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8mm
- Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field: 2.8mm: 3.3 m to ∞
DORI
- DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Illuminator
- Supplement Light Type: IR, White Light
- Supplement Light Range: Up to 60m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
Video
- Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)* *Third stream is supported under certain settings.
- Video Compression: Main stream: H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264 *Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR, Defog
- SNR: ≥ 52 dB
- Wide Dynamic Range (WDR): 130 dB
- Privacy Mask: 4 programmable polygon privacy masks
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB
- Audio: Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger capture, send email, trigger alarm output, trigger recording, audible warning, strobe light
- Smart Event: Scene change detection
Deep Learning Function
- Face Capture: Yes
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC ± 25%, 1.41 A, max. 17 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3at, Class 43, max. 18 W
- Material: Front cover: metal, body: metal, bracket: Metal
- Dimension: 286.7 mm × 93.3 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″)
- Package Dimension: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
- Weight: Approx. 1250 g
- With Package Weight: Approx. 1800 g
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing Light: /SL model: White Light
Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013
