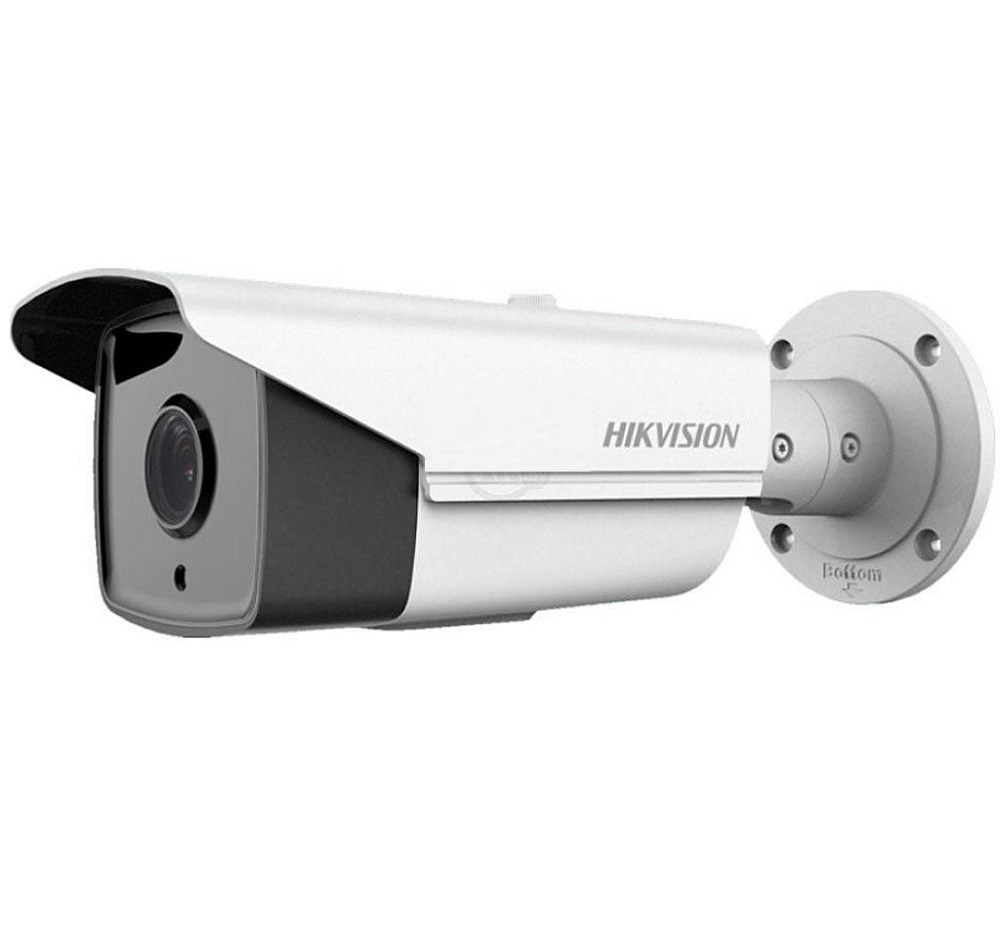

Hikvision DS-2CE16H8T-IT3F
Hikvision DS-2CE16H8T-IT3F Pro-series HDTVI 5MP Ultra-Low-Light (0.003 Lux Color) IR (60m) 130dB True-WDR Weatherproof Bullet Camera with 2.8MM Fixed Lens – Default Video Output 5MP HDTVI – Video Output Switchable to HDCVI / AHD / CVBS
SKU: DS-2CE16H8T-IT3F
Categories: HDTVI Bullet Cameras, HDTVI Cameras, HDTVI Surveillance
Tags: 130dB True-WDR, 5MP, AHD, Analogue CCTV, Bullet Camera, Camera, CVBS, Fixed Lens, HDCVI, HDTVI, Hikvision, IR, Pro Series, Weatherproof
Hikvision DS-2CE16H8T-IT3F Pro-series HDTVI 5MP Ultra-Low-Light (0.003 Lux Color) IR (60m) 130dB True-WDR Weatherproof Bullet Camera with 2.8MM Fixed Lens – Default Video Output 5MP HDTVI – Video Output Switchable to HDCVI / AHD / CVBS
Features :-
- 5MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- Default Video Output 5MP HDTVI – Video Output Switchable to HDCVI / AHD / CVBS
Camera
- Image Sensor: 5MP progressive scan CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV: 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
- Lens Mount: M12
- Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥ 130 dB
- Image Enhancement: BLC
- Privacy Mask: 4 programmable privacy masks
- Noise Reduction: Level 1 to 9
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
Event
- Motion Detection: 4 programmable areas
General
- Material: Metal
- Dimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22″ × 3.41″ × 8.58″)
- Approx. 570 g (1.26 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: 12VDC ± 25%,*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 5.8 W
- IR Range: Up to 60m
Approval
- Protection: IP67
