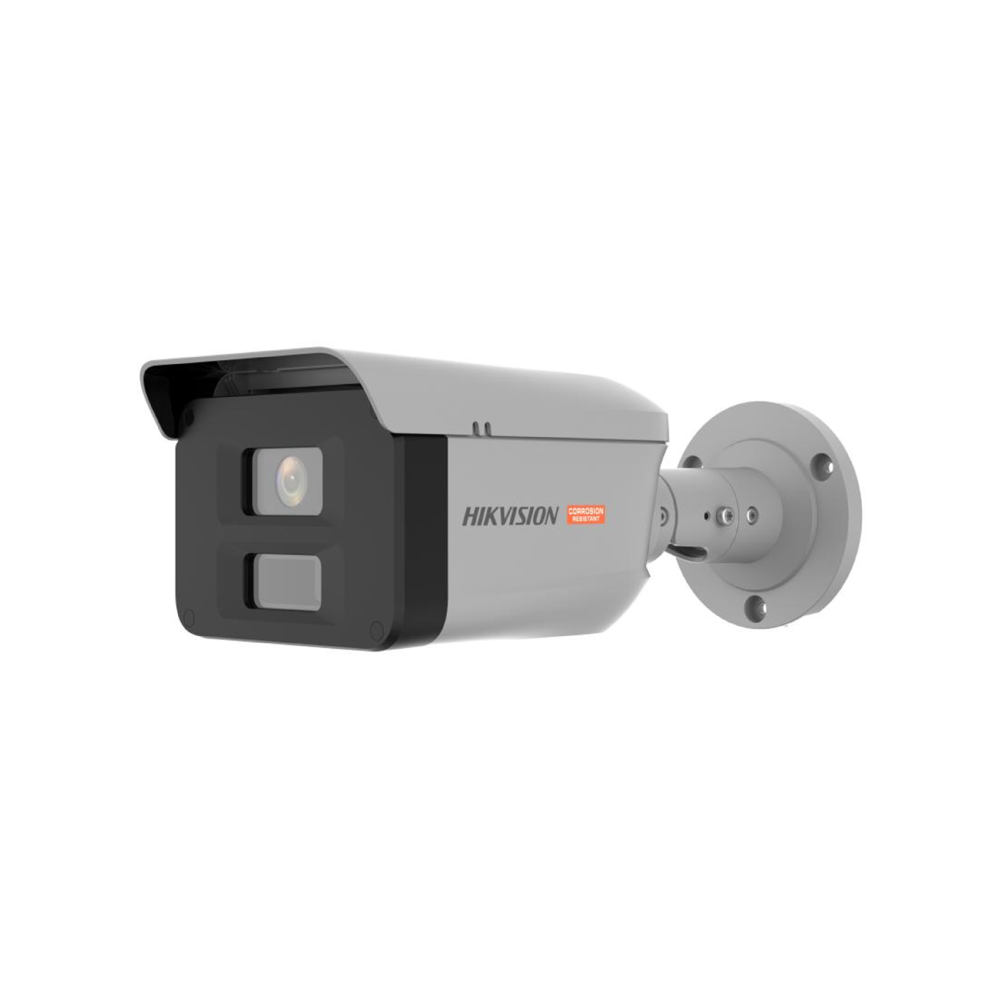

Hikvision DS-2XC6047G0-LS

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time: 1 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Focal Length & FOV: 2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84°
• Iris Type: Fixed
• Aperture: F1.0

DORI

• DORI: 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes

HEOP

• Open Resources: Memory: 60 MB, Smart RAM: 350 MB, eMMC: 2 GB
• Computing Power: 1.5 TOPS
• Deep Learning Structure: Caffe, PyTorch, TensorFlow
• Programming Language: C, C++

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264 /H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.265 and H.264 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Target Cropping: Yes

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Type: Mono sound

Network

• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface, ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
• Wide Dynamic Range (WDR): 120 dB
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger (-S)
• Image Enhancement: BLC, HLC, 3D DNR, Defog
• Image Parameters Switch: Yes
• SNR: ≥ 50 dB
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 100Mbps Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
• RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, white light flashing

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

General

• Power: DC: 9 to 36 V, 0.8 A, max. 7.2 W; PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W
• Material: Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
• Dimension: 250.5 mm × 105.6 mm × 91.9 mm (9.86″ × 4.16″ × 3.62″)
• Package Dimension: 315 mm × 137 mm × 141 mm (12.41″ × 5.40″ × 5.56″)
• Weight: Appox. 0.76 kg (1.68 lb.)
• With Package Weight: Appox. 1.12 kg (2.47 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP68: IEC 60529-2013
• Anti-Corrosion Protection: C5, NEMA 4X (NEMA 250-2018)
