Hikvision DS-96128NI-I16

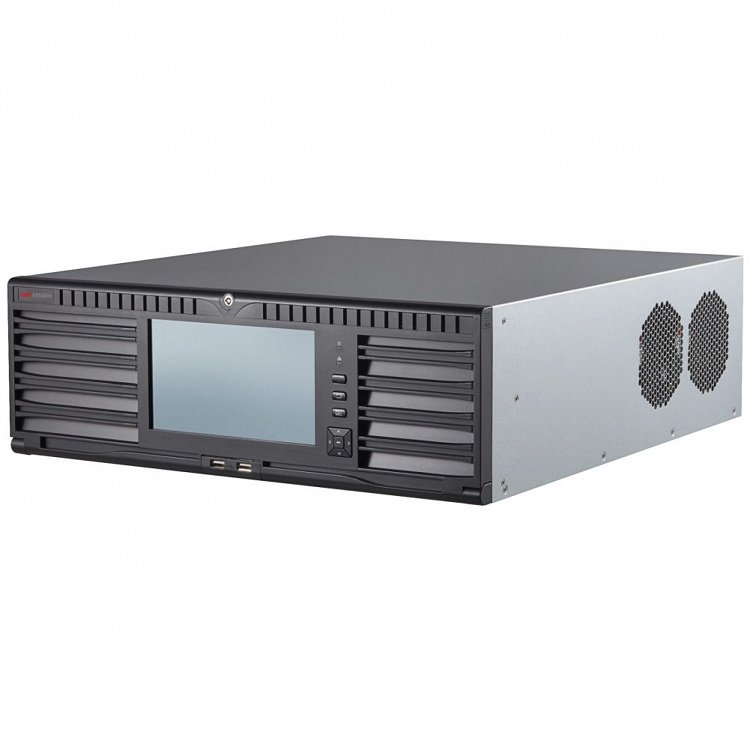

Hikvision DS-96128NI-I16 Ultra-series 3U 4K Rackmount 128-Channel NVR – No HDD
SKU: DS-96128NI-I16
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 128-Channel, 12MP, 4K Resolution, H265, Hikvision, Network Video Recorder, NVR, Rackmount
Hikvision DS-96128NI-I16 Ultra-series 3U 4K Rackmount 128-Channel NVR – No HDD
Key Features :-
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support up to 14-ch HDMI, 1-ch VGA at up to 1920×1080P
- and 1 LCD touch screen simultaneous outputs
- Up to 128/256 IP cameras can be connected with
- 400M / 640M incoming bandwidth
- Up to 16 x SATA interfaces
- Support redundant power supply to improve the system
- stability
- Support HDD hot swap with RAID 0, 1, 5, 10 storage
- scheme configurable
- Support various VCA detection alarm and VCA search
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 2 x HDMI ports (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI
- 16 x 3.5″ SATA HDD ports (max. 10TB HDD per port)
- 1 x eSATA port
- 1 x RS232 port
- 1 x RS485 port
- 4 x USB ports (two front, two rear)
- 4 x LAN ports (10/100/1000Mbps)
- 16 x Alarm input ports
- 8 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
RAID
- RAID Type: RAID0, RAID1, RAID5, RAID 6, and RAID10
External Interface
- Two-Way Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Extension Board (Optional): One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
- Serial Port: 1 RS-485, Keyboard
- USB Interface: Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
- Alarm In/Out: 16/8
General
- Power Supply: 100 to 240 VAC, 550W
- Consumption (Without HDD): ≤ 140W
- Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × D × H): 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
- Weight (Without Hard Disk): ≤ 16 kg (35.3 lb)
- Fan: Redundant dual ball bearing fan; Speed adjustable; Hot-plug
- Chassis: 3U
Network Management
- Protocol: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
- Network Interface: 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Video & Audio Input
- IP Video Input: 128-ch
- Incoming/Outgoing Bandwidth: 576 Mbps/512 Mbps
- Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Video & Audio Output
- HDMI Output: Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- VGA Output: 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- LCD Output (Optional): One 7 inch LCD
- Audio Output: 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Video & Audio Decoding
- Decoding Format: H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
- Video Resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: Up to 16 channels
- Capability: 20-ch@1080p
HDD
- Interface: 16 SATA interfaces supporting hot-plug
- Capacity: Up to 10 TB for each HDD
- Storage Extension: 1 × eSATA interface, 2 × mini SAS interface (optional)
