Hikvision DS-KD-DIS

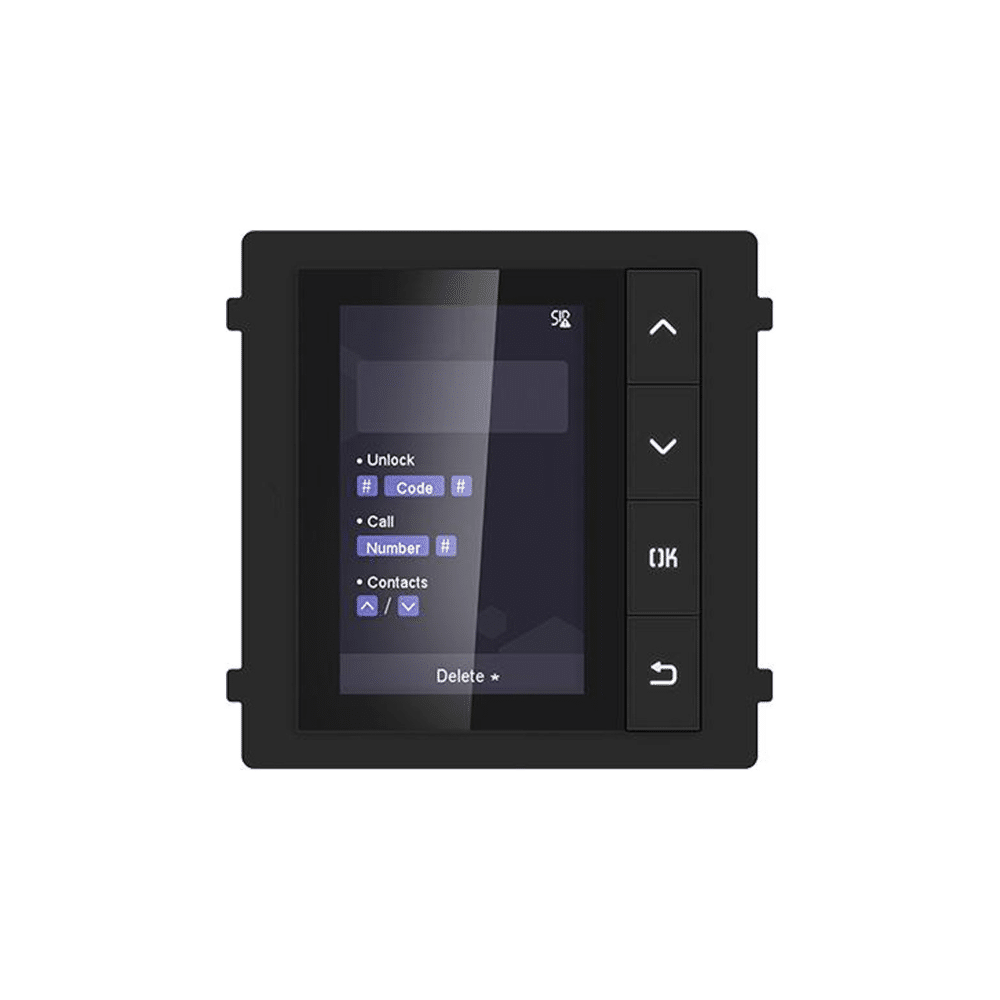

Hikvision DS-KD-DIS 3.5″ LCD Screen Generation 2 IP Video Intercom Display Module – IP65 Weatherproof – Displays Contacts
SKU: DS-KD-DIS
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: Display, Hikvision, Intercom, IP65 Rated, Network, Video Intercom, Weatherproof
Hikvision DS-KD-DIS 3.5″ LCD Screen Generation 2 IP Video Intercom Display Module – IP65 Weatherproof – Displays Contacts
Features :-
- 3.5-inch LCD with 320 x 480 p resolution
- 4 physical buttons with back-light
- Up to 2,000 contacts can be added to the device
- Stores and searches contact list
- Dials number and calls indoor station with keypad module
- Multiple languages
- Processor: embedded MCU processor
- Storage: 64MB
- Power input and output: 12VDC
- Power consumption: less than 3W
- Operating temperature: -20 to 60 degrees Celsius
- IP65
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
General
- Power Consumption: ≤ 3 W
- Working Temperature: -20° C to +60° C (-4° F to 140° F)
- Working Humidity: 10% to 95%
- Input Voltage: 12VDC ( From the other module)
- Output Power: 12VDC ( For the other module)
- IP Protection Level: IP65
- Memory: 64 MB
- Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87″ × 3.95″ × 1.33″)
Device Interfaces
- Button: 4 ( Up, Down, OK, Back)
Display Parameters
- Display Screen: 3.5-inch TFT LCD screen
- Display Resolution: 320 × 480 p
- Operation Method: Physical buttons
System Parameters
- Processor: Embedded MCU Processor
