Hikvision DS-KH6320Y-WTPE2

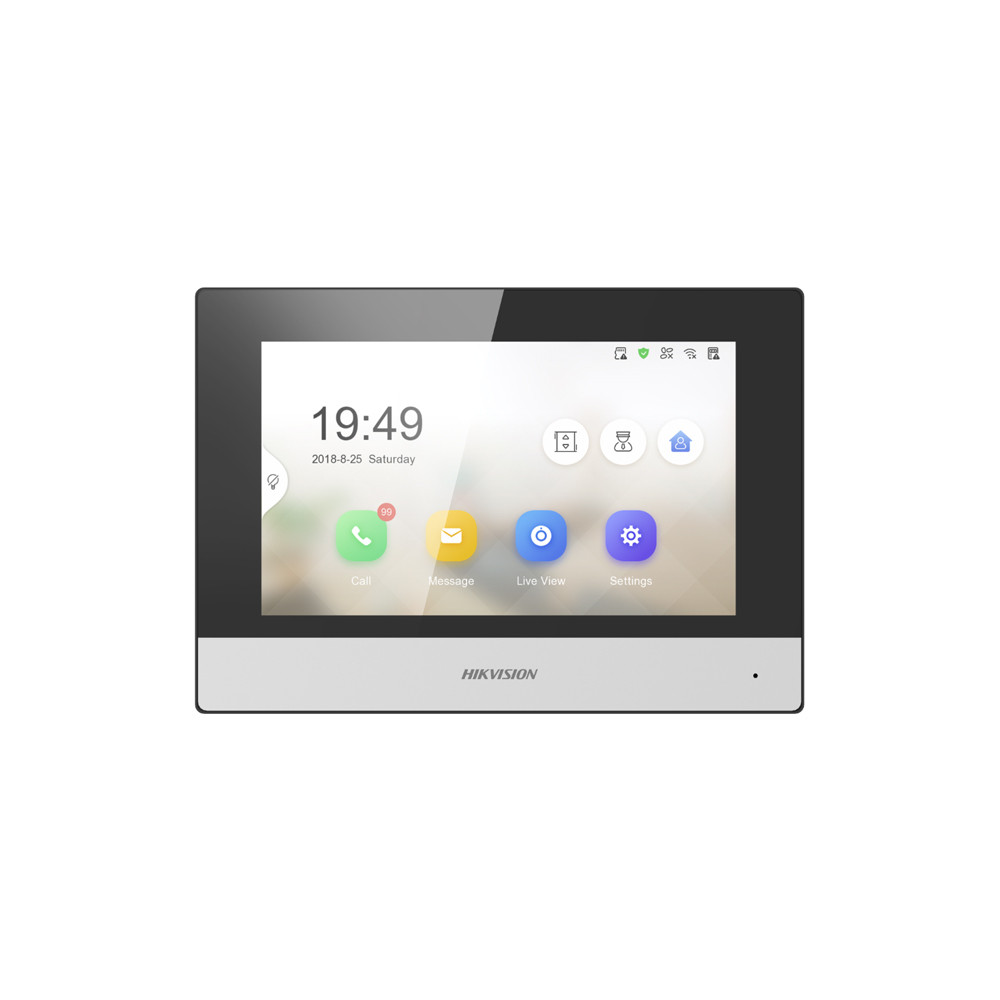

Hikvision DS-KH6320Y-WTPE2 Y-Series 2-Wire IP Video Intercom Indoor Touchscreen Display Monitor – 7″ (7-Inch) Size – Built-in WiFi – Black & Silver Frame
SKU: DS-KH6320Y-WTPE2
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: 2-Wire, 2.4GHz Wireless, 7 inch, Black, Display, Gate Automation, Gate Control, Hikvision, Intercom, Monitor, Network, Touchscreen, Video Intercom, WiFi, Wireless
Key Features :-
- 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door, and live view remotely
- Easy to use without a PC
- Easy wizard for quick setup
- Configure the whole system on one touchscreen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Hikvision Intercom Online Designer Tool
Note * Please use this monitor only with DS-KV8103Y-IMPE2 2-wire Outdoor Station Unit
System Parameters
- Operation System: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embedded processor
Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen
- Type: TFT
- Resolution: 1024 × 600
Video Parameters
- Lens: /
- Resolution: /
- FOV: /
- Wide Dynamic Range (WDR): /
- Video Compression Standard: /
- Focal Length: /
Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Compression Standard: G.711 U G.711 A
- Audio Output: Buit-in loudspeaker
- Audio Compression Bitrate: 64 Kps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Message Capacity: 200 captured pictures (with TF card); 200 alarm records; 2 MB RAM (without TF card) reserved for events
- Notice Capacity: 200
- Linked Network Camera Capacity: 16
- Linked Indoor Extensions Capacity: 16
- Linked Doorphone Capacity: 17 IP doorphones Max.
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
Device Interfaces
- Alarm Input: 8-ch alarm inputs
- TAMPER: /
- RS-485: 1
- USB: /
- TF Card: Max to 128 G, SD 2.0 or lower version
- Alarm Output: 2 relays (30 V Max.)
- Lock Control: 2 relays, Max. to 30 VDC, 0.3 A
- Two-Wire IP Interface: 1
General
- Button: /
- Installation: Surface mounting
- Indicator: /
- Weight: Net weight:0.325 kg; Gross weight: 0.650 kg
- Protective Level: /
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 200 mm × 140 mm × 23.6 mm (7.87″ × 5.51″ × 0.93″)
- Battery: /
- Power Supply: Powered by KAD704Y or KAD706Y series distributor
- Application Environment: Indoor
- Power Consumption: ≤ 4 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
