Hikvision DS-PDHT-E-WB

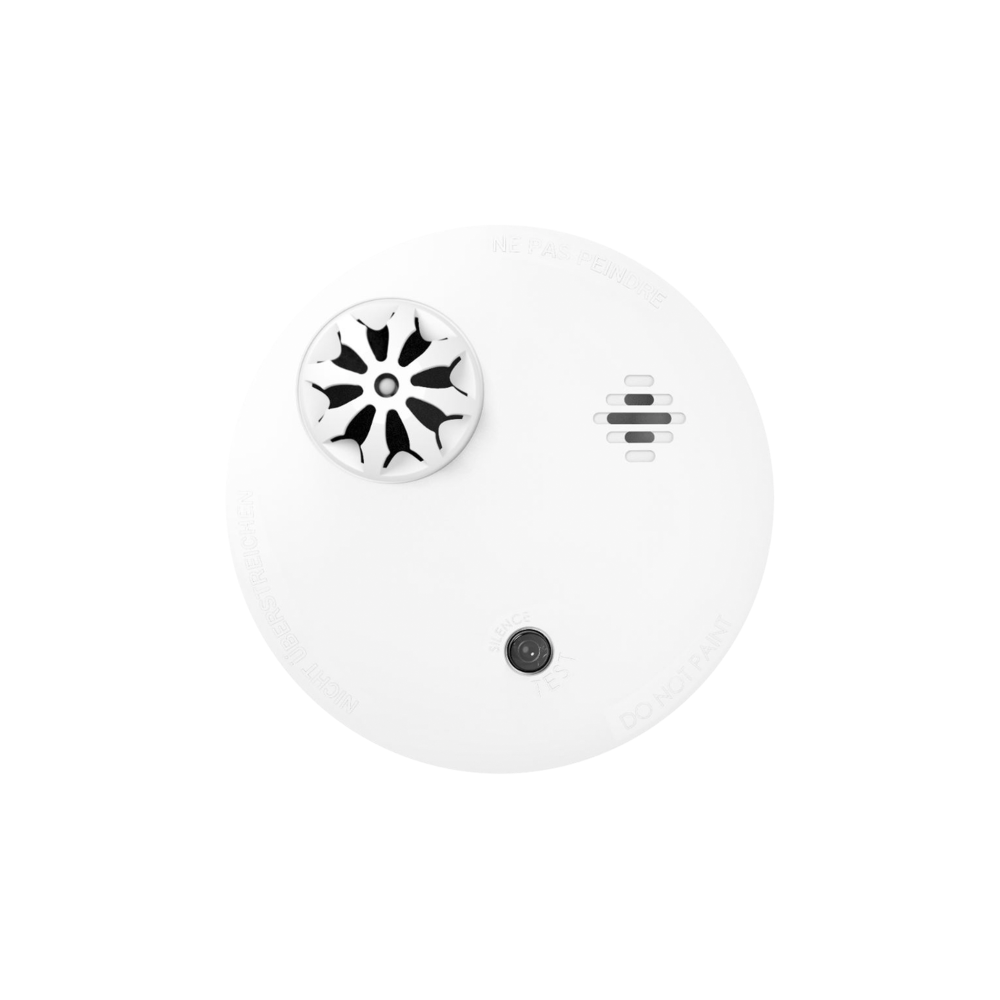

Hikvision DS-PDHT-E-WB 433MHz Battery-Powered AX Pro Wireless Indoor Heat Detector – Works with AX Pro Alarm Hub
SKU: DS-PDHT-E-WB
Categories: Fire Alarm, Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms
Tags: 433MHz Wireless, Alarm, AX Pro, Battery-Powered, Heat Detector, Hikvision, Interconnectable, Wireless
Hikvision DS-PDHT-E-WB 433MHz Battery-Powered AX Pro Wireless Indoor Heat Detector – Works with AX Pro Alarm Hub
Key Features:-
- Triggers when ambient temperature exceeds 57℃
- 10 year battery life
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Upgrade Firmware using Hik-connect app (for consumers)
Hikvision Product-Link
Detection Performance
- Detection Method: Temperature Sensor
Feature
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Self-health Check: Support
- Alarm Sound Interlink: Support
Interface
- Power Switch: Power Up Enrolling
- LED Indicator: Red (Alarm)
- Buzzer: ≥ 85dB @ 3 m
Transmission
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1Km
- Enrolling Method: Power up; Remote ID; QR Code
Electrical Characteristics
- Standard Battery Life: 10 years for standalone sensor; 5 years for RF wireless
- Power Supply: Battery Powered
- Battery Type: Non Replaceable Energizer L91 x 2 for Sensor; Replaceable CR123A x 1 for RF Wireless
- Typical Voltage: 3V
General
- Operation Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 5% to 90%
- Dimension (W x H x D): φ120 × 52.5mm
- Weight: 179.5g
- Mounting Method: Ceiling
- Application Scenario: Indoor
