Hikvision DS-PDMCK-EG2-WB

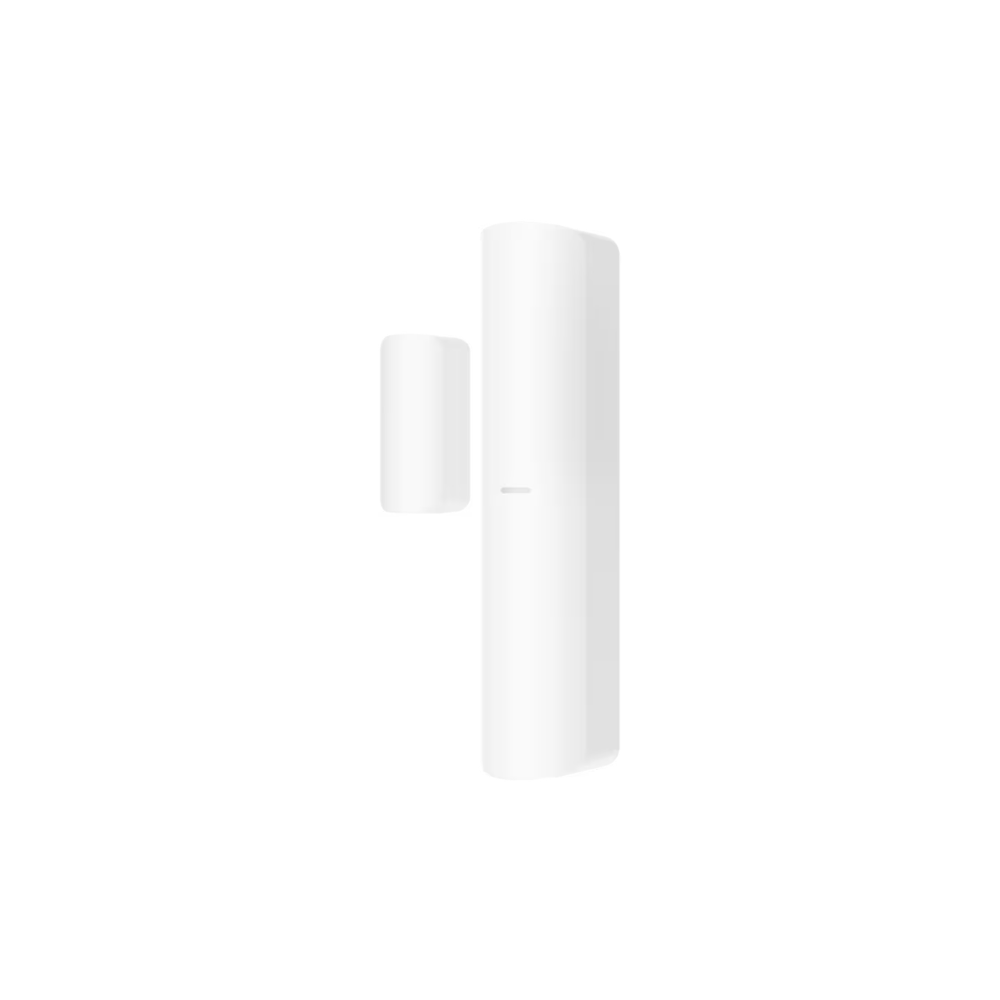

Hikvision DS-PDMCK-EG2-WB 433MHz Battery-Operated Indoor Wireless Magnetic Shock Detector – White Colour – To Work with AX Pro Hub
SKU: DS-PDMCK-EG2-WB
Categories: Intrusion & Alarms, Wireless Alarm Sirens, Wireless Alarms
Tags: 433MHz Wireless, AX Pro, Battery-Powered, Black, Hikvision, Shock Detector, Wireless
Hikvision DS-PDMCK-EG2-WB 433MHz Battery-Operated Indoor Wireless Magnetic Shock Detector – White Colour – To Work with AX Pro Hub
Key Features :-
- Magnetic contact combined with shock and tilt detection
- 2 wired inputs extension
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Detection Performance
- Detection Method: Opening Contact; Shock Sensor
- Detection Gap: 43mm Max
- Sensitivity: Shock Detection: High, Normal, Low
- Tilt Detection: Up to 25°
Feature
- Digital Processing: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Alarm Input: Normally Closed; Normally Open; Impulse Count
- Power Switch: Power Up Enrolling
- LED Indicator: Green(MC), Orange(tilt), Red(shock), Blue(alarm)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1Km
- Frequency Hopping: Support
- Enrolling Method: Power up; Remote ID; QR Code
Electrical Characteristics
- Standard Battery Life: Up to 3 years (standby time)
- Power Supply: Battery Powered
- Battery Type: CR123A x 1
- Typical Voltage: 3V
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 22.5mm × 103mm × 23.2mm; 13mm × 34.4mm × 11.4mm
- Weight: 60g
- Application Scenario: Indoor
