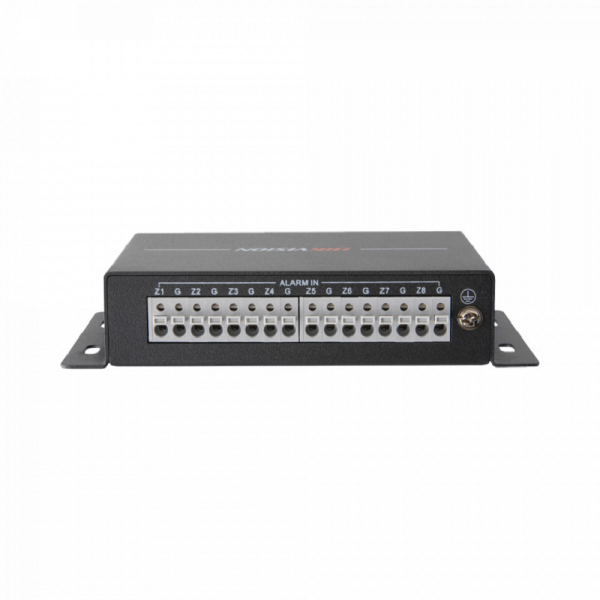

Hikvision DS-PM-RSI8
Hikvision DS-PM-RSI8 RS-485 8-Input Wired Alarm / Intrusion Expander for Gen1 AX Hybrid Alarms
SKU: DS-PM-RSI8
Categories: Intrusion & Alarms, Wired Alarm Expanders & Receivers, Wired Alarms
Tags: 8-Channel, Alarm, Hikvision, Zone Expander
Hikvision DS-PM-RSI8 RS-485 8-Input Wired Alarm / Intrusion Expander for Gen1 AX Hybrid Alarms
Features :-
- 8 Input Expander.
- Supports Tamper Alarm.
- It is supervised by of end-of-line resistors.
- Working Temperature: -10°C to 55°C.
- Dimension: 132.5 x 74 x 28 mm.
- Weight: Less than 1 Kg.
Hardware Features
- Alarm Input: 8ch, configurable value and sensitivity of resistance, supports tampering alarm
- Indicator: 3 Red/Green LED: communication, status, running
Electrical Characteristics
- Power Supply: 12V
- Power Consumption: ≤2W
General
- Operation Temperature: -10℃ ~ +55℃
- Operation Humidity: 10%～90%
- Dimension(WxHxD): 132.5mm x 74mm x 28mm
- <1kg
