Intrusion & Alarms, Wired Alarm Expanders & Receivers

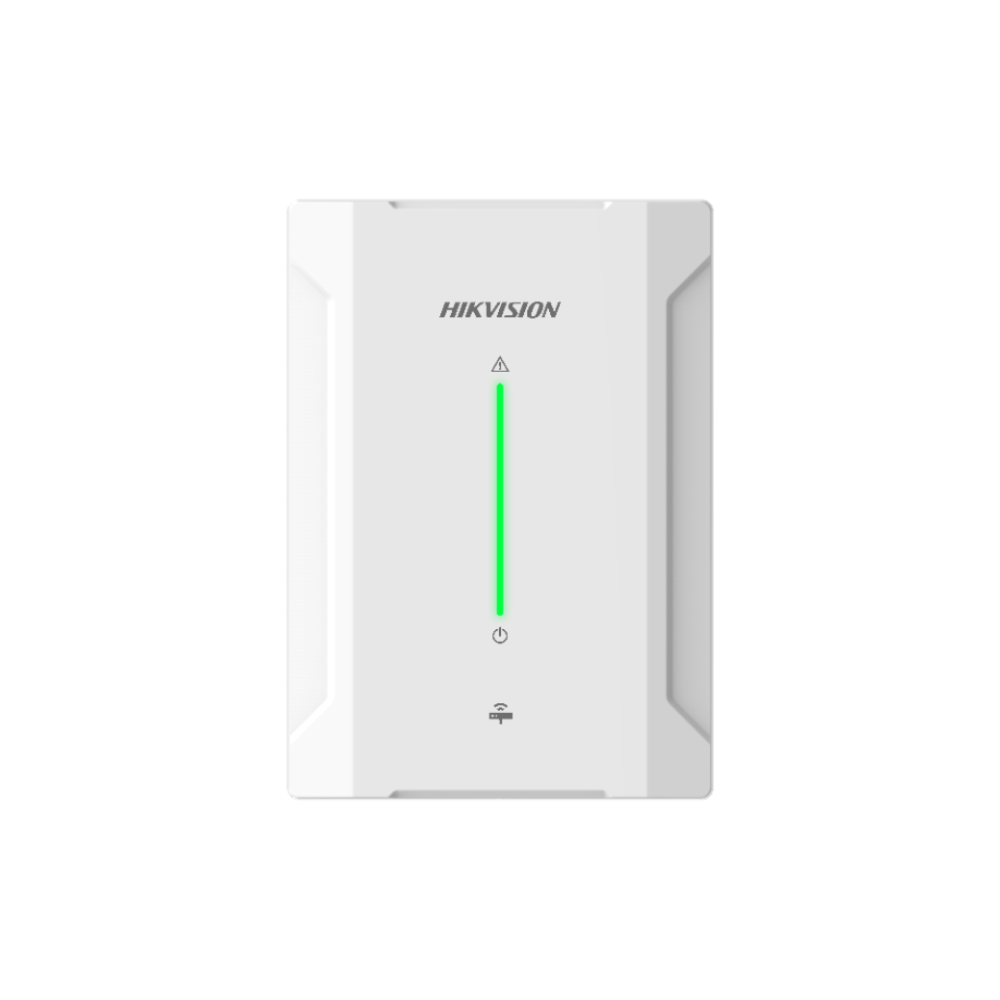

Hikvision DS-PM1-RT-HWB
Hikvision DS-PM1-RT-HWB AX Hybrid Pro Gen2 433MHz Wireless DC-Powered Tri-X Wireless Receiver – Supports 32 Wireless Detectors, 4 Wireless Indoor Sounders and 8 Wireless Outdoor Sounders
SKU: DS-PM1-RT-HWB
Categories: Intrusion & Alarms, Wired Alarm Expanders & Receivers
Tags: 433MHz Wireless, Alarm, AX Hybrid Pro, Hikvision, Receiver, Wireless
Hikvision DS-PM1-RT-HWB AX Hybrid Pro Gen2 433MHz Wireless DC-Powered Tri-X Wireless Receiver – Supports 32 Wireless Detectors, 4 Wireless Indoor Sounders and 8 Wireless Outdoor Sounders
Key Features :-
- Wired connection to AX-Hybrid-Pro DS-PHA64-LP alarm panel to support Hikvision wireless alarm devices
- 433MHz wireless receiver
- Wireless transmission distance up to 1300m
- Supports 32 wireless detectors, 4 wireless indoor sounders and 8 wireless outdoor sounders
Software features
- Compatibility list
- DS-PS1-I-WB
- DS-PS1-E-WB
- DS-PM1-O1L-WB
- DS-PM1-O1H-WB
- DS-PDP15P-EG2-WB
- DS-PDC15-EG2-WB
- DS-PDD12P-EG2-WB
- DS-PDMC-EG2-WB
- DS-PDMCS-EG2-WB
- DS-PDEB1-EG2-WB
- DS-PDEBP1-EG2-WB
- DS-PDWL-E-WB
- DS-PDPG12P-EG2-WB
- DS-PDMCK-EG2-WB
- DS-PDTPH-E-WB
- DS-PDCL12-EG2-WB
- DS-PDC10AM-EG2-WB
- DS-PDC10DM-EGW-WB
Hardware features
- Bus: 1 Speed-X bus
Electrical characteristics
- Power supply: 9 to 24 VDC
- Typical voltage: 12 VDC
- Power consumption: Maximum current: 100 mA @ 12VDC; Quiescent current: 40 mA @ 12VDC
Wireless transmission
- RF frequency: 433 MHz
- Wireless security: Frequency hoping 128 AES encryption
Display
- LED Indicator: 1. Green: power/find me 2. Orange: alarm/fault
General
- Dimension (WxHxD): 110 mm × 155 mm × 32 mm
- Shell material: Plastic
- Weight: 233 g
- Operation temperature: -10°C to 40°C
- Operation humidity: 10% to 90%
Device management
- Alarm input: Up to 32 wireless detectors(portable emergency button is not included)
- Wireless sounder: Up to 8 wireless indoor sounder, 4 wireless outdoor sounder
