Hikvision iDS-7204HUHI-M1/S-4TB AcuSense Pro-Series 4K H265 4-Channel Turbo-HD Pentabrid (HDTVI / AHD / HDCVI / CVBS / IP) DVR – With 4TB Storage HDD

Hikvision iDS-7204HUHI-M1/S-4TB AcuSense Pro-Series 4K H265 4-Channel Turbo-HD Pentabrid (HDTVI / AHD / HDCVI / CVBS / IP) DVR – With 4TB Storage HDD

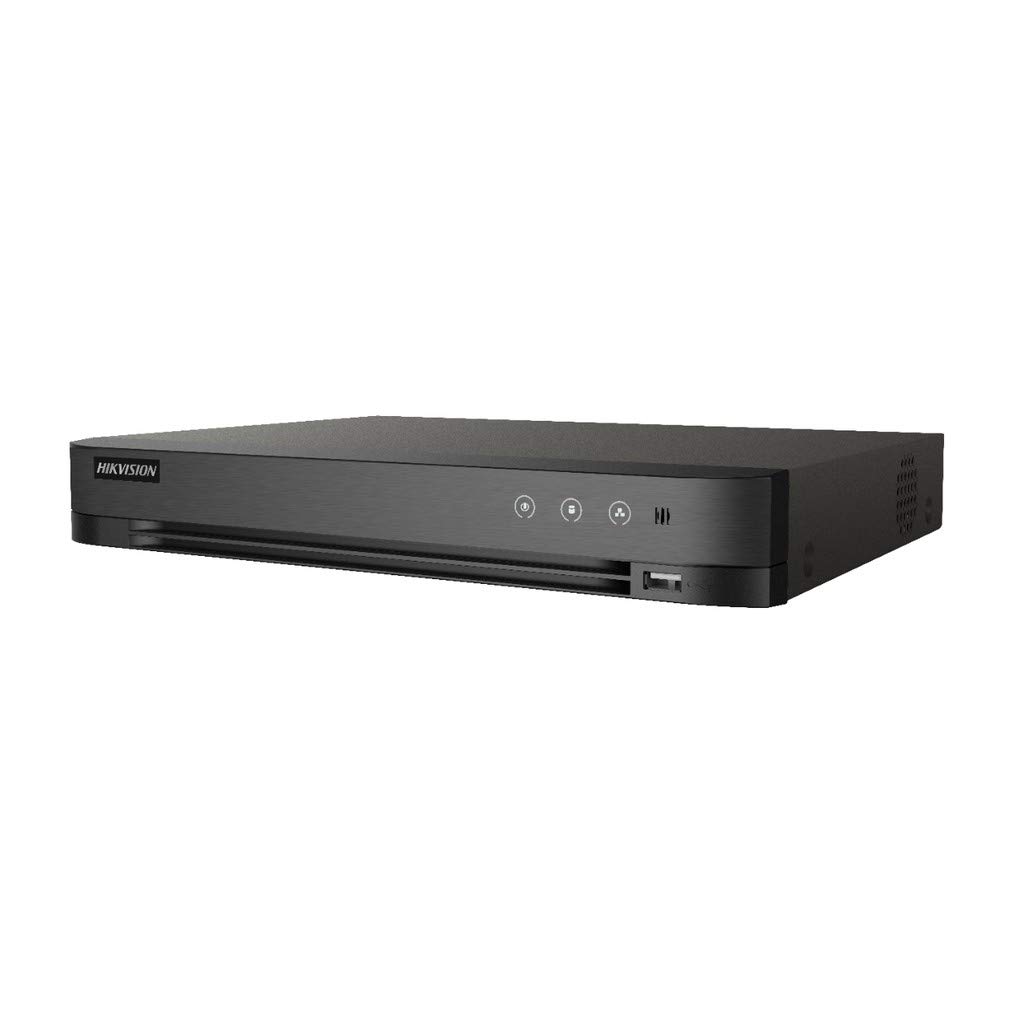

4 channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 8MP lite @ 15 fps, 5MP @ 12 fps
5 signals input adaptively (HDTVI / AHD / CVI / CVBS / IP)
Up to 8 network cameras can be connected

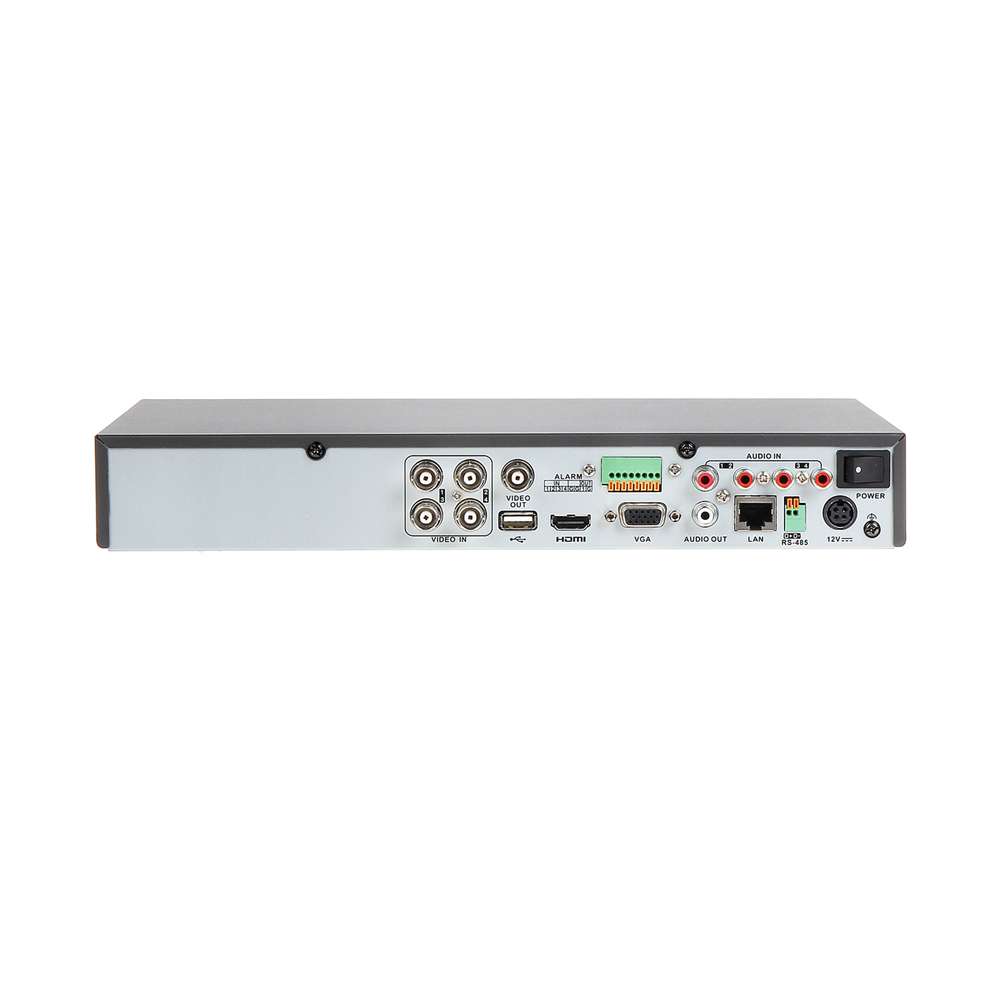

Hardware characteristics :-
- - - 1 x VGA port (max. 1080P resolution)
    - 1 x HDMI port (max. 2K resolution) – Same display output on HDMI as VGA
    - 1 x CVBS output
    - 1 x 3.5″ SATA HDD port (max. 10TB HDD per port)
    - 2 x USB ports (one front, two rear)
    - 1 x RS-485 port
    - 4 x BNC inputs (to support Analogue / HDTVI / HDCVI / AHD cameras)* – Check specifications for resolution support
    - 1 x LAN port (10/100Mbps)
    - No Alarm input ports
    - No Alarm output ports
    - 1 x Audio RCA input port
    - 1 x Audio RCA output port

Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution: 8MP / 5MP / 3K / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate:
- Main stream: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 8MP Lite @ 15 fps / 3MP @ 18 fps
  1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) – *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
- Sub-stream: WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

IP Video Input: 2-ch (up to 6-ch) – Up to 8MP resolution; Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps; Supports H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input: 4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output: HDMI: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA: simultaneous output
CVBS Input: PAL/NTSC
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback: 4-ch
HDTVI Input: 8MP (3840 × 2160) @ 15 fps, 8MP (3840 × 2160) @ 12 fps, 3K (2960 x 1665) @ 20 fps, 5MP (2560 × 1944) @ 20 fps, 5MP (2560 × 1944) @ 12 fps, 4MP (2560 × 1440) @ 30 fps, 4MP (2560 × 1440) @ 25 fps, 3MP @ 18 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
AHD Input: 5MP (2560 × 1944) @ 20 fps, 5MP (2560 × 1944) @ 12 fps, 4MP (2560 × 1440) @ 30 fps, 4MP (2560 × 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
HDCVI Input: 8MP (3840 × 2160) @ 15 fps, 8MP (3840 × 2160) @ 12 fps, 5MP (2592 × 1944) @ 20 fps, 4MP (2560 × 1440) @ 30 fps, 4MP (2560 × 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Total Bandwidth: 96Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection: 32
Network Interface: 1* RJ45 10M/100M self-adaptive Ethernet interface
