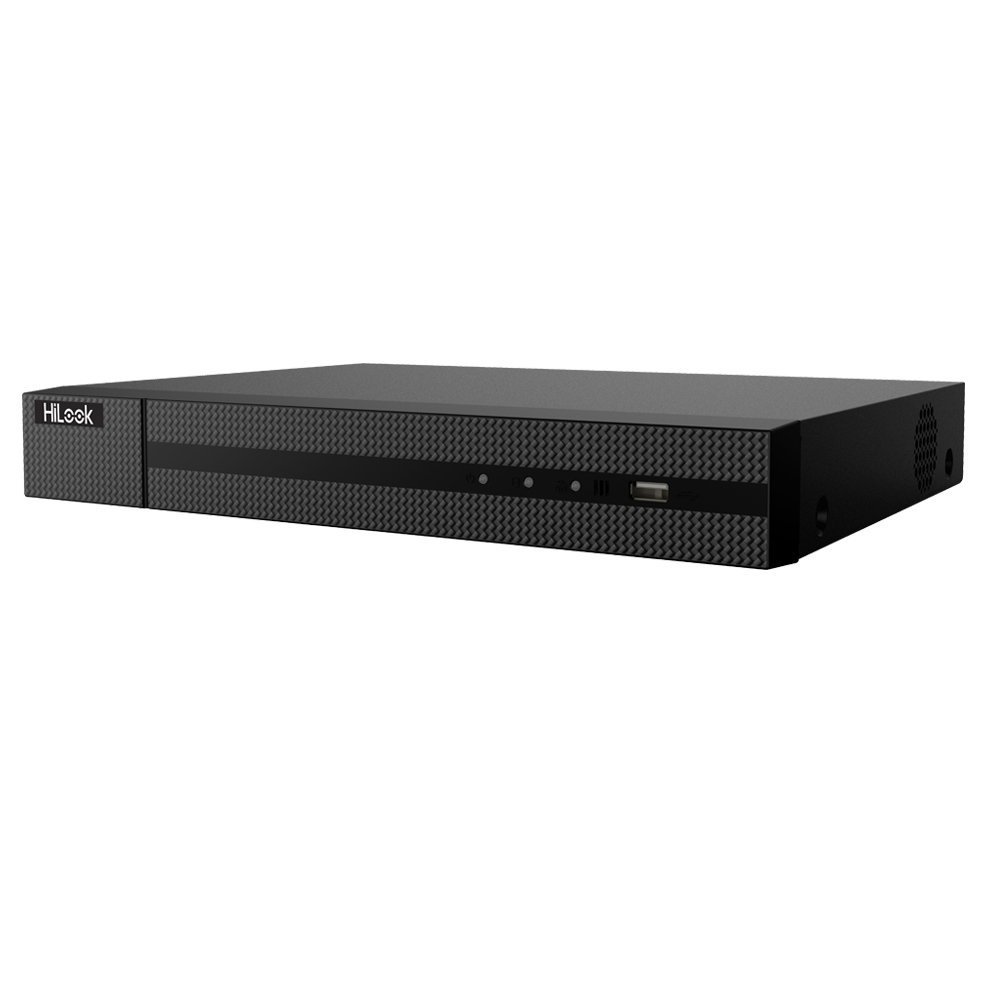

HiLook DVR-216U-M2

Name: HiLook DVR-216U-M2
SKU: DVR-216U-M2

HiLook DVR-216U-M2 4K H265 16-Channel Deep Learning Turbo-HD Pentabrid (HDTVI / HDCVI / AHD / IP / Analogue) 1U DVR

This product is currently unavailable.

HiLook DVR-216U-M2 4K H265 16-Channel Deep Learning Turbo-HD Pentabrid (HDTVI / HDCVI / AHD / IP / Analogue) 1U DVR

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+ / H.265 Pro / H.265 video compression
HDTVI / AHD / CVI / CVBS / IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8MP)
Up to 8MP @ 8fps encoding capability
Hardware characteristics :-
- - - 1 x VGA port (max. 1080P resolution)
    - 1 x HDMI port (max. 4K resolution) – Same display output on HDMI as VGA
    - 2 x 3.5″ SATA HDD ports (max. 10TB HDD per port)
    - 2 x USB ports (one front, two rear)
    - 16 x BNC inputs (to support Analogue / HDTVI / HDCVI / AHD cameras)* – Check speecifications for resolution support
    - 1 x LAN port (10/100/1000Mbps)
    - No Alarm input ports
    - No Alarm output ports
    - 1 x Audio RCA input port
    - 1 x Audio RCA output port

Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported;

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8MP / 5MP / 3K / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate:
- Main stream: 8 MP @ 8fps / 3K @ 12fps / 5MP @ 12fps / 4MP @ 15fps / 3MP @ 18fps,1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25fps (P) / 30 fps (N)
- Sub-stream: WD1 / 4CIF / CIF @ 25fps (P) / 30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

IP Video Input
- 8-ch (up to 24-ch)
- Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps @ Up to 8 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch – BNC interface (1.0 Vp-p, 75 Ω), supporting Coaxitron connection
HDTVI Input: 8MP @ 15fps, 8MP @ 12.5fps, 3K @ 20fps, 5MP @ 20fps, 5 MP @ 12fps, 4 MP @ 30fps, 4MP @ 25fps, 3MP @ 18fps, 1080p @ 30fps, 1080p @ 25fps, 720p @ 60fps, 720p @ 50fps, 720p @ 30fps, 720p @ 25fps
AHD Input: 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 1080p @ 25fps, 1080p @ 30fps, 720p @ 25fps, 720p @ 30fps
HDCVI Input: 4MP @ 25fps, 4MP @ 30fps, 1080p @ 25fps, 1080p @ 30fps, 720p @ 25fps, 720p @ 30fps
CVBS Input: PAL/NTSC
HDMI Output: 1-ch, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ); 16-ch via coaxial cable
Video Output Mode: HDMI / VGA simultaneous output
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback: 16-ch

Total Bandwidth: 128 Mbps
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
