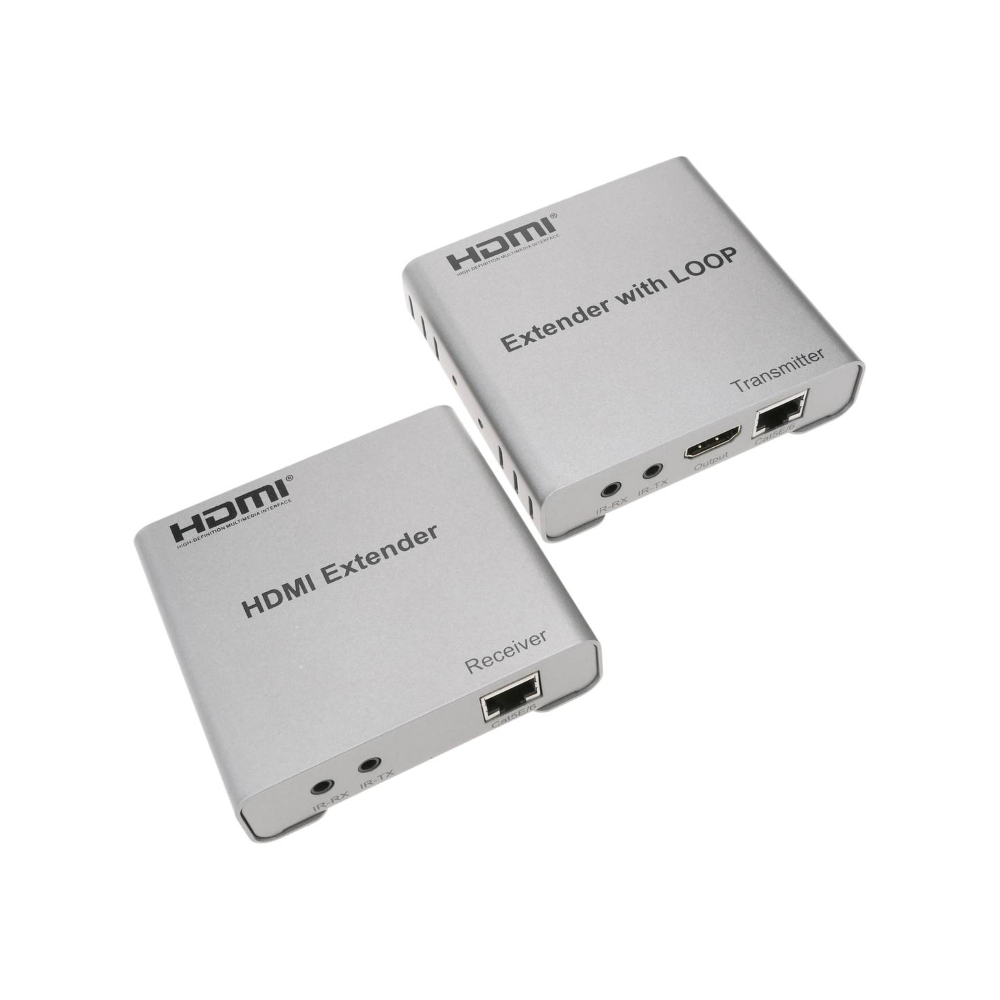

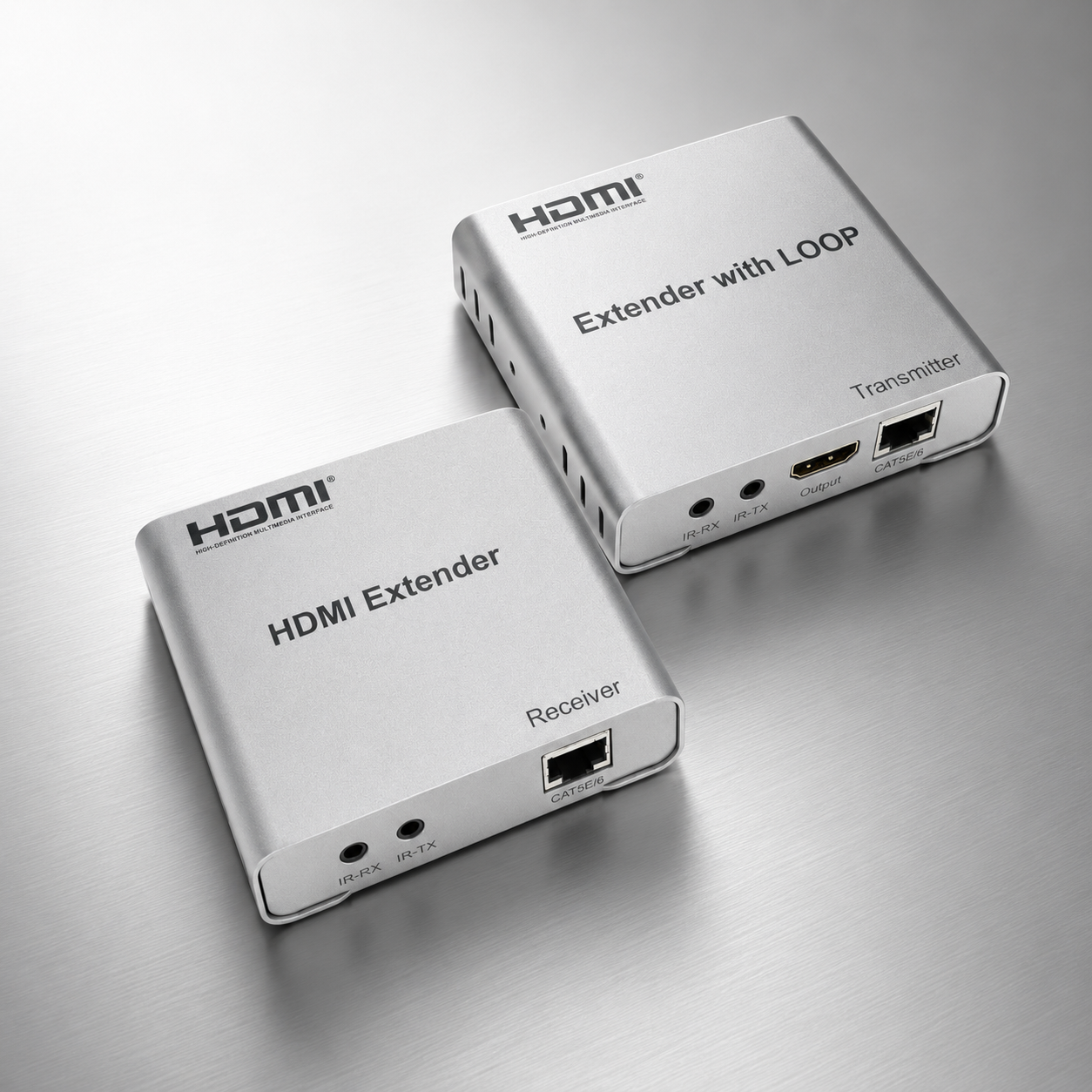

iSecure ICL-HDMI100-LOOP
iSecure ICL-HDMI100-LOOP 4K HDMI Over CAT5/6 Extender Set – Comes with Transmitter + Receiver – Supports Loop Out – 4K Resolution – 100m Distance
iSecure ICL-HDMI100-LOOP 4K HDMI Over CAT5/6 Extender Set – Comes with Transmitter + Receiver – Supports Loop Out – 4K Resolution – 100m Distance
Features :-
- Brand Name: iSecure
- Model Number: ICL-HDMI100-LOOP
- Place of Origin: China
- Case: silver metal
- Input: HDMI signal
- Output: HDMI signal
- Warranty: 2 years
- Volume: 81 x 87.5 x 23.5 (mm)
- Function: Extend the HDMI signal for up to 100m.
- HDMI Protocol: HDMI 1.4
- Power Supply: DC5V/1A
Specifications :-

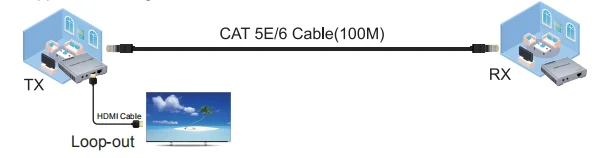

Length of CAT5e/CAT6 cable between Rx and TX ………………………………………..Up to 100 meters
HDMI Input ……………………………………………………………………4k/1080p/720p/576p/576i/480p/480i
HDMI Output ………………………………………………………..4k/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth ……………………………………………………………………………………………………..340MHz
Max baud rate …………………………………………………………………………………………………..3×3.4Gbps
Input video signal ……………………………………………………………………………………….0.5~1.5Volts p-p
Output DDC signal…………………………………………………………………………………….. 5Volts p-p (TTL)
Input HDMI cable distance ………………………………………………≤10m AWG26 HDMI standard cable
Output HDMI cable distance…………………………………………… ≤10m AWG26 HDMI standard cable
TX Max working current………………………………………………………………………………………….. 350mA
RX Max working current …………………………………………………………………………………………..200mA
Power adapter format …………………………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range………………………………………………………………………… (-15 to +55℃)
Operating Humidity range ……………………………………………………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………………………………………………………81×87.5×23.5 (mm)
TX Weight …………………………………………………………………………………………………………………210g
RX Weight …………………………………………………………………………………………………………………200g

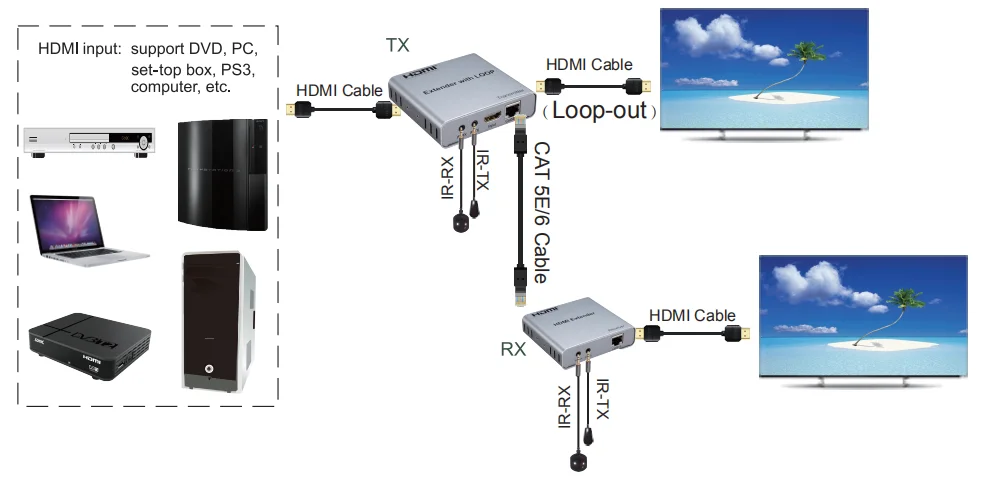

CONNECTION AND OPERATION
PACKAGE CONTENTS
1. TX Extender 1PCS
2. RX Extender 1PCS
3. IR cable 2 Pair
4. 5V/1A DC Power adapter 2PCS
5. User Manual 1PCS
