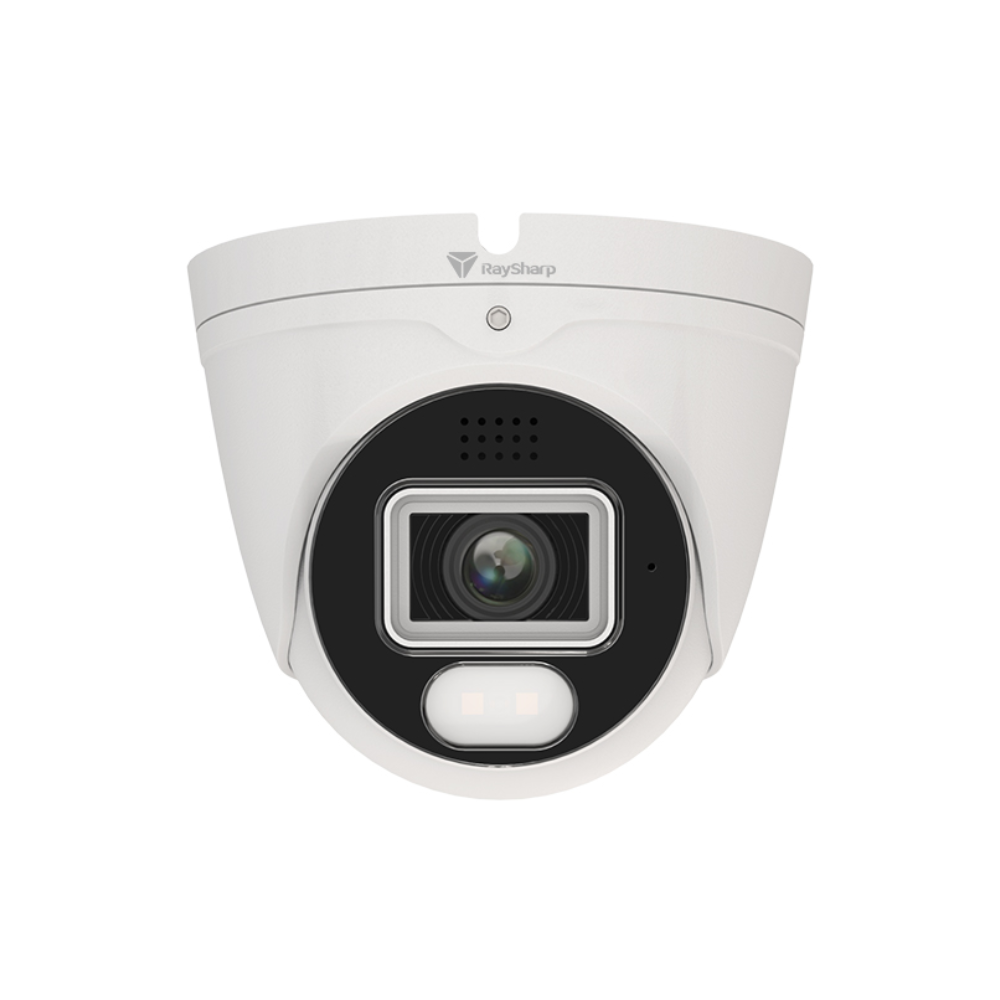

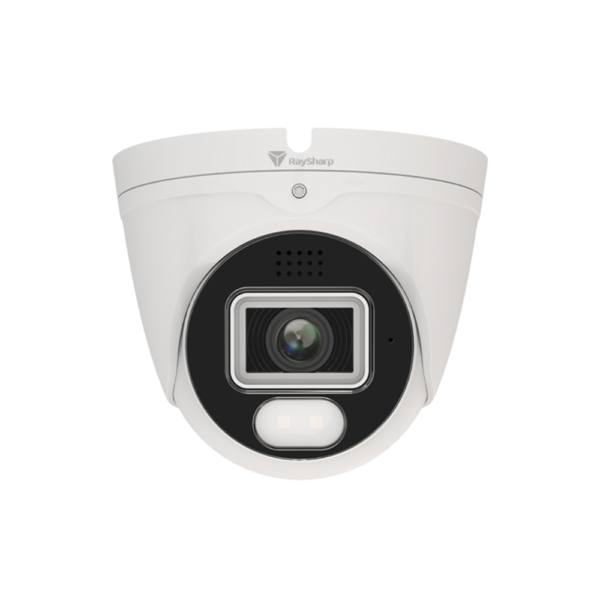

Raysharp RS-CH341A4MIG-HALTF-LFW36PW
Raysharp RS-CH341A4MIG-HALTF-LFW36PW Ultra Low Light Series 4K 8MP PoE IP White-Light (20m) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 3.6mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrencce Features
SKU: RS-CH341A4MIG-HALTF-LFW36PW
Categories: CCTV / Surveillance, Clearance, IP Cameras, IP Face Recognition Cameras, IP Surveillance, IP Turret Cameras, Special Offers
Tags: 120dB True-WDR, 2-Way Audio, 4K, 8MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Face Recognition, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, Network, PoE, Pro Series, Raysharp, Smart Dual Light, Speaker, Turret, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH341A4MIG-HALTF-LFW36PW Ultra Low Light Series 4K 8MP PoE IP White-Light (20m) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 3.6mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/1.8″
- Effective Pixels: 8MP – 3840 (H) × 2160 (V)
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: 3.6 mm @ F1.0
- Angular Field of View: Horizontal: 96°, Vertical: 51°, Diagonal:115°
- WarmLight Viewable Length: Up to 20m
- Audio: 2-way – Built-in microphone & Speaker
- Alarm: Red & Blue flashing lights
- Wide Dynamic Range: WDR
- Image Setting: Full Color Mode
- Alarm: Built-in red & blue flashing lights
- Smart Feature: Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
- Ingress Protection: IP67
- Operating Conditions: -35～+60°C / less than ≤ 95% RH
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH394A2MIG-HALTF-LFW36PW | RS-CH341A4MIG-HALTF-LFW36PW |
| Imaging Device | 1/1.8″ | |
| Effective Pixels | 4MP 2688(H)×1520(V) | 8MP 3840(H)×2160(V) |
| Min. Illumination | Color 0.0005 Lux @（F1.0，AGC ON） ; B/W 0 lux @ IR ON | Color 0.0007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio)/Max. Aperture Ratio | 3.6 mm/F No. 1.0 | |
| Angular Field of View | Horizontal:96°, Vertical: 51°, Diagonal:115° | |
| Min. Object Distance | 0.2m | |
| Lens Type | Fixed(M16/F1.0) | |
| IR LED | NA | |
| WarmLight | 2 | |
| Red Blue Light | 2（1 Red&1 Blue） | |
| IR Viewable Length/WarmLight Viewable Length | Up to 20m | |
| Wide Dynamic Range | WDR | |
| Image Setting | Full Color Mode | |
| White Balance | Auto/Manual | |
| Electronic Shutter Speed | 1/5 ~ 1/20000s | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| Audio | Built-in microphone&Speaker | |
| Hardware Reset | Yes | |
| Smart Feature | Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate , Rare Sound, Intrusion, Region Entrance, Region Exiting | |
| Ethernet | RJ45(10/100BASE-T) | |
| Video Compression Format | H.265/H.265+/H.264/H.264+/MJPEG | |
| Resolution | Mainstream 4MP(2688×1520),3MP(2304×1296), 1080P(1920×1080) Substeam 1080P(1920×1080),720P(1280×720), VGA(640×480) Mobilestream VGA(640×480), QVGA（320×240） |
Main Stream 8MP(3840×2160), 5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296), 1080P(1920×1080) Sub Steam 1080P(1920×1080),720P(1280×720), VGA(640×480) Mobile Stream VGA(640×480), QVGA（320×240） |
| Video Quality Ajustment | 256Kbps ~ 8Mbps | 256Kbps ~ 16Mbps |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
|
| Application Programming Interface | ONVIF( Profile S/G/T) | |
| Operating Conditions | -35～+60°C/less than ≤ 90% RH | |
| Ingress Protection | IP67 | |
| Power | DC12V: max.4.3W, PoE: max.5.4W |
DC12V: max.7.1W, PoE: max.8.3W |
| Mechanical | Metal | |
