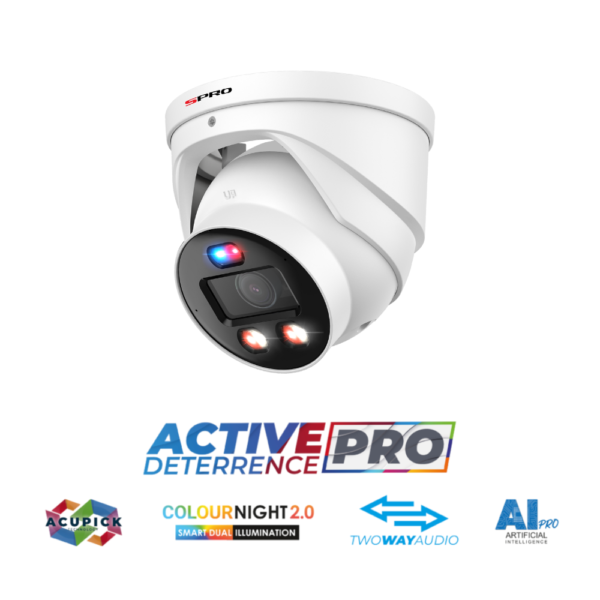

SPRO DHIPD80/28LRW/30-D-V5
SPRO DHIPD80/28LRW/30-D-V5 AI Pro SMD 4.0 TiOC H265 4K 8MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Eyeball Network Turret Camera with 2.8mm Fixed Lens – Active-deterrence Features -> Built-in Audio Mic+ Speaker + Strobe + Siren
SKU: DHIPD80/28LRW/30-D-V5
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 2-Way Audio, 4K, 8MP, AcuPick, AI Pro, Built-in Mic, Camera, ColourNight 2.0, DMSS, Eyeball, Fixed Lens, Full Colour, H265, Human Detection, Infrared, IP, IP67 Rated, IR, Network, Perimeter Protection, PoE, Siren, Smart Dual Light, SmartPSS Lite, SMD Plus, Speaker, SPRO, Strobe, TiOC, Turret, Vehicle Detection, Weatherproof, White Light LED
SPRO DHIPD80/28LRW/30-D-V5 AI Pro SMD 4.0 TiOC H265 4K 8MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Eyeball Network Turret Camera with 2.8mm Fixed Lens – Active-deterrence Features -> Built-in Audio Mic+ Speaker + Strobe + Siren
Key Features :-
- 8MP 1/1.8″ CMOS larger sensor
- 8MP (3840 ×2160) at 25/30 frames per second
- Infrared range (IR): 30m; Warm light range: 30m
- SMART H.264+ / H.265+, AI H.264 / H.265
- Perimeter Protection (Human and Vehicle Classification)
- Alarm: 1 input, 1 output; audio: 1 input, 1 output
- Supports up to 512 GB Micro SD card
- Two-way-Audio
- 12VDC / PoE power supply
- IP67 rated
- Red and blue flashing lights
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPD80/28LRW/30-D-V5 |
| Image Sensor | 1/1.8″ CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 Lux @ F1.0 (Colour, 30IRE) 0.0004 Lux @ F1.0 (B/W, 30IRE) 0 lux (Illuminator on) |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 2 (Multi-core (IR + warm light) |
| Pan/ Tilt/ Rotation Range | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed focal |
| Mount Type | M16 |
| Focal Length | 2.8mm |
| Field of View | H: 109°; V: 59°; D: 131° |
| Iris Type | Fixed |
| Max Aperture | F1.0 |
| Close Focus Distance | 2.1 m (6.89 ft) |
| DORI Distance | Detect: 82.0 m (269.03 ft) Observe: 32.8 m (107.64 ft) Recognize: 16.4 m (53.81 ft) Identify: 8.2 m (26.90 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of Humans and Vehicles) |
| SMD 4.0 | Less false alarm, longer detection distance. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160 @ (1 fps–25/30 fps) Sub stream: 1920 × 1080 @ (1–25/30 fps) Third stream: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 Streams |
| Resolution | 8MP (3840 × 2160); 6MP (3200 × 1800); 5MP (3072 × 1728); 4MP (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR / ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Day/Night | Auto (ICR) / Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in dual Speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS;802.1x;Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| Max. User Access | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Web Viewer | IE: IE11; Chrome ; Firefox |
| Management Software | Smart PSS Lite; DMSS |
| Smart Phone | iOS; Android |
| Certification | |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC; PoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1 W (12 VDC); 6 W (PoE) Max. (H.265+WDR+ warm light + siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 116.1 mm (4.80″ × Φ4.57″) |
| Net weight | 0.8 kg (1.76 lb) |
| Gross Weight | 1.0 kg (2.20 lb) |
